SEA-DOO GSX Limited 5625 GSX Limited 5625 07- Steering System

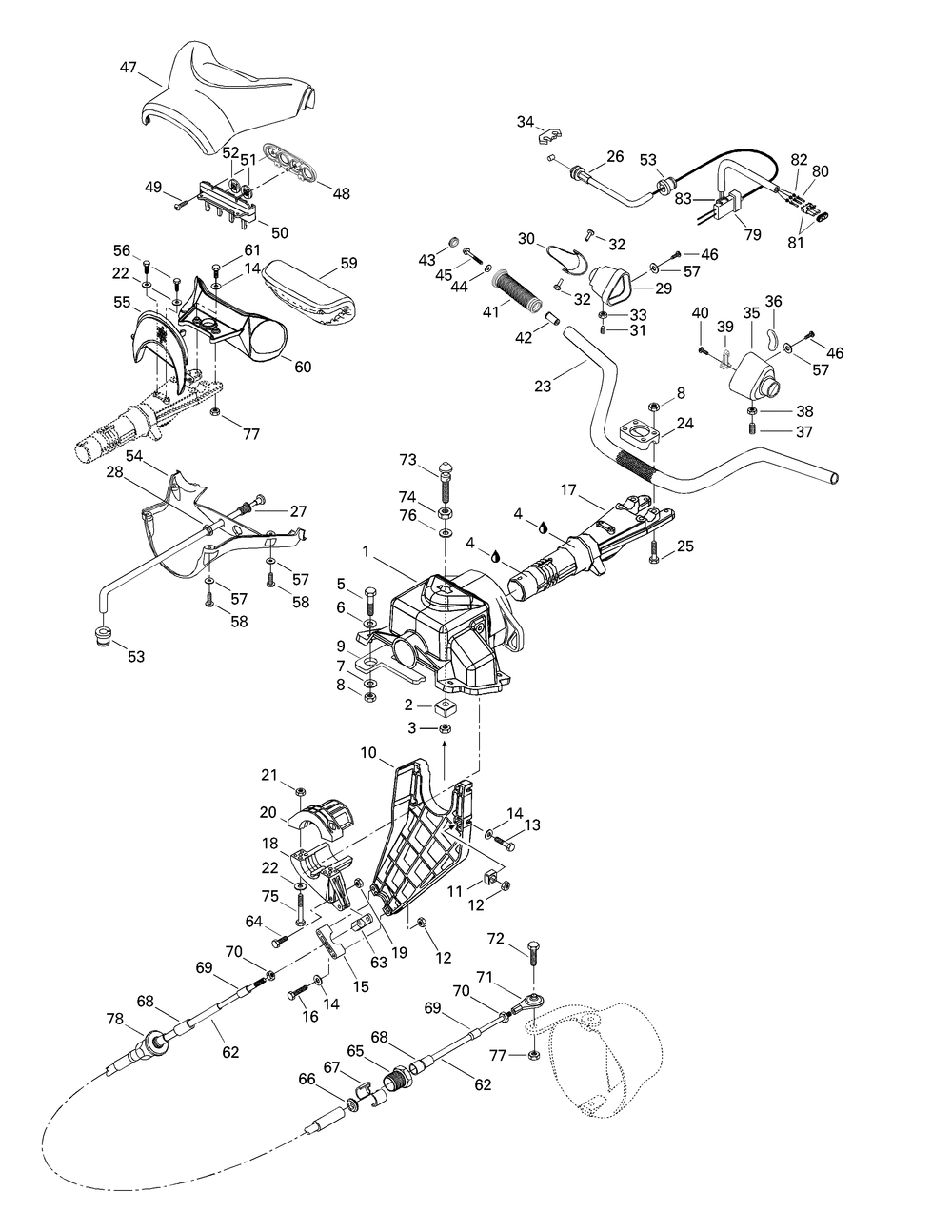

07- Steering System
№ Наименование Примечание Кол-во
1 SUPPORT DIRECT.*SUPPORT-STEER. Includes 1 - 3. 1
2 NUT HOUSING ASS Y 1
3 HEX. ELASTIC NUT M10 (5.000 per pack) 1
4 SYNTHETIC GREASE 400 G 0
5 HEX. SCREW M8 X 35 (10.000 per pack) 4
6 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
7 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
8 HEX. ELASTIC NUT M8 (5.000 per pack) 8
9 JOINT ETANCHE *GASKET (5.000 per pack) 1
10 CABLE SUPPORT Includes 60 to 62 1
11 M6 Nut Housing Ass'y 3
12 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 5
13 HEX. FORMING SCREW M6 X 20 (5.000 per pack) 3
14 FLAT WASHER M6 STAINLESS (25.000 per pack) 7
15 SUPPORT THRUST 1
16 HEX. SCREW M6 X 50 (5.000 per pack) 2
17 TIGE DIRECTION *STEM-STEERING 1
18 STEERING STEM ARM Includes 36 to 37 1
20 ARM THRUST Includes 38 to 39 1
22 FLAT WASHER M6 STAINLESS (10.000 per pack) 4
23 HANDLE BAR 1
24 STEERING CLAMP 1
25 HEX. SCREW M8 X 50 (5.000 per pack) 4
26 CABLE ACCELERAT*CABLE-THROTTLE Includes 32 - 35. 1
27 CABLE ETRANG. *CABLE-CHOKE Includes 50 - 51. 1
28 NUT-HEXAGONAL HI-LEX 1
29 SQUARE NUT M6 (10.000 per pack) 1
30 THROTTLE HOUSING ASS Y 1
31 SCREW-SET SOCKET DIN.914A2 (5.000 per pack) 1
32 GOUPILLE *PIN (5.000 per pack) 2
34 TAB LOCK (5.000 per pack) 1
35 SOCKET HEAD SCREW M6 X 16 Includes 35 - 38. (5.000 per pack) 1
36 VTS KNOB (5.000 per pack) 1
39 PLAQUE RETENUE *PLATE-RETAINER 1
40 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 1
41 ENS. GAINE GUI*VIOLET HANDLE GRIP KIT Includes 41 - 45. 1
43 CAP BLACK (2.000 per pack) 2
45 PLASTITE SCREW HEX. M6.81 X 45 (5.000 per pack) 2
46 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 4
47 UPPER STEERING COVER Includes 33 - 39. 1
47 STEERING COVER 1
48 RETAINER PLATE LE 1
49 SCREW K40 X 10 (5.000 per pack) 3
50 SWITCH SUPPORT LE 1
51 MODE KNOB (5.000 per pack) 1
52 MODE KNOB (5.000 per pack) 1
53 GROMMET (5.000 per pack) 2
54 COUVRE GUIDON *COVER-STEE.INT 1
55 PLAQUE MAR.NOIR*PLATE-MAR.BLAC 1
56 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
57 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
58 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
59 TAMPON GUIDON *PAD-HANDLE Includes 59 - 60. 1
60 HANDLE BAR PAD SUPPORT 1
61 HEX. SCREW M6 X 30 (5.000 per pack) 2
62 CABLE DIRECTION*CABLE-STEERING 1
63 ROTULE *JOINT 1
64 HEX. SCREW M6 X 30 (5.000 per pack) 1
65 STEERING CABLE LOCK 1
66 RUBBER WASHER (5.000 per pack) 1
67 HALF RING (2.000 per pack) 2
68 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 2
69 EMBOUT PETIT *BOOT-SMALL (5.000 per pack) 2
70 HEX. NUT (5.000 per pack) 2
71 BALL JOINT 1
72 HEX. SCREW M6 X 35 (5.000 per pack) 1
73 LATCH STUD 1
74 HEX. JAM NUT M10 (5.000 per pack) 1
75 HEX. SCREW M6 X 25 (5.000 per pack) 2
76 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
78 BOUTON AJUST. *KNOB-AJUST. 1
79 CABLE ACCELERAT*CABLE-THROTTLE Includes 79 - 83. 1
80 FEMALE TERMINAL (5.000 per pack) 3
81 MALE HOUSING 3 CIRCUITS 1
82 Wire Seal 3
