SEA-DOO GTX Limited, 5837/5842 GTX Limited, 5837/5842 07- Steering System

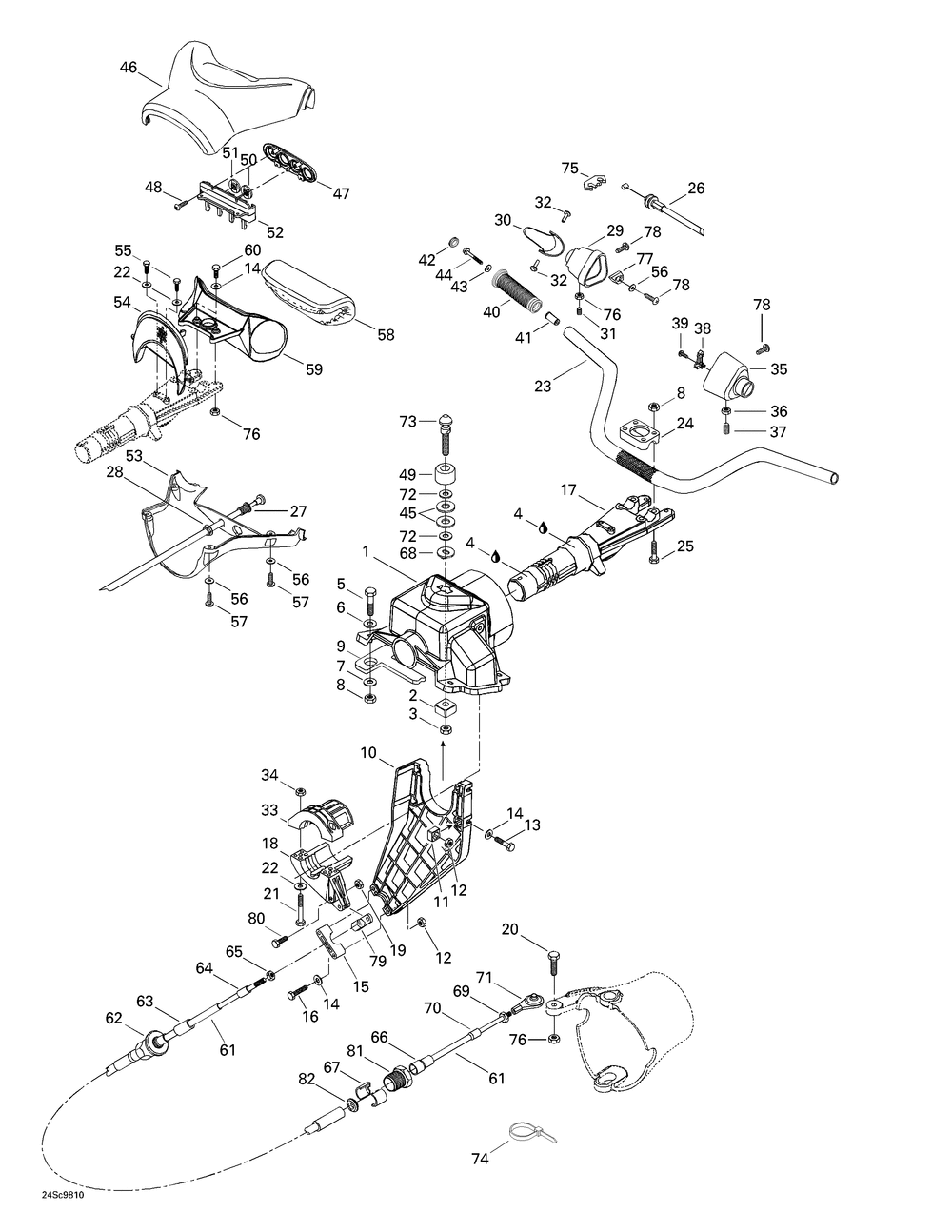

07- Steering System
№ Наименование Примечание Кол-во
1 STEERING SUPPORT Includes 63 to 65 1
2 NUT HOUSING ASS Y 1
3 HEX. ELASTIC NUT M10 (5.000 per pack) 1
4 SYNTHETIC GREASE 400 G 0
5 HEX. SCREW M8 X 35 (10.000 per pack) 4
6 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
7 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
8 HEX. ELASTIC NUT M8 (5.000 per pack) 8
9 JOINT ETANCHE *GASKET (2.000 per pack) 1
10 CABLE SUPPORT Includes 60 to 62 1
11 M6 Nut Housing Ass'y 3
12 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 5
13 HEX. FORMING SCREW M6 X 20 (5.000 per pack) 3
14 FLAT WASHER M6 STAINLESS (25.000 per pack) 7
15 SUPPORT THRUST 1
16 HEX. SCREW M6 X 50 (5.000 per pack) 2
17 TIGE DIRECTION *STEM-STEERING 1
18 STEERING STEM ARM Includes 36 to 37 1
20 HEX. SCREW M6 X 35 (5.000 per pack) 1
21 HEX. SCREW M6 X 25 (5.000 per pack) 2
22 FLAT WASHER M6 STAINLESS (10.000 per pack) 4
23 HANDLE BAR 1
24 STEERING CLAMP 1
25 HEX. SCREW M8 X 50 (5.000 per pack) 4
26 CABLE ACCELERAT*THROTTLE CABLE Includes 81 - 83. 1
27 CABLE ETRANG. *CABLE-CHOKE Includes 56 - 57. 1
28 NUT-HEXAGONAL HI-LEX 1
29 SQUARE NUT M6 (10.000 per pack) 1
30 THROTTLE HOUSING ASS Y 1
31 SCREW-SET SOCKET DIN.914A2 (5.000 per pack) 1
32 GOUPILLE *PIN (5.000 per pack) 2
33 ARM THRUST Includes 38 to 39 1
35 SOCKET HEAD SCREW M6 X 16 Includes 35 - 38. (5.000 per pack) 1
38 PLAQUE RETENUE *PLATE-RETAINER 1
39 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 1
40 HANDLE GRIP KIT (BLACK) Includes 41 - 45. 1
42 CAP BLACK (2.000 per pack) 2
44 PLASTITE SCREW HEX. M6.81 X 45 (5.000 per pack) 2
45 RUBBER WASHER (5.000 per pack) 2
46 COUVRE GUIDON *COVER-STEERING Aztec Red 1
47 RETAINER PLATE LE 1
48 SCREW K40 X 10 (5.000 per pack) 3
49 RUBBER PAD 1
50 MODE KNOB LE (5.000 per pack) 1
51 MODE KNOB (5.000 per pack) 1
52 SWITCH SUPPORT LE 1
53 COUVRE GUIDON *COVER-STEE.INF 1
54 PLAQUE MAR.NOIR*PLATE-MAR.BLAC 1
55 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
56 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
57 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
58 TAMPON GUIDON *PAD-HANDLE . . 1
59 HANDLE BAR PAD SUPPORT 1
60 HEX. SCREW M6 X 30 (5.000 per pack) 2
61 CABLE DIRECTION*CABLE-STEERING Includes 1 - 5. 1
62 BOUTON AJUST. *KNOB-AJUST. 1
63 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 1
64 EMBOUT PETIT *BOOT-SMALL (5.000 per pack) 1
65 HEX. NUT (5.000 per pack) 1
67 HALF RING (2.000 per pack) 2
68 AJOUT *INSERT 1
71 BALL JOINT 1
72 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
73 ERGOT D ANCRAGE*STUD-LATCH 1
74 Tie-Rap 142 mm 0
75 TAB LOCK (5.000 per pack) 1
77 INSERT 2
78 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 4
79 ROTULE *JOINT 1
80 HEX. SCREW M6 X 30 (5.000 per pack) 1
81 STEERING CABLE LOCK 1
82 RUBBER WASHER (5.000 per pack) 1
