SEA-DOO GTX RFI, 5666/5843 GTX RFI, 5666/5843 07- Steering System

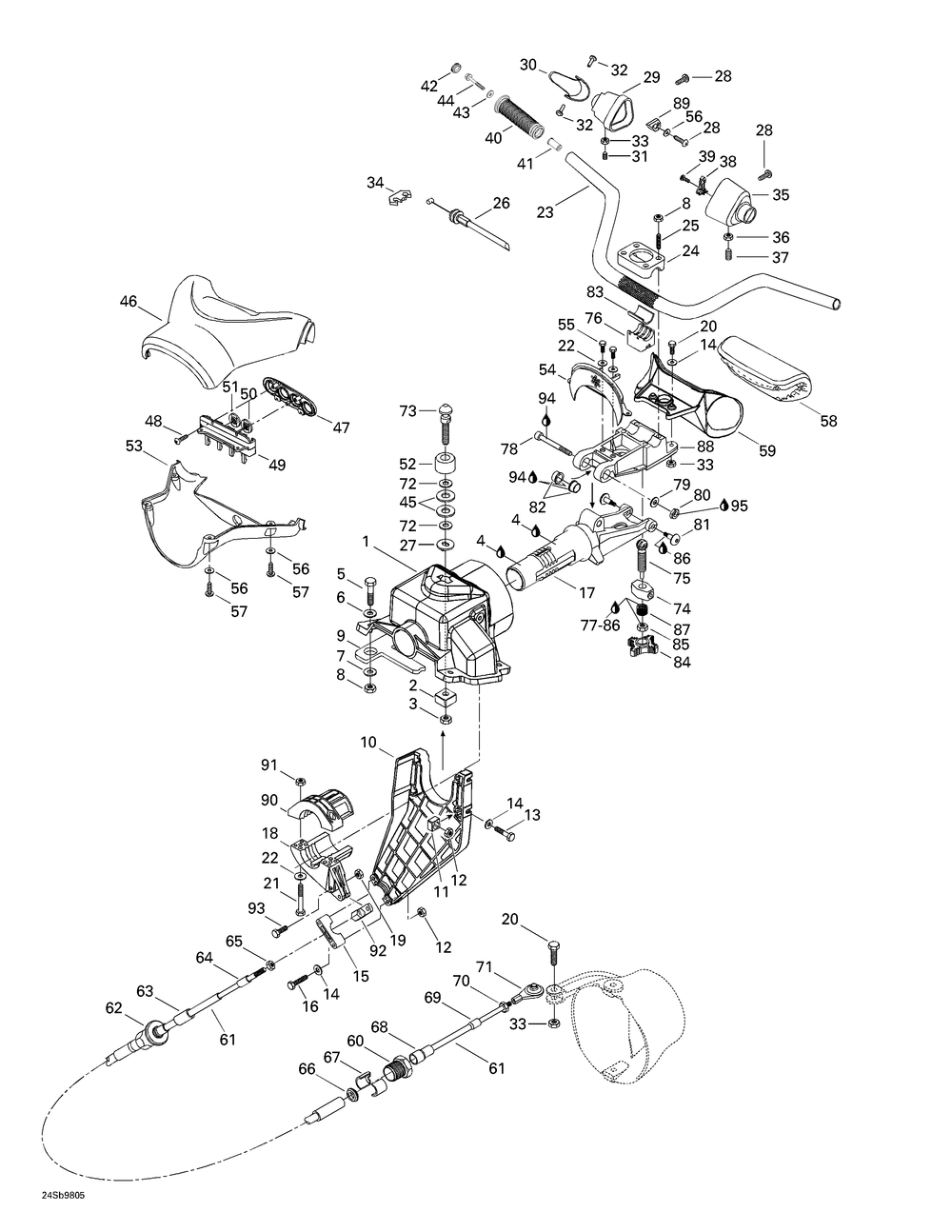

07- Steering System
№ Наименование Примечание Кол-во
1 STEERING SUPPORT Includes 63 to 65 1
2 NUT HOUSING ASS Y 1
3 HEX. ELASTIC NUT M10 (5.000 per pack) 1
4 SYNTHETIC GREASE 400 G 0
5 HEX. SCREW M8 X 35 (10.000 per pack) 4
6 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
7 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
8 HEX. ELASTIC NUT M8 (5.000 per pack) 8
9 JOINT ETANCHE *GASKET (2.000 per pack) 1
10 CABLE SUPPORT Includes 60 to 62 1
11 M6 Nut Housing Ass'y 3
12 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 5
13 HEX. FORMING SCREW M6 X 20 (5.000 per pack) 3
14 FLAT WASHER M6 STAINLESS (25.000 per pack) 7
15 SUPPORT THRUST 1
16 HEX. SCREW M6 X 50 (5.000 per pack) 2
17 TIGE DIRECTION *STEM-STEERING 1
18 STEERING STEM ARM Includes 36 to 37 1
20 HEX. SCREW M6 X 30 (5.000 per pack) 3
21 HEX. SCREW M6 X 25 (5.000 per pack) 2
22 FLAT WASHER M6 STAINLESS (10.000 per pack) 4
23 GUIDON *BAR-HANDLE 1
24 STEERING CLAMP 1
26 CABLE ACCELERAT*CABLE-THROTTLE 1
27 AJOUT *INSERT 1
28 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 4
29 SQUARE NUT M6 (10.000 per pack) 1
30 THROTTLE HOUSING ASS Y 1
31 SCREW-SET SOCKET DIN.914A2 (5.000 per pack) 1
32 GOUPILLE *PIN (5.000 per pack) 2
34 TAB LOCK (5.000 per pack) 1
35 SOCKET HEAD SCREW M6 X 16 Includes 35 - 38. (5.000 per pack) 1
38 PLAQUE RETENUE *PLATE-RETAINER 1
39 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 1
40 HANDLE GRIP KIT (BLACK) Includes 41 - 45. 1
42 CAP BLACK (2.000 per pack) 2
44 PLASTITE SCREW HEX. M6.81 X 45 (5.000 per pack) 2
45 RUBBER WASHER (5.000 per pack) 2
46 UPPER STEERING COVER ASStahos_Y LE Includes 32 to 37 1
47 RETAINER PLATE LE 1
48 SCREW K40 X 10 (5.000 per pack) 3
49 SWITCH SUPPORT LE 1
50 MODE KNOB LE (5.000 per pack) 1
51 MODE KNOB (5.000 per pack) 1
52 RUBBER PAD 1
53 COUVRE GUIDON *COVER-STEE. 1
54 PLATE BLACK 1
55 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
56 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
57 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
58 TAMPON GUIDON *PAD-HANDLE Includes 59 - 60. 1
59 HANDLE BAR PAD SUPPORT 1
60 STEERING CABLE LOCK 1
61 CABLE DIRECTION*CABLE-STEERING Includes 61 - 65. 1
62 BOUTON AJUST. *KNOB-AJUST. 1
63 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 1
64 EMBOUT PETIT *BOOT-SMALL (5.000 per pack) 1
65 HEX. NUT (5.000 per pack) 1
66 RUBBER WASHER (5.000 per pack) 1
67 HALF RING (2.000 per pack) 2
71 BALL JOINT 1
72 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
73 ERGOT D ANCRAGE*STUD-LATCH 1
74 BLOC FILETE *BLOCK 1
75 ADJUSTER SCREW 1
76 STOPPER 1
77 (ORM-D) LOCTITE PRIMER N 128 G 0
79 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
80 HEX. JAM NUT M10 (5.000 per pack) 1
81 THREADED PIVOT 2
82 DOUILLE D APPUI*BUSHING-SUPPORT 2
83 TAMPON *RUBBER PAD 1
84 ADJUSTER HANDLE 1
85 HEX. JAM NUT M8 (25.000 per pack) 1
86 LOCTITE 243 10 ML 0
87 STOPPER BUSHING 1
88 SUPPORT DIRECT.*SUPPORT STEER. 1
89 INSERT 2
90 ARM THRUST Includes 38 to 39 1
92 ROTULE *JOINT 1
93 HEX. SCREW M6 X 30 (5.000 per pack) 1
95 LOCTITE 271 10 ML 0
