SEA-DOO GTX RFI, 5666/5843 GTX RFI, 5666/5843 01- Engine Support And Muffler

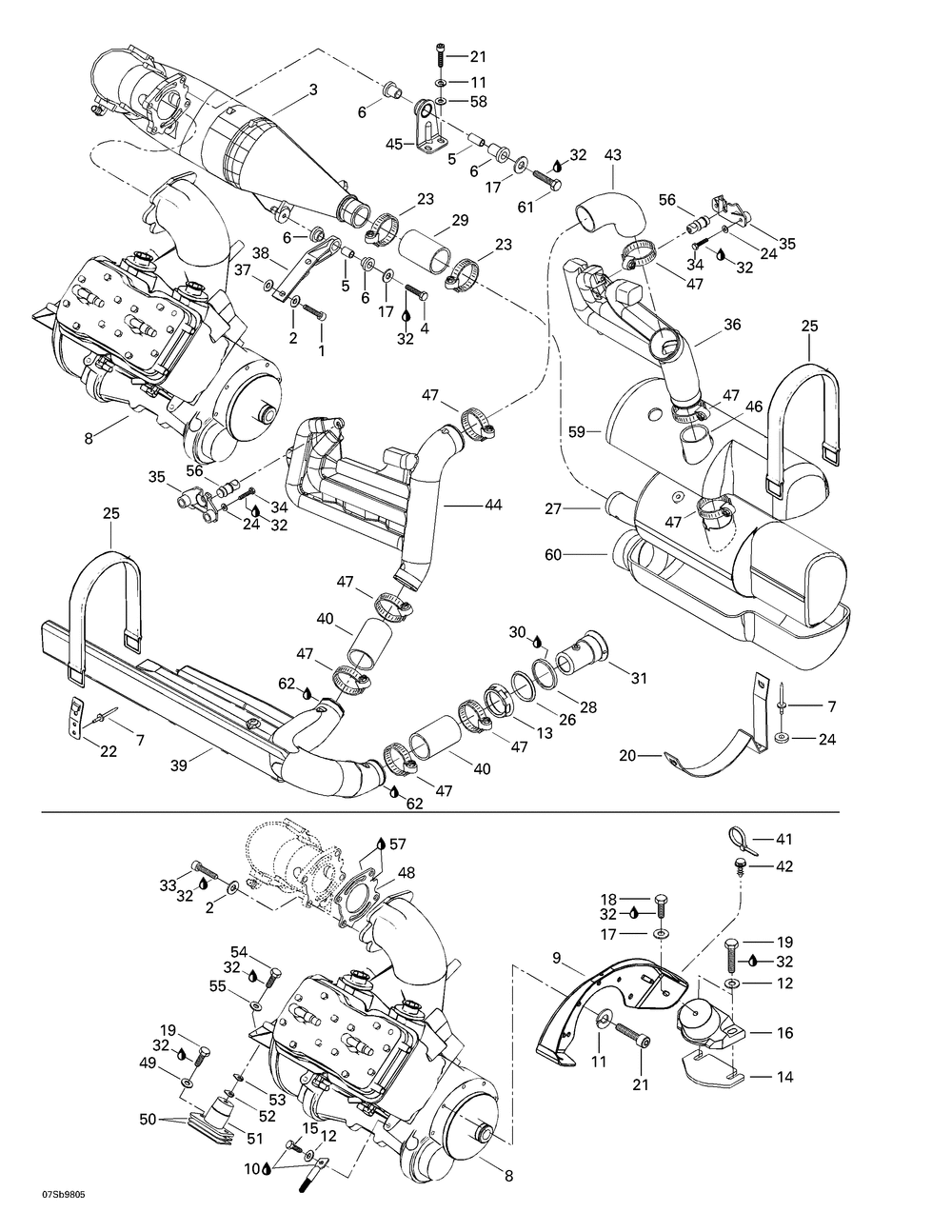

01- Engine Support And Muffler
№ Наименование Примечание Кол-во
SHIM 1.3 MM (5.000 per pack) 0
HEX. SCREW M5 X 20 (5.000 per pack) 4
1 SCREW-SOCKET DIN.912A2 S.GRIP (5.000 per pack) 2
2 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 6
3 TUYAU COLLECT. *PIPE-HEAD Includes 7 - 9. 1
4 HEX. SCREW M8 X 40 (5.000 per pack) 1
5 BUSHING (5.000 per pack) 2
6 RUBBER BUSHING (5.000 per pack) 4
7 AVDEL RIVET 3/16" (10.000 per pack) 6
9 ENGINE SUPPORT 1
10 DIELECTRIC GREASE 150 G 0
11 WASHER-LOCK HELICAL DIN.127B-A2 (10.000 per pack) 7
12 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 5
13 NUT 72 MM 1
14 SHIM 0.3 MM (5.000 per pack) 0
15 HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 1
16 TAMPON ANCRAGE *MOUNT-RUBBER 2
17 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
18 HEX. SCREW M8 X 16 (5.000 per pack) 2
19 HEX. SCREW M8 X 40 (5.000 per pack) 6
20 SUPPORT ECHAPP.*SUPPORT-MUFFLE 1
21 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (5.000 per pack) 7
22 STRAP CLIP 1
23 TRIDON GEAR CLAMP (5.000 per pack) 2
24 FLAT WASHER 5 MM STAINLESS (10.000 per pack) 4
25 RETAINER STRAP 2
26 STABILIZING WASHER 1
27 SILENC.ECHAPP. *MUFFLER-WELDED 1
28 JOINT ETANCHE *GASKET (5.000 per pack) 1
29 EXHAUST HOSE 1
30 SILICONE SEALANT 51388 300 ML 1
31 EXHAUST OUTLET 1
32 LOCTITE 243 10 ML 0
33 SCREW-SOCKET HD.DIN.912A2 (5.000 per pack) 4
34 HEX. SCREW M5 X 16 (5.000 per pack) 4
35 SUPPORT TAMPON *SUPPORT-PAD 2
36 RESONATEUR DR. *RESONATOR-RH. 1
37 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
38 SUPP.TUYAU *SUPP-PIPE 1
39 ENS. RESONATEU*RESONATOR KIT 1
40 BOYAU RACCORD *HOSE-EXHAUST 2
41 TIE-RAP 180 MM (50.000 per pack) 1
42 MOUNT DART (5.000 per pack) 1
43 BOYAU ECHAPP. *HOSE-EXHAUST 1
44 RESONATEUR GA. *RESONATOR-LH. 1
45 PIPE SUPPORT 1
46 BOYAU RACCORD *HOSE-EXHAUST 1
47 TRIDON GEAR CLAMP 8
48 EXHAUST GASKET 1
51 TAMPON ANCRAGE *MOUNT-RUBBER 1
52 SHIM 0.4 MM (10.000 per pack) 0
53 SHIM 1.3 MM (5.000 per pack) 0
54 HEX. SCREW M8 X 20 (5.000 per pack) 1
56 RUBBER PAD 2
57 LOCTITE 518 50 ML 0
58 FLAT WASHER (5.000 per pack) 2
59 COUVRE SILENC. *COVER-MUFFLER 1
60 COUVRE SILENC. *COVER-MUFFLER 1
61 HEX. SCREW M8 X 40 SCOTCH GRIP (5.000 per pack) 1
62 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
