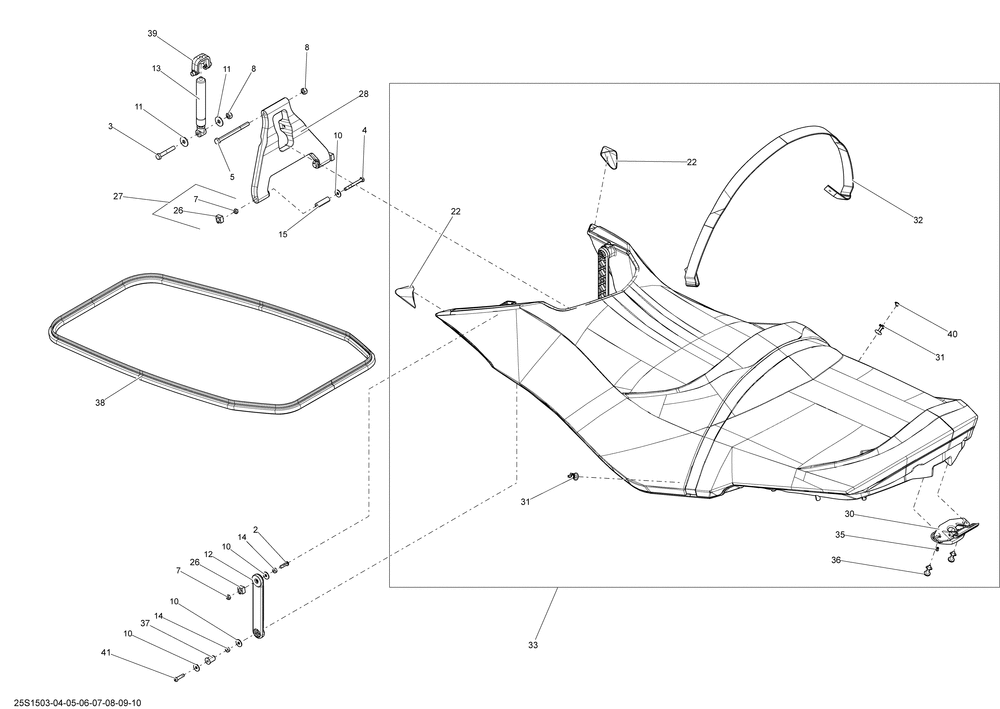

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 2 | SOCKET SCREW M6 X 20 (10.000 per pack) | 2 | |
| 3 | HEX. SCREW M8 X 50 (5.000 per pack) | 1 | |
| 4 | HEX. SCREW M6 X 55 SCOTCH GRIP | 2 | |
| 5 | HEX. SCREW M8 X 100 (4.000 per pack) | 1 | |
| 7 | Elastic Stop Nut M6, Brass | 1 | |
| 8 | Hex. Elastic Nut M8, Brass | 0 | |
| 10 | Flat Washer M6, Stainless | 0 | |
| 11 | FLAT WASHER 8 MM STAINLESS (10.000 per pack) | 2 | |
| 12 | LATERAL ARM | 2 | |
| 13 | AMORTISSEUR *SHOCK | 1 | |
| 14 | SPACER | 0 | |
| 15 | SPACER | 2 | |
| 22 | LH SEAT PROTECTOR | 1 | |
| 22 | RH SEAT PROTECTOR | 1 | |
| 26 | M6 Nut Housing Ass'y | 1 | |
| 27 | Nut Housing Ass'y | 4 | |
| 28 | CENTER ARM | 1 | |
| 30 | LATCH ASS Y | 1 | |
| 31 | RIVET TRI-FAST *RIVET-TRI-FAST (10.000 per pack) | 2 | |
| 32 | SEAT STRAP | 1 | |
| 33 | SEAT ASS Y | 1 | |
| 35 | POP RIVET 1/8 (25.000 per pack) | 1 | |
| 36 | RIVET-BLIND1/4 *RIVETBLIND 1/4 | 2 | |
| 37 | EXPANSION NUT M6 X 1 (10.000 per pack) | 2 | |
| 38 | JOINT ETANCHE *SEAL (3.000 per pack) | 0 | |
| 39 | EMBOUT CYLINDRE*END FITTING | 1 | |
| 40 | GROMMET | 2 | |
| 41 | SOCKET HEAD SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) | 2 |
