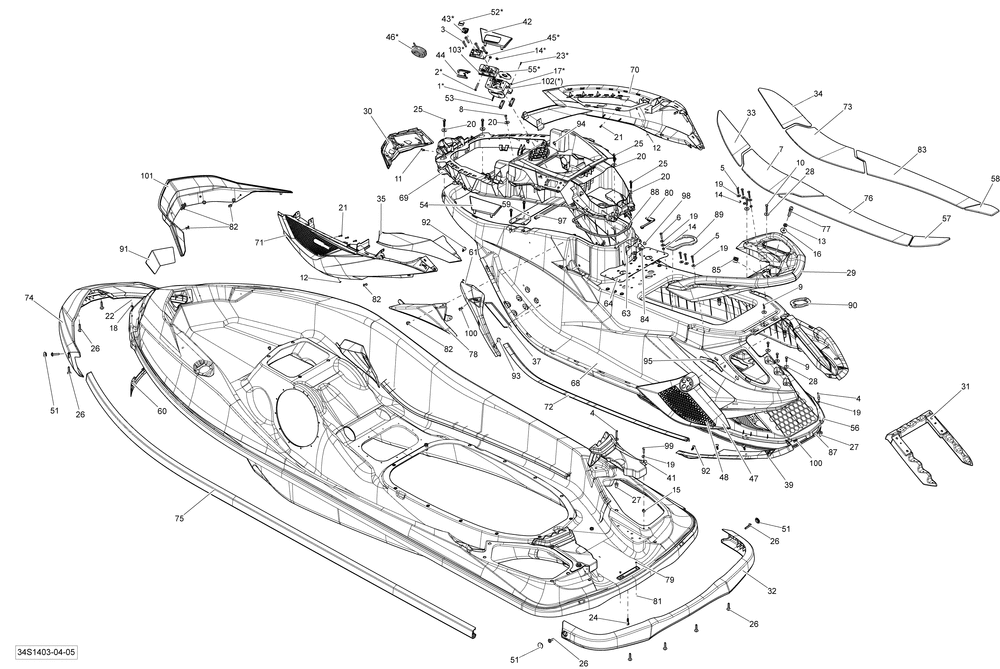

SEA-DOO GTX LTD iS 260 GTX LTD iS 260 09- Body _34S1403
09- Body _34S1403
№ Наименование Примечание Кол-во
1 PHILLIPS TAPPING SCREW tahos_8 X 1" (10.000 per pack) 1
2 SOCKET HEAD SCREW M6 X 40 (10.000 per pack) 2
3 SOCKET SCREW HEAD M6 X 45 (2.000 per pack) 4
4 SOCKET HEAD SCREW M6 X 35 (5.000 per pack) 16
5 HEX. SCREW M6 X 30 (5.000 per pack) 6
6 HEX. SCREW M6 X 25 (5.000 per pack) 6
7 LH CENTER FRONT CARPET 1
8 Hex. Screw M6 X 16, Scotch Grip 2
9 HEX. SCREW M6 X 20 SCOTCH GRIP (10.000 per pack) 7
10 SCREW HEX. M6 X 35 SCOTCH GRIP (10.000 per pack) 2
11 HEX. FORMING SCREW M6 X 16 (5.000 per pack) 2
12 Push Nut 4
13 HEX. JAM NUT M10 (5.000 per pack) 1
14 Elastic Stop Nut M6, Brass 0
16 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
17 FLAT WASHER M3 STAINLESS (10.000 per pack) 4
18 Flat Washer 4 mm Stainless 3
19 Flat Washer M6, Stainless 0
20 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 8
21 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 10
22 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 3
23 OVAL PHILIPP SCREW KA30 X 12 (10.000 per pack) 6
25 PLASTITE HEX. SCREW M6.8 X 35 (5.000 per pack) 10
26 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 11
27 EXPANSION NUT M6 X 1 (10.000 per pack) 16
28 FLAT WASHER M6.6 X 22 (10.000 per pack) 9
29 REAR HANDLE 1
30 GRILLE AVANT *FRONT GRILL 1
31 REAR PIVOT ASS Y 1
32 PARE-CHOCS ARR*REAR BUMPER 1
33 LH FRONT CARPET 1
34 RH FRONT CARPET 1
35 ENJOLIVEUR DR *RIGHT CAP 1
35 ENJOLIVEUR GA *LEFT CAP 1
37 LH FOOTREST COVER 1
37 RH FOOTREST COVER 1
39 LH REAR SCRAPER JOINT 1
39 RH REAR SCRAPER JOINT 1
41 LH REAR GRILL 1
41 RH REAR GRILL 1
42 FRONT REWINDER COVER 1
43 BUTTON 1
44 UNDER CAM 1
45 ROPE GUIDE 1
46 ROPE 3/16" (3.000 per pack) 0
47 RH LATERAL REAR TRIM 1
47 LH LATERAL REAR TRIM 1
48 RH REAR SIDE GRILLE 1
48 LH REAR SIDE GRILLE 1
51 BUMBER CAP 4
52 BUTTON CAP 1
53 DOUBLE CAGE NUT ASS Y 2
55 INSIDE COVER 1
56 DECK EXTENSION ASS Y 1
57 LH REAR CARPET 1
58 RH REAR CARPET 1
59 RENFORT MODULE *STIFFENER MOD 1
60 DECK NOSE 1
61 JOINT AV DR *FRONT RH JOINT 1
61 JOINT AV GA *FRONT LH JOINT 1
63 SEAT PIVOT 1
64 UPPER REINFORCEMENT Model GTX S & iS 1
66 LOWER CENTRAL REINFORCEMENT 1
68 UPPER BODY ASS Y 1
69 MODULE AVANT *FRONT MODULE 1
70 FR RH MOULDING ASS Y 1
71 LH FRONT MOULDING ASS Y 1
72 MID JOINT 2
73 RH CENTER FRONT CARPET 1
74 PARE CHOCS *FRONT BUMPER 1
75 LATERAL BUMPER 2
76 LH CENTER REAR CARPET 1
77 SEAT STUD 1
78 MAGNESIUM RH SEAT PAD 1
78 MAGNESIUM LH SEAT PAD 1
79 BLACK SNAP CAP (50.000 per pack) 2
81 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 2
82 POP RIVET 3/16" (5.000 per pack) 12
83 RH CENTER REAR CARPET 1
84 POP RIVET 3/16 (4.000 per pack) 4
85 LOGEMENT ECROU *HOUSING-NUT 1
87 LIP SEAL 1
88 NEOPRENE SEAL 1
89 LIP SEAL 1
90 LIP SEAL 1
91 TAMPON *GASKET 1
92 BLACK DART (5.000 per pack) 10
93 BLACK DART FAN (10.000 per pack) 2
94 Rubber Bumper 3
95 Gasket, Neoprene 2
97 PROTECTION TRIM 1
99 HEX SCREW M6 X 30 2
101 BODY DEFLECTOR 1
102 RETRACTABLE ROPE ASS Y 1
103 JAM CLEAT SYSTEM ASS Y 1
