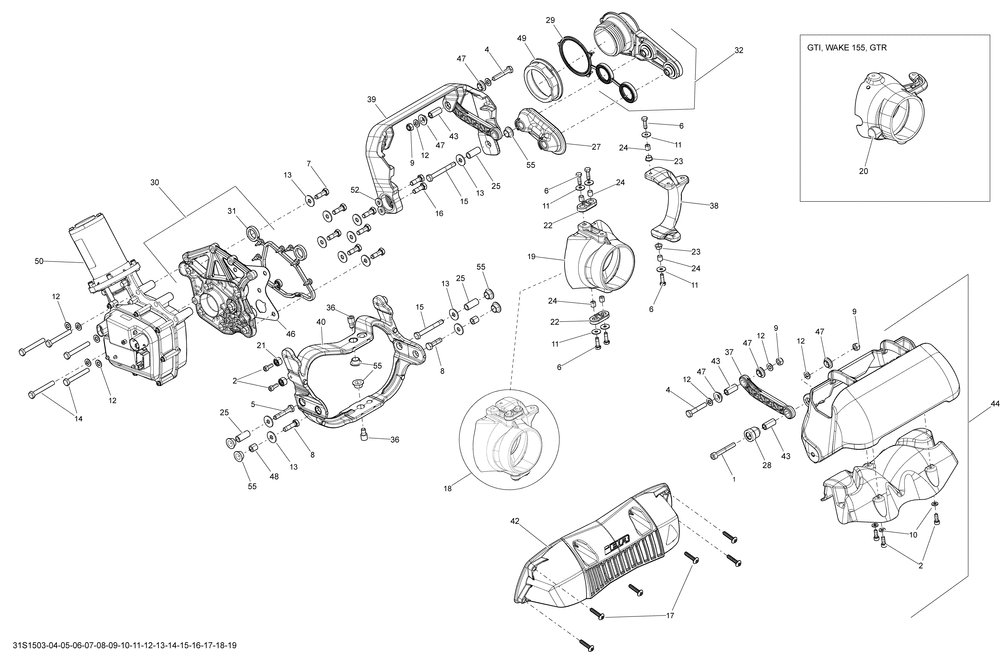

05- Reverse

05- Reverse _31S1504

№	Наименование	Кол-во
1	SOCKET HEAD SCREW M8 X 55 (2.000 per pack)	2
2	Socket Head Screw M6 X 16, Scotch Grip	7
4	HEX. SCREW M8 X 45 (5.000 per pack)	2
5	HEX. SCREW S. GRIP M8 X 45	1
6	HEX. SCREW M6 X 20 SCOTCH GRIP (10.000 per pack)	0
7	HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack)	7
8	HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack)	2
9	Hex. Elastic Nut M8, Brass	4
10	Flat Washer M6, Stainless	3
11	Flat Washer M6, Stainless	0
12	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	11
13	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	0
14	HEX. SCREW M8 X 60 SCOTCH GRIP (5.000 per pack)	5
15	HEX. SCREW M8 X 70 SCOTCH GRIP	2
16	HEX. SCREW M8 X 25 SCOTCH GRIP (2.000 per pack)	2
17	TORX SCREW M6.81 X 30	6
18	NOZZLE ASS Y	1
19	JET PUMP NOZZLE	1
21	FRICTION SLEEVE	4
22	DIRECTION LEVER ARM	2
23	BUSHING	2
24	SPACER	0
25	SPACER	3
27	RH SUPPORT PLATE	1
28	BUSHING	2
29	RH FORMED SEAL	1
30	LH FIXING PLATE ASS Y	1
31	LH FORMED SEAL	1
32	RH FIXING PLATE ASS Y	1
36	SOCKET HEAD SCREW M8 X 13	2
37	LINKAGE ARM	2
38	NOZZLE LEVER BLACK	1
39	"U" ARM BLACK	1
40	TRIMMING RING BLACK	1
42	GUARD	1
43	SPACER	4
44	REVERSE GATE ASS Y	1
46	BASE MOUNT	1
47	VENTURI BUSHING (5.000 per pack)	6
48	SPACER	2
49	NUT 72 MM	1
50	IBR ACTUATOR	1
52	FLAT WASHER (5.000 per pack)	2
55	VENTURI BUSHING (2.000 per pack)	7
