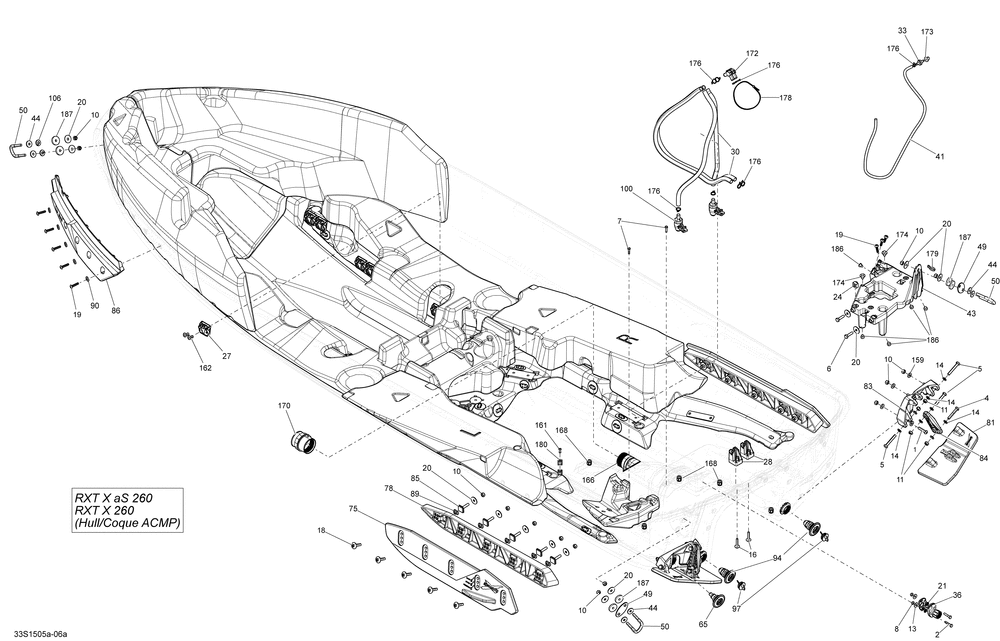

SEA-DOO RXT-X aS 260 & RS RXT-X aS 260 & RS 09- Hull ACMP_33S1505a
09- Hull ACMP_33S1505a
№ Наименование Примечание Кол-во
1 HEX. SCREW M8 X 55 (5.000 per pack) 6
2 HEX. SCREW M6 X 30 (5.000 per pack) 0
4 HEX. SCREW M8 X 50 (5.000 per pack) 2
6 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 2
7 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
8 Elastic Stop Nut M6, Brass 0
10 Hex. Elastic Nut M8, Brass 0
11 Hex. Elastic Nut M8 8
13 Flat Washer M6, Stainless 0
14 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 16
16 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 0
18 TORX-HEAD SCREW M8 X 35 10
19 TORX SCREW M6.81 X 30 0
20 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 0
21 SEALING WASHER 0
24 Elastic Nut Housing M8 4
27 STRAP RETAINING 0
28 STRAP RETAINING 2
30 BOYAU 12MM. *HOSE-12MM. (2.000 per pack) 4
33 CHECK VALVE 1
36 CABLE ADAPTOR ASS Y 1
41 HOSE 6 MM (3.000 per pack) 1
43 BATTERY BASE ASS Y 1
44 FLAT WASHER 6
49 FINITION PLATE BLACK 2
50 U-CLAMP 3
65 DRAIN NECK ASS Y 1
65a DOUILLE *BUSHING 1
75 RH SPONSON 1
75 LH SPONSON 1
78 RH STABILIZER SPACER 1
78 LH STABILIZER SPACER 1
81 LH TRIM TAB 1
81 RH TRIM TAB 1
83 LH SUPPORT PLATE 1
83 RH SUPPORT PLATE 1
84 LINK ARM 2
85 SQUARE HEAD STUD 10
86 LH FRONT DEFLECTOR 1
86 RH FRONT DEFLECTOR 1
89 PUSH NUT 10
90 FLAT WASHER 10
94 DRAIN ASS Y 2
97 PLUG ASS Y 2
100 BAILER PICK-UP ASS Y 2
106 FLAT WASHER 8 MM NYLON 2
159 FLAT WASHER (5.000 per pack) 6
161 POP RIVET 3/16" (5.000 per pack) 0
162 POP RIVET 3/16" (5.000 per pack) 0
166 OUTER HULL INSERT Model without 300 Engine 1
170 HULL INSERT Model without 300 Engine 1
172 FITTING ELBOW 90 2
173 GROMMET (5.000 per pack) 1
174 Mount Dart 2
176 Tie-Rap 94 mm 9
178 Tie-Rap 350 mm 1
179 Tie-Rap 180 mm 1
180 TIE RAP MOUNT (5.000 per pack) 0
186 Rubber Bumper 5
187 RUBBER WASHER (5.000 per pack) 6
