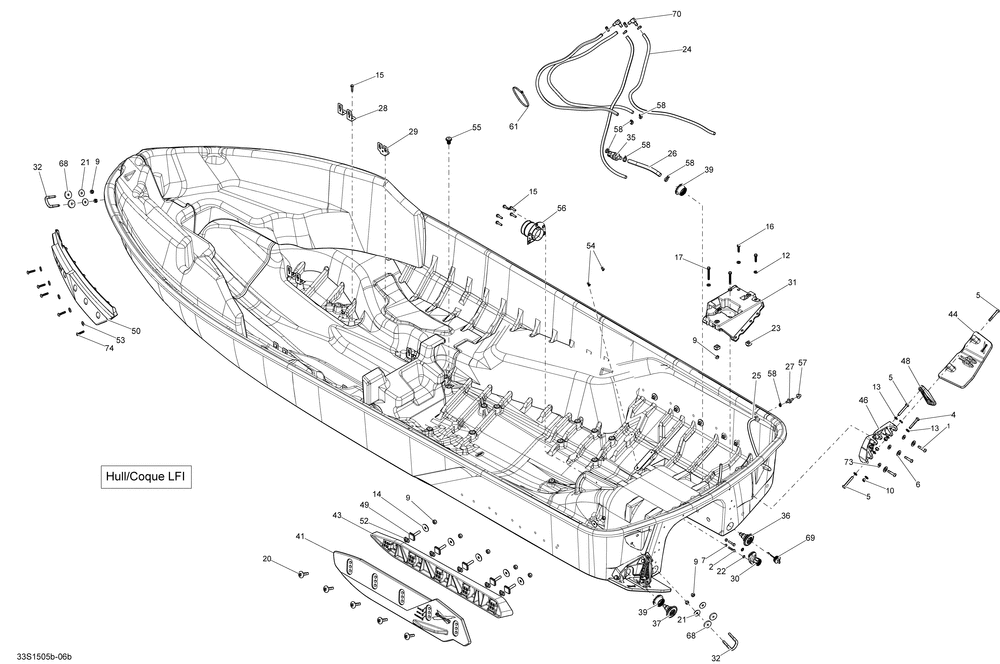

SEA-DOO RXT-X aS 260 & RS RXT-X aS 260 & RS 09- Hull LFI_33S1505b
09- Hull LFI_33S1505b
№ Наименование Примечание Кол-во
1 SOCKET SCREW M8 X 35 6
2 HEX. SCREW M6 X 30 (5.000 per pack) 2
4 HEX. SCREW M8 X 50 (5.000 per pack) 2
5 HEX. SCREW M8 X 55 (5.000 per pack) 6
6 FLAT WASHER STAINLESS (5.000 per pack) 12
7 Elastic Stop Nut M6, Brass 2
9 Hex. Elastic Nut M8, Brass 17
10 Hex. Elastic Nut M8 8
12 FLAT WASHER M8 STAINLESS (5.000 per pack) 4
13 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 16
14 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 10
15 HEX. FLANGED SCREW M6.81 X 25 PLASTITE (5.000 per pack) 15
16 FLANGED HEX. SCREW M6.81 X 30 (5.000 per pack) 2
17 FLANGED HEX. SCREW M6.81 X 55 2
20 TORX-HEAD SCREW M8 X 35 10
21 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 16
22 SEALING WASHER 2
23 Elastic Nut Housing M8 2
24 POLYURETHANE HOSE 8 MM (3.000 per pack) 4
25 HOSE 6 MM (3.000 per pack) 1
26 BOYAU 12MM. *HOSE-12MM. (2.000 per pack) 2
27 CHECK VALVE 1
28 STRAP CLIP 90 10
30 CABLE ADAPTOR ASS Y 1
31 BATTERY BASE ASS Y 1
32 U-CLAMP 3
35 BAILER ASS Y 2
36 DRAIN NECK ASS Y 2
37 DRAIN NECK ASS Y 1
39 BUSHING 3
41 STABILISATEUR D*SPONSON RH 1
41 STABILISATEUR G* SPONSON LH 1
43 ENTRETOISE *SPACER 1
43 RH SPACER SPONSON 1
44 LH TRIM TAB 1
44 RH TRIM TAB 1
46 LH SUPPORT PLATE 1
46 RH SUPPORT PLATE 1
48 LINK ARM 2
49 SQUARE HEAD STUD 10
50 LH FRONT DEFLECTOR 1
50 RH FRONT DEFLECTOR 1
52 PUSH NUT 10
53 FLAT WASHER 10
54 AVDEL RIVET 3/16" (10.000 per pack) 2
55 INSERT CAPUCHON M8 21
56 HULL INSERT 1
57 GROMMET (5.000 per pack) 1
58 Tie-Rap 94 mm 13
61 Tie-Rap 350 mm 1
68 RUBBER WASHER (5.000 per pack) 6
69 PLUG DRAIN ASS Y 2
70 ELBOW FITTING 90 2
73 FLAT WASHER (5.000 per pack) 6
74 SCREW TORX M6.81 X 30 10
