SEA-DOO RXT-X aS 260 & RS RXT-X aS 260 & RS 07- Steering 24S1505

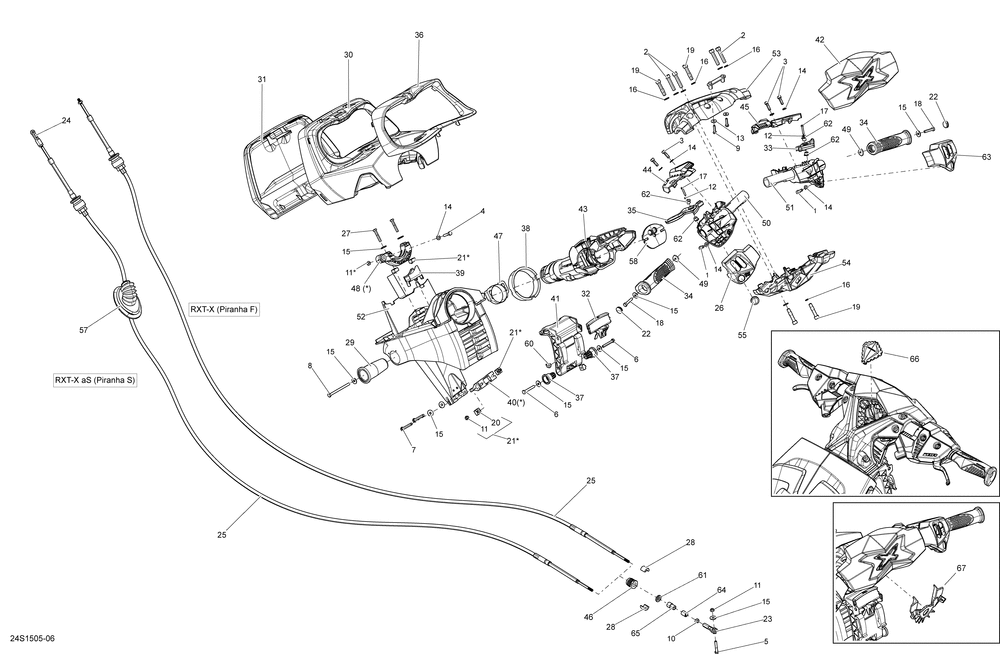

07- Steering 24S1505
№ Наименование Примечание Кол-во
1 SOCKET SCREW M6 X 16 (10.000 per pack) 2
2 SOCKET HEAD SCREW M8 X 40 (5.000 per pack) 4
3 Socket Head Screw M6 X 20, Scotch Grip 4
4 HEX. SCREW M6 X 30 (5.000 per pack) 1
5 HEX. SCREW M6 X 35 (5.000 per pack) 1
6 HEX. SCREW M6 X 40 (10.000 per pack) 2
7 HEX. SCREW M6 X 50 (25.000 per pack) 2
8 HEX SCREW M6 X 80 (2.000 per pack) 2
9 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
10 HEX. NUT 1/4"-28 (10.000 per pack) 1
11 Elastic Stop Nut M6, Brass 6
12 Flat Washer 4 mm Stainless 2
13 Flat Washer 5 mm, Stainless 2
14 Flat Washer M6, Stainless 8
15 Flat Washer M6, Stainless 10
16 FLAT WASHER M8 STAINLESS (5.000 per pack) 8
17 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 2
18 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
19 SOCKET HEAD SCREW M8 X 40 SCOTCH GRIP (10.000 per pack) 4
20 M6 Nut Housing Ass'y 4
21 Nut Housing Ass'y 8
22 CAP BLACK (2.000 per pack) 2
23 BALL JOINT 1
24 BALL JOINT 1
25 STEERING CABLE 1
26 LH HOUSING COVER 1
27 HEX. SCREW M6 X 35 (10.000 per pack) 2
28 HALF RING 2
29 STEERING SUPPORT PIVOT 2
30 GAUGE SUPPORT 1
31 GAUGE SUPPORT COVER 1
32 LOCK 1
33 THROTTLE HANDLE 1
34 HANDLE GRIP 2
35 REVERSE HANDLE 1
36 GAUGE TRIM BLACK 1
37 PIVOT 2
38 WEAR RING 1
39 SPACER 1
40 THRUST SUPPORT ASS Y 1
41 POIGNEE ASS. *HANDLE ASS Y 1
42 HANDLE PAD 1
43 STEERING COLOMN 1
44 LH UPPER HOUSING 1
45 RH UPPER HOUSING 1
46 STEERING CABLE LOCK 1
47 WEAR RING 1
48 SUPPORT ASS Y 1
49 INSERT GRIP HANDLE 2
50 LH LOWER HOUSING 1
51 RH LOWER HOUSING 1
52 SUP. DIRECTION *STEERING SUP. 1
53 FRONT EXTENSION BLOC 1
54 REAR EXTENSION BLOCK 1
55 KNOB SWITCH RED 1
57 SOUFFLET *GROMMET 1
58 GROMMET 1
60 Rubber Bumper 2
61 RUBBER WASHER (10.000 per pack) 1
62 BUSHING 4
63 RH COVER HOUSING 1
64 SMALL BOOT 1
65 EMBOUT GRAND *END PIECE 1
66 CAPUCHON *CAP 1
67 RADIO FREQUENCY KEY SUPPORT 1
