SEA-DOO RXT-X aS 260 & RS RXT-X aS 260 & RS 07- Steering

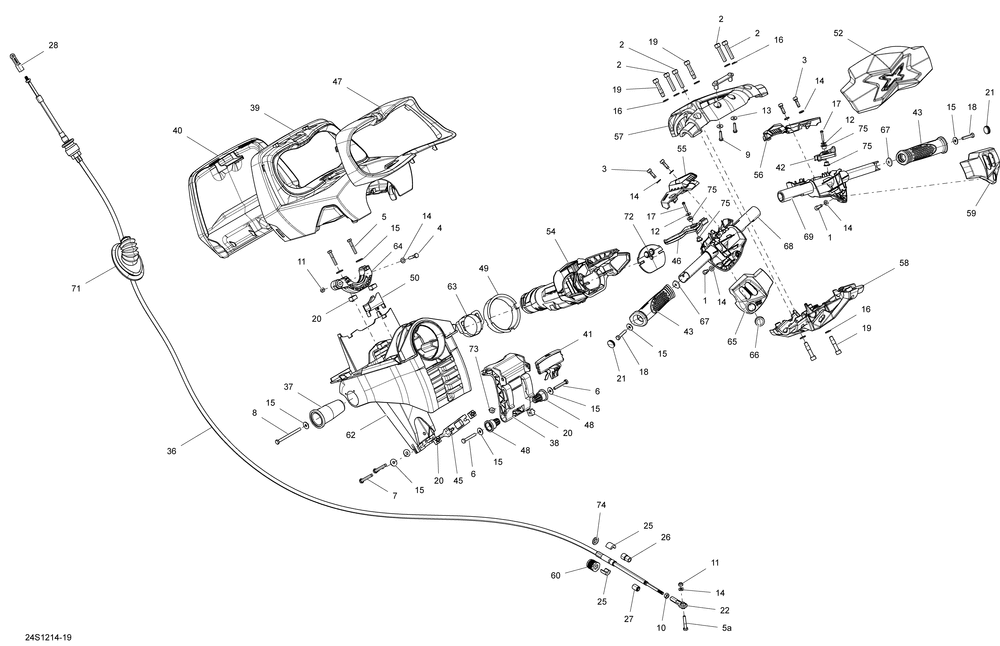

07- Steering
№ Наименование Примечание Кол-во
1 SOCKET SCREW M6 X 16 (10.000 per pack) 2
2 SOCKET HEAD SCREW M8 X 40 (5.000 per pack) 4
3 Socket Head Screw M6 X 20, Scotch Grip 4
4 HEX. SCREW M6 X 30 (5.000 per pack) 1
5 HEX. SCREW M6 X 35 (10.000 per pack) 2
5a HEX. SCREW M6 X 35 (5.000 per pack) 1
6 HEX. SCREW M6 X 40 (10.000 per pack) 2
7 HEX. SCREW M6 X 50 (25.000 per pack) 2
8 HEX SCREW M6 X 80 (2.000 per pack) 2
9 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
10 HEX. NUT 1/4"-28 (10.000 per pack) 1
11 Elastic Stop Nut M6, Brass 2
12 Flat Washer 4 mm Stainless 2
13 Flat Washer 5 mm, Stainless 2
14 Flat Washer M6, Stainless 8
15 Flat Washer M6, Stainless 12
16 FLAT WASHER M8 STAINLESS (5.000 per pack) 8
17 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 2
18 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
19 SOCKET HEAD SCREW M8 X 40 SCOTCH GRIP (10.000 per pack) 4
20 Nut Housing Ass'y 6
21 CAP BLACK (2.000 per pack) 2
22 BALL JOINT 1
25 HALF RING 2
26 EMBOUT GRAND *END PIECE 1
27 SMALL BOOT 1
28 BALL JOINT 1
36 STEERING CABLE 1
37 STEERING SUPPORT PIVOT 2
38 POIGNEE ASS. *HANDLE ASS Y 1
39 GAUGE SUPPORT 1
40 GAUGE SUPPORT COVER 1
41 LOCK 1
42 THROTTLE HANDLE 1
43 HANDLE GRIP 2
45 THRUST SUPPORT ASS Y 1
46 REVERSE HANDLE 1
47 GAUGE TRIM BLACK 1
48 PIVOT 2
49 WEAR RING 1
50 SPACER 1
52 HANDLE PAD 1
54 STEERING COLOMN 1
55 LH UPPER HOUSING 1
56 RH UPPER HOUSING 1
57 FRONT EXTENSION BLOC 1
58 BLOC EXTENSION *EXTENSION BLOC 1
59 RH COVER HOUSING 1
60 STEERING CABLE LOCK 1
62 STEERING SUPPORT 1
63 WEAR RING 1
64 SUPPORT ASS Y 1
65 LH HOUSING COVER 1
66 SWITCH KNOB RED 1
67 INSERT GRIP HANDLE 2
68 LOGEMENT *HOUSING 1
69 RH LOWER HOUSING 1
71 SOUFFLET *GROMMET 1
72 GROMMET 1
73 Rubber Bumper 2
74 RUBBER WASHER (10.000 per pack) 1
75 BUSHING 4
