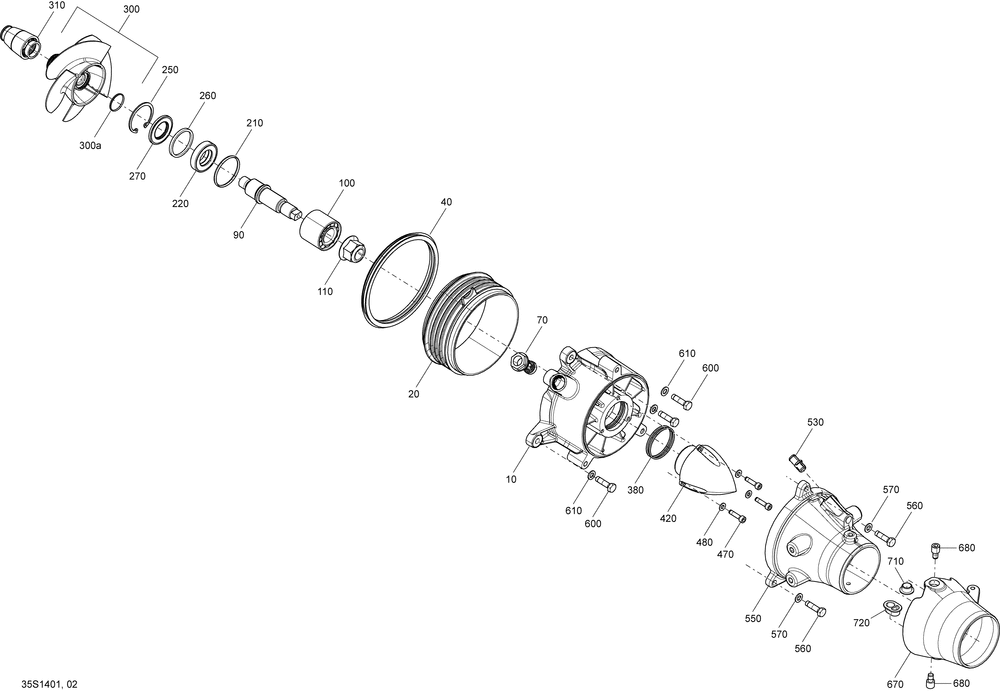

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 10 | IMPELLER HOUSING | 1 | |
| 20 | WEAR RING | 1 | |
| 40 | NEOPRENE SEAL | 1 | |
| 70 | PLUG | 1 | |
| 90 | IMPELLER SHAFT | 1 | |
| 100 | ROULEMENT ANG. *ANGLE BEARING | 1 | |
| 110 | ELASTIC FLANGED NUT M20 (2.000 per pack) | 1 | |
| 210 | O-RING | 1 | |
| 220 | OIL SEAL | 1 | |
| 250 | CIRCLIP | 1 | |
| 260 | SPACER | 1 | |
| 270 | OIL SEAL | 1 | |
| 300 | IMPELLER ASS Y | 1 | |
| 300a | O-RING | 1 | |
| 310 | PROT.HELICE *BOOT-IMPELLER | 1 | |
| 380 | O-RING | 2 | |
| 420 | IMPELLER COVER | 1 | |
| 470 | SOCKET HEAD SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) | 3 | |
| 480 | Flat Washer M6, Stainless | 3 | |
| 530 | SIPHON TUBE | 1 | |
| 550 | VENTURI | 1 | |
| 560 | HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack) | 3 | |
| 570 | FLAT WASHER M8 STAINLESS (5.000 per pack) | 3 | |
| 670 | NOZZLE | 1 | |
| 680 | SOCKET HEAD SCREW M8 X 13 | 2 | |
| 710 | VENTURI BUSHING (2.000 per pack) | 1 | |
| 720 | PLASTIC BUSHING (5.000 per pack) | 1 |
