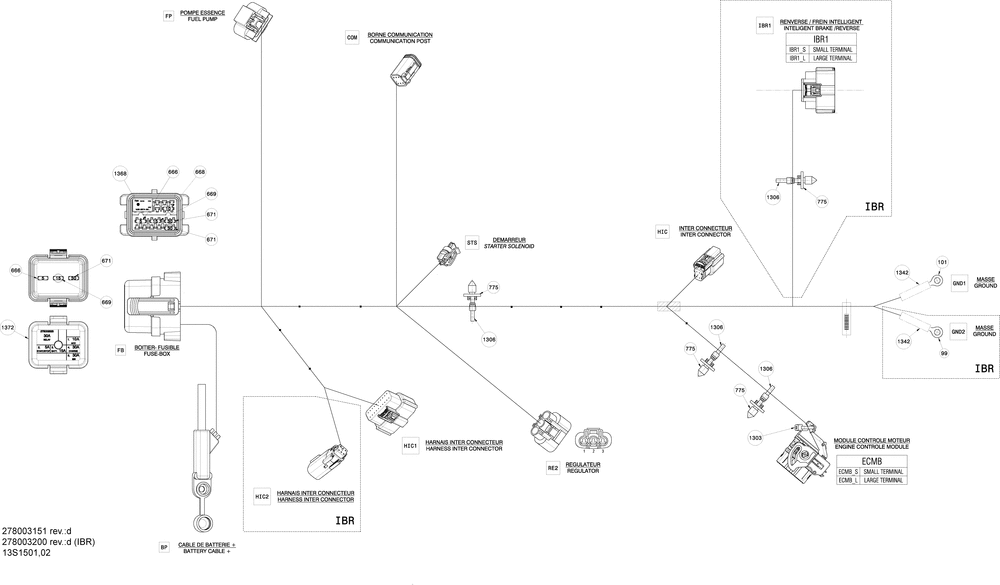

10- Electrical Harness Main IBR

10- Electrical Harness Main IBR_13S1502

№	Наименование	Кол-во
BP	BATTERY CABLE	1
COM	Male Wedge 6 Circuits	0
COM	Housing 6 Circuits	0
COM	Female Terminal	0
COVER	LITTLE FUSE 30 AMPERES	0
COVER	Little Fuse, 5 Amperes	0
COVER	Little Fuse, 15 Amperes	0
ECMB_L	Female Terminal	0
ECMB_L	Plug	0
ECMB_L	Female Terminal	0
ECMB_S	Female Terminal Housing, 48 Circuits	0
ECMB_S	Plug	0
ECMB_S	Cover	0
ECMB_S	Female Terminal	0
FB	Wire Seal	0
FB	Female Terminal	0
FB	Female Terminal	0
FB	Wire Seal (20 Gauge) (Purple) (Packard)	0
FB	Seal Plug	0
FB	Terminal	0
FB	RELAY 30 AMP.	0
FB	CASE ASS Y	0
FB	FUSE COVER	0
FB	WIRE SEAL (10.000 per pack)	0
FB	Little Fuse, 10 Amperes	0
FP	MALE HOUSING 4 CIRCUITS	0
FP	Female Terminal	0
FP	Wire Seal	0
GND1	OPEN BARREL (10.000 per pack)	0
GND2	OPEN BARREL (10.000 per pack)	0
HIC	CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack)	0
HIC	FEMALE TERMINAL	0
HIC	HOUSING 4 CIRCUITS	0
HIC1	SEAL PLUG (3.000 per pack)	0
HIC1	Housing, 20 Circuits	0
HIC2	MALE TERMINAL P-1+1IBR	0
HIC2	Male Housing 6 Circuits	0
IBR1_L	FEMALE TERMINAL	0
IBR1_L	JOINT *SEAL	0
IBR1_S	HOUSING 16 CIRCUITS	0
IBR1_S	Sealing Cap	0
RE2	HOUSING 3 CIRCUITS	0
RE2	Seal	0
RE2	CAP	0
RE2	Female Terminal	0
STS	Female Housing	0
STS	Wire Seal	0
STS	Female Terminal	0
1	MAIN HARNESS ASS Y (IBR) IBR	1
775	Mount Dart	0
