SEA-DOO WAKE 155 WAKE 155 10- Electrical Harness _13S1517a

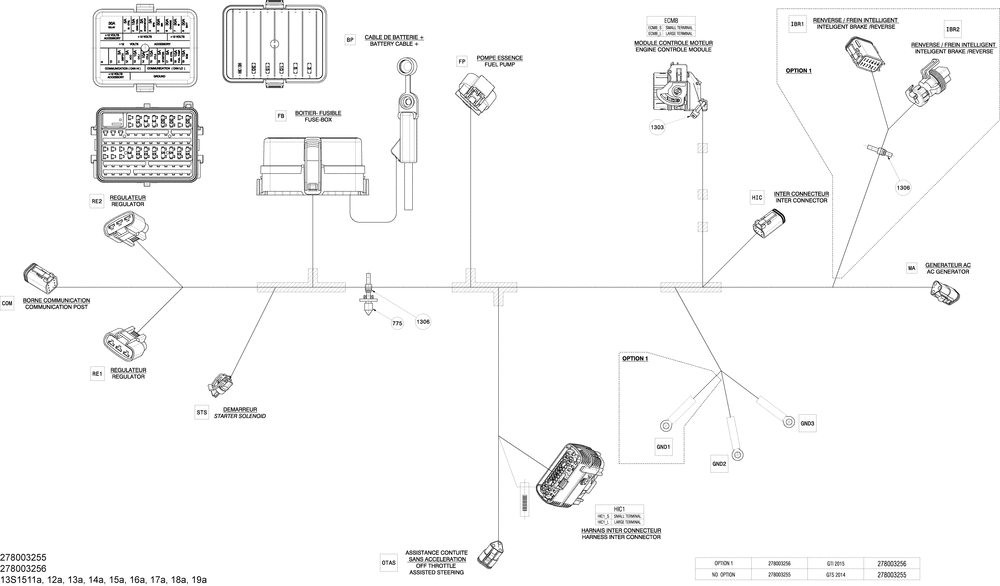

10- Electrical Harness _13S1517a
№ Наименование Примечание Кол-во
BP BATTERY CABLE 0
COM Female Terminal 0
COM Female Terminal 0
COM Male Wedge 6 Circuits 0
COM Housing 6 Circuits 0
COM Sealing Cap 0
COVER Little Fuse, 10 Amperes 0
COVER Little Fuse, 5 Amperes 0
COVER LITTLE FUSE 3 AMP 0
COVER LITTLE FUSE 30 AMPERES 0
COVER Little Fuse, 15 Amperes 0
ECMB_L Female Terminal 0
ECMB_L Plug 0
ECMB_L Female Terminal 0
ECMB_S Plug 0
ECMB_S Cover 0
ECMB_S Female Terminal Housing, 48 Circuits 0
ECMB_S Female Terminal 0
FB Wire Seal 0
FB Wire Seal (20 Gauge) (Purple) (Packard) 0
FB BUS BAR 0
FB Terminal 0
FB JUNCTION BAR (4 PINS) 0
FB Female Terminal 0
FB Female Terminal 0
FB WIRE SEAL (10.000 per pack) 0
FB FUSE BASE ASS Y 0
FB FUSE COVER 0
FB RELAY 30 AMP. 0
FB Seal Plug 0
FP Wire Seal 0
FP Female Terminal 0
FP MALE HOUSING 4 CIRCUITS 0
GND2 OPEN BARREL (10.000 per pack) 0
HIC MALE HOUSING 4 CIRCUITS 0
HIC CALE 4 CIRC.MAL*WEDGE-4 WAYS M 0
HIC1_L FEMALE TERMINAL 0
HIC1_S CONNECTEUR *HOUSING 0
HIC1_S FEMALE TERMINAL 0
HIC1_S FEMALE TERMINAL 0
MA FEMALE LOCK 3 CIRCUITS 0
MA FEMALE TERMINAL HOUSING 3 CIRCUITS 0
MA FEMALE TERMINAL 0
OTAS FEMALE TERMINAL HOUSING 3 CIRCUITS 0
OTAS FEMALE LOCK 0
RE1 HOUSING 3 CIRCUITS 0
RE1 Seal 0
RE1 Female Terminal 0
RE2 CAP 0
RE2 HOUSING 3 CIRCUITS 0
STS Female Terminal 0
STS Female Housing 0
STS Wire Seal 0
1 MAIN HARNESS ASS Y 1
