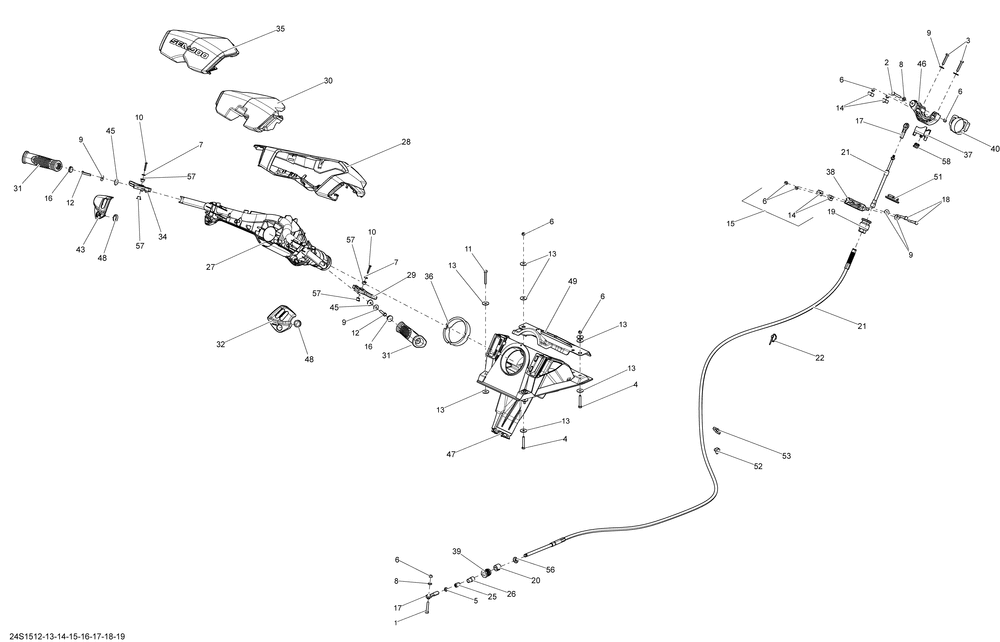

07- Steering

07- Steering _24S1517

№	Наименование	Кол-во
1	HEX. SCREW M6 X 35 (5.000 per pack)	1
2	HEX. SCREW M6 X 40 (10.000 per pack)	1
3	HEX. SCREW M6 X 35 (10.000 per pack)	0
4	HEX CAP SCREW M6X1.0X45 S.GRIP (5.000 per pack)	4
5	HEX. NUT 1/4"-28 (10.000 per pack)	2
6	Elastic Stop Nut M6, Brass	0
7	Flat Washer 4 mm Stainless	0
8	Flat Washer M6, Stainless	2
9	Flat Washer M6, Stainless	0
10	HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack)	0
12	HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack)	2
13	FLAT WASHER M6.6 X 22 (10.000 per pack)	0
14	M6 Nut Housing Ass'y	2
15	Nut Housing Ass'y	4
16	CAP BLACK (2.000 per pack)	2
17	BALL JOINT	2
18	HEX. SCREW M6 X 50 (25.000 per pack)	2
19	AJUSTMENT KNOB	1
20	HALF RING	2
21	STEERING CABLE ASS Y	1
22	Tie-Rap 180 mm	1
25	SMALL BOOT	2
26	EMBOUT GRAND *END PIECE	2
27	DIRECTION	1
28	STEERING COVER	1
29	THROTTLE HANDLE	1
30	HANDLE BAR FOAM	1
31	HANDLE GRIP	2
32	RH HOUSING COVER	1
34	REVERSE HANDLE	1
35	STEERING PAD SILVER	1
36	WEAR RING	1
37	SPACER	1
38	THRUST SUPPORT ASS Y	1
39	STEERING CABLE LOCK	1
40	WEAR RING	1
43	LH HOUSING COVER	1
47	SUPPORT-ASS *SUPPORT-ASS	1
48	KNOB SWITCH GREY	1
49	DEFLECTOR	1
51	CABLE GROMMET	1
52	Mount Dart	1
53	Tie-Rap 350 mm	1
56	RUBBER WASHER (10.000 per pack)	1
57	BUSHING	2
58	CAP FAN (5.000 per pack)	1
