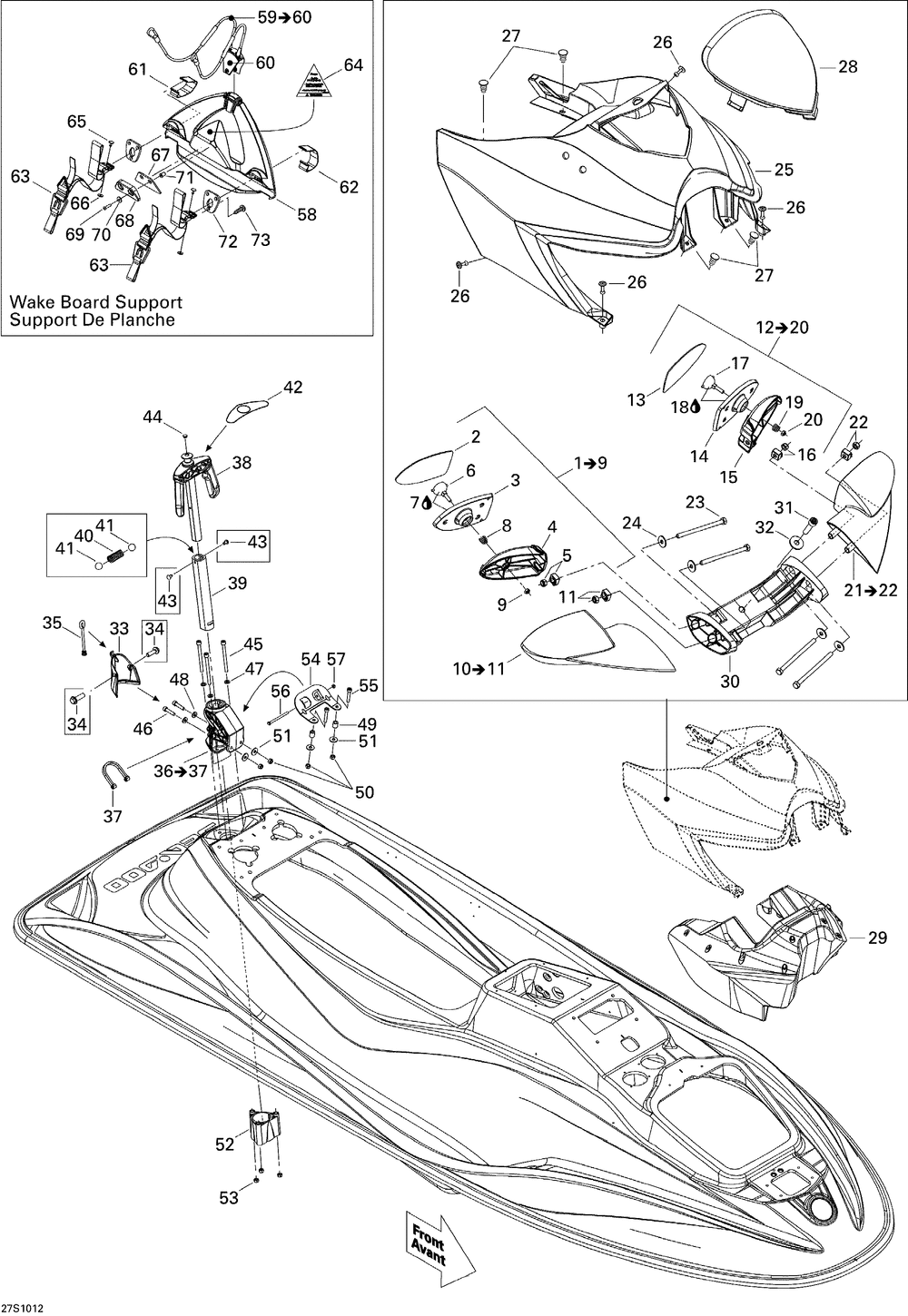

09- Body Front View

Корзина пуста
SEA-DOO WAKE 155 Wake 155 09- Body Front View
09- Body Front View
№ Наименование Примечание Кол-во
1 RH MIRROR ASS Y Includes 9 to 18 WAKE 1
3 FRAME MIRROR (WAKE ) 1
5 NUT HOUSING ASS Y (5.000 per pack) 1
6 MIRROR BALL JOINT (WAKE ) 1
7 SYNTHETIC GREASE 400 G 0
8 MIRROR SPRING 1
9 Hex. Elastic Stop Nut M6 1
10 RH MIRROR SHELL ASS Y Includes 10 to 11 1
12 LH MIRROR ASS Y Includes 23 to 32 WAKE 1
21 LH MIRROR SHELL ASS Y Includes 21 to 22 1
23 HEX. SCREW M8 X 120 (5.000 per pack) 4
24 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
25 PODIUM 1
26 POP RIVET 3/16" (5.000 per pack) 6
27 DART (2.000 per pack) 4
28 DEFLECTEUR *DEFLECTOR 1
29 FLOAT PLATFORM 1
30 MIRROR SUPPORT 1
31 SOCKET HEAD SCREW M10 X 40 (5.000 per pack) 1
32 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
33 CAPUCHON *CAP 1
34 HEX. FLANGED SCREW K40 X 13 (25.000 per pack) 2
35 SANGLE *STRAP 1
36 POST SUPPORT ASS Y Includes 36 to 37 1
37 COURROIE *STRAP 1
38 MOLDED HANDLE 1
39 ALUMINUM POST 1
40 BALL SPRING 1
41 BALL 1/4" 2
42 WARNING LABEL 1
43 TYPE "U" METALLIC DRIVE SCREW 2
44 BUMPER PLUG BLACK (6.000 per pack) 1
45 SOCKET HEAD SCREW M8 X 100 (3.000 per pack) 3
46 SOCKET HEAD SCREW M8 X 35 (5.000 per pack) 2
47 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 3
48 FLAT WASHER (5.000 per pack) 2
49 SPACER 2
50 Hex. Elastic Nut M8, Brass 4
52 FLANGE 1
54 POST REINFORCEMENT BRACE 1
55 SOCKET HEAD SCREW M8 X 45 (5.000 per pack) 2
56 HEX. SCREW M6 X 80 (10.000 per pack) 1
57 Elastic Stop Nut M6, Brass 1
58 BOARD SUPPORT (WAKE ) 1
59 ELASTIC ROPE ASS Y (WAKE ) 1
61 LH BRACKET SUPPORT (WAKE ) 1
62 RH BRACKET SUPPORT (WAKE ) 1
63 STRAP ASS Y (WAKE ) 2
64 WARNING DECAL ENGLISH SECURE BOARD (WAKE ) 1
65 Pop Rivet 3/16" 2
66 RONDELLE *WASHER (10.000 per pack) 2
67 TAMPON *GASKET (WAKE ) 1
68 SPACER 1
69 SOCKET SCREW M6 X 25 (10.000 per pack) 2
70 Flat Washer M6, Stainless 2
71 EXPANSION NUT M6 X 1 (10.000 per pack) 2
72 ATTACHE *BUCKLE (WAKE ) 4
73 SCREW-TAPP.CTSK.FL.HD.TORX tahos_8 X 1" (4.000 per pack) 12
