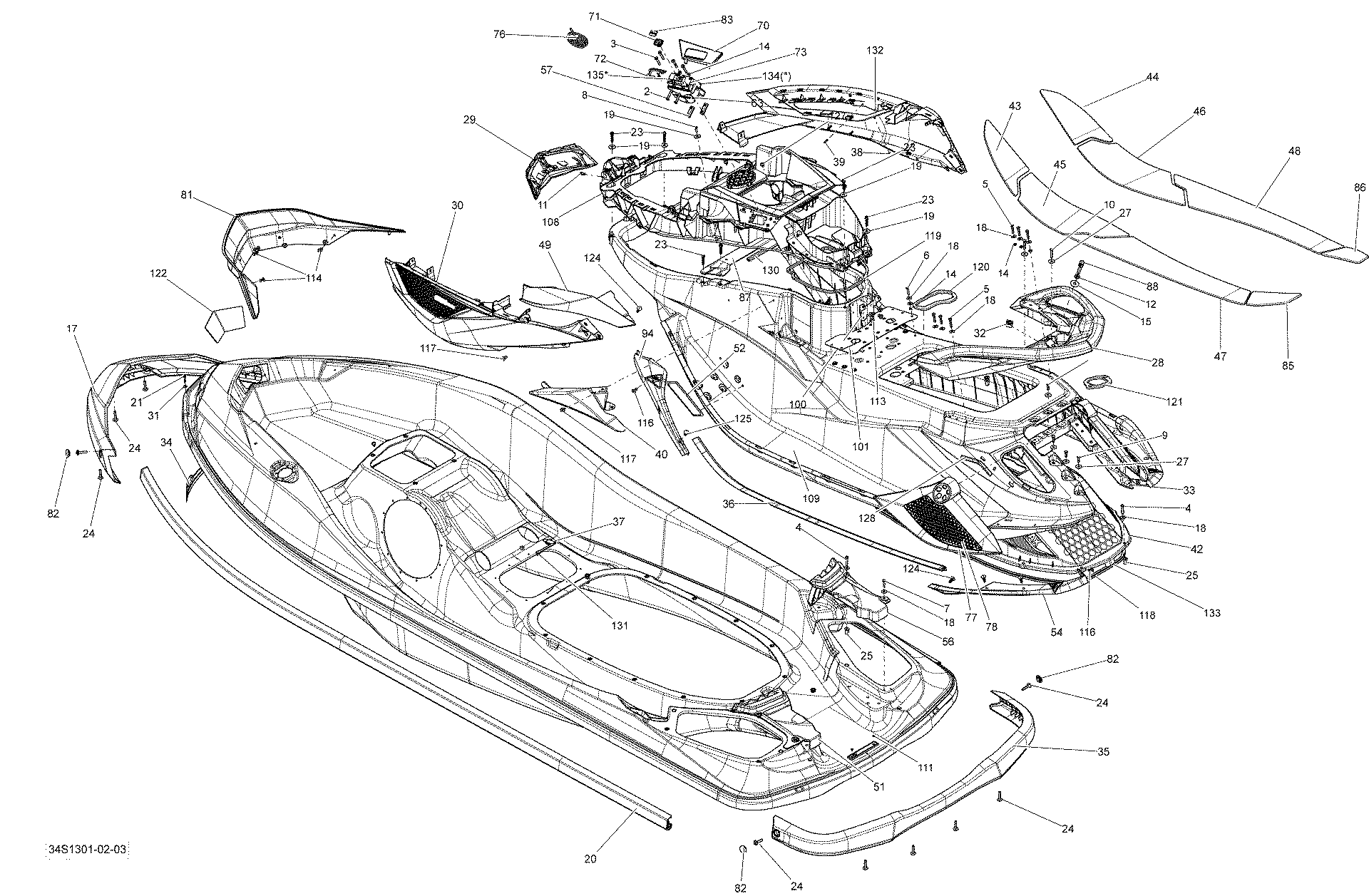

SEA-DOO RXT-X aS 260 & RS. RXT-X aS 260 & RS. 09- Body
09- Body
№ Наименование Примечание Кол-во
2 SOCKET HEAD SCREW M6 X 40 (10.000 per pack) 2
3 SOCKET SCREW HEAD M6 X 45 (2.000 per pack) 4
4 SOCKET HEAD SCREW M6 X 35 (5.000 per pack) 16
5 HEX. SCREW M6 X 30 (5.000 per pack) 6
6 HEX. SCREW M6 X 25 (5.000 per pack) 8
8 Hex. Screw M6 X 16, Scotch Grip 2
9 HEX. SCREW M6 X 20 SCOTCH GRIP (10.000 per pack) 7
10 SCREW HEX. M6 X 35 SCOTCH GRIP (10.000 per pack) 2
11 HEX. FORMING SCREW M6 X 16 (5.000 per pack) 2
12 HEX. JAM NUT M10 (5.000 per pack) 1
14 Elastic Stop Nut M6, Brass 0
15 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
17 PARE CHOCS *FRONT BUMPER 1
18 Flat Washer M6, Stainless 36
19 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 8
20 LATERAL BUMPER 2
21 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 9
22 OVAL PHILIPP SCREW KA30 X 12 (10.000 per pack) 6
23 PLASTITE HEX. SCREW M6.8 X 35 (5.000 per pack) 10
24 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 11
25 EXPANSION NUT M6 X 1 (10.000 per pack) 16
27 FLAT WASHER M6.6 X 22 (10.000 per pack) 9
28 REAR HANDLE 1
29 GRILLE AVANT *FRONT GRILL 1
30 LH FRONT MOULDING ASS Y RXT aS 1
31 Flat Washer 4 mm Stainless 9
32 LOGEMENT ECROU *HOUSING-NUT 1
33 REAR PIVOT ASS Y 1
34 DECK NOSE 1
35 PARE-CHOCS ARR*REAR BUMPER 1
36 MID JOINT 2
37 DOUBLE CAP 1
38 Push Nut 4
39 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 16
40 LH SEAT PAD BLACK 1
41 RH SEAT PAD BLACK 1
43 LH FRONT CARPET 1
44 RH FRONT CARPET 1
45 LH CENTER FRONT CARPET 1
46 RH CENTER FRONT CARPET 1
47 LH CENTER REAR CARPET 1
48 RH CENTER REAR CARPET 1
49 LH UPPER CAP 1
49 RH UPPER CAP 1
51 LH REAR GRILL 1
52 LH FOOTREST COVER 1
52 RH FOOTREST COVER 1
54 LH REAR SCRAPER JOINT 1
54 RH REAR SCRAPER JOINT 1
56 RH REAR GRILL 1
57 DOUBLE CAGE NUT ASS Y 2
70 FRONT REWINDER CAP 1
71 BUTTON 1
72 UNDER CAM 1
73 ROPE GUIDE 1
76 ROPE 3/16" (3.000 per pack) 0
77 LH LATERAL REAR TRIM 1
77 RH LATERAL REAR TRIM 1
78 LH REAR SIDE GRILLE 1
78 RH REAR SIDE GRILLE 1
81 BODY DEFLECTOR 1
82 BUMBER CAP 4
83 BUTTON CAP 1
84 INSIDE COVER 1
85 LH REAR CARPET 1
86 RH REAR CARPET 1
87 RENFORT MODULE *STIFFENER MOD 1
88 SEAT STUD 1
94 JOINT AV GA *FRONT LH JOINT 1
94 JOINT AV DR *FRONT RH JOINT 1
100 SEAT PIVOT 1
101 UPPER REINFORCEMENT 1
106 LOWER CENTRAL REINFORCEMENT 1
109 UPPER BODY ASS Y 1
111 BLACK SNAP CAP (50.000 per pack) 2
113 POP RIVET 3/16 (4.000 per pack) 4
114 POP RIVET 3/16" (5.000 per pack) 0
118 LIP SEAL 1
119 NEOPRENE SEAL 1
120 LIP SEAL 1
121 LIP SEAL 1
122 TAMPON *GASKET 1
124 BLACK DART (5.000 per pack) 10
125 BLACK DART FAN (10.000 per pack) 2
127 Rubber Bumper 3
128 Gasket, Neoprene 2
130 PROTECTION TRIM 1
131 CAP (5.000 per pack) 0
132 RH FRONT MOULDING ASS Y RXT aS 1
133 DECK EXTENSION ASS Y 1
134 RETRACTABLE ROPE ASS Y 1
135 JAM CLEAT SYSTEM ASS Y 1
