SEA-DOO GTI LTD 155 GTI LTD 155 10- Electrical Harness Main Harness_13S1415a

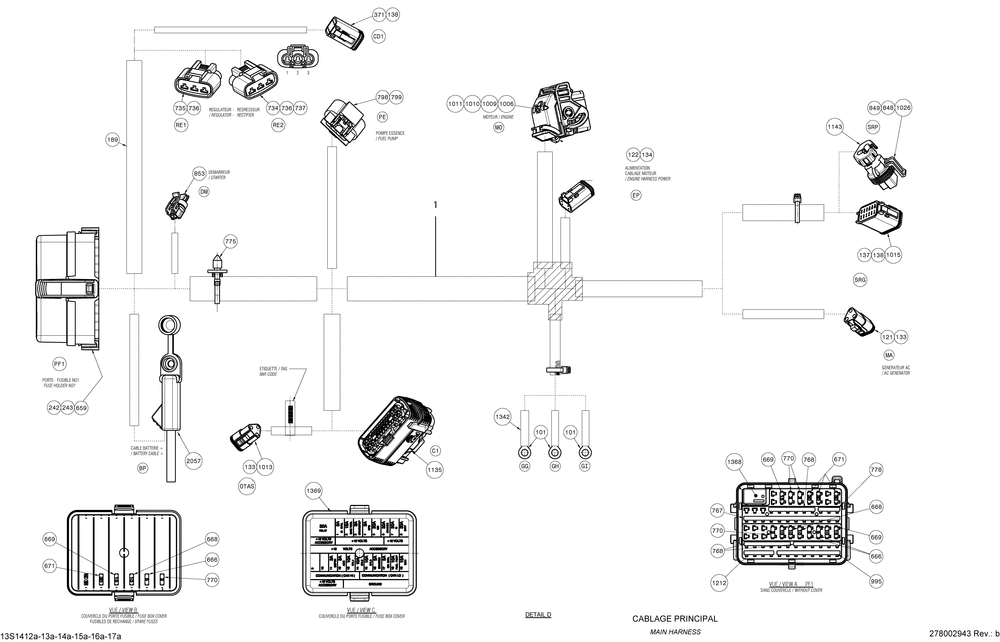

10- Electrical Harness Main Harness_13S1415a
№ Наименование Примечание Кол-во
1 WIRING HARNESS 1
101 OPEN BARREL (10.000 per pack) 1
121 FEMALE HOUSING 3 CIRCUITS 1
122 MALE CONNECTOR 4 CIRCUITS 1
133 FEMALE LOCK 1
134 CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack) 1
137 Female Lock, 12 Circuits 1
138 Sealing Cap 1
242 Wire Seal 1
243 WIRE SEAL (10.000 per pack) 1
371 Male Wedge 6 Circuits 1
659 Wire Seal (20 Gauge) (Purple) (Packard) 1
666 Little Fuse, 5 Amperes 1
668 Little Fuse, 10 Amperes 1
669 Little Fuse, 15 Amperes 1
671 LITTLE FUSE 30 AMPERES 1
734 HOUSING 3 CIRCUITS 1
735 HOUSING 3 CIRCUITS 1
736 Seal 1
737 CAP 1
767 BUS BAR 1
770 LITTLE FUSE 3 AMP 1
775 Mount Dart 1
798 MALE HOUSING 4 CIRCUITS 1
799 Wire Seal 1
848 PLUG 1
849 Wire Seal 1
853 Wire Seal 1
1006 Female Terminal Housing, 48 Circuits 1
1009 Cover 1
1010 Plug 1
1011 Plug 1
1013 FEMALE TERMINAL HOUSING 3 CIRCUITS 1
1015 Female Terminal Housing, 12 Circuits 1
1026 FEMALE TERMINAL HOUSING 3 CIRCUITS (2.000 per pack) 1
1135 CONNECTEUR *HOUSING 1
1143 LOCK 1
1212 JUNCTION BAR (4 PINS) 1
1342 Shrink Tubing 6 mm 1
1368 RELAY 30 AMP. 1
1369 FUSE COVER 1
2057 BATTERY CABLE 1
