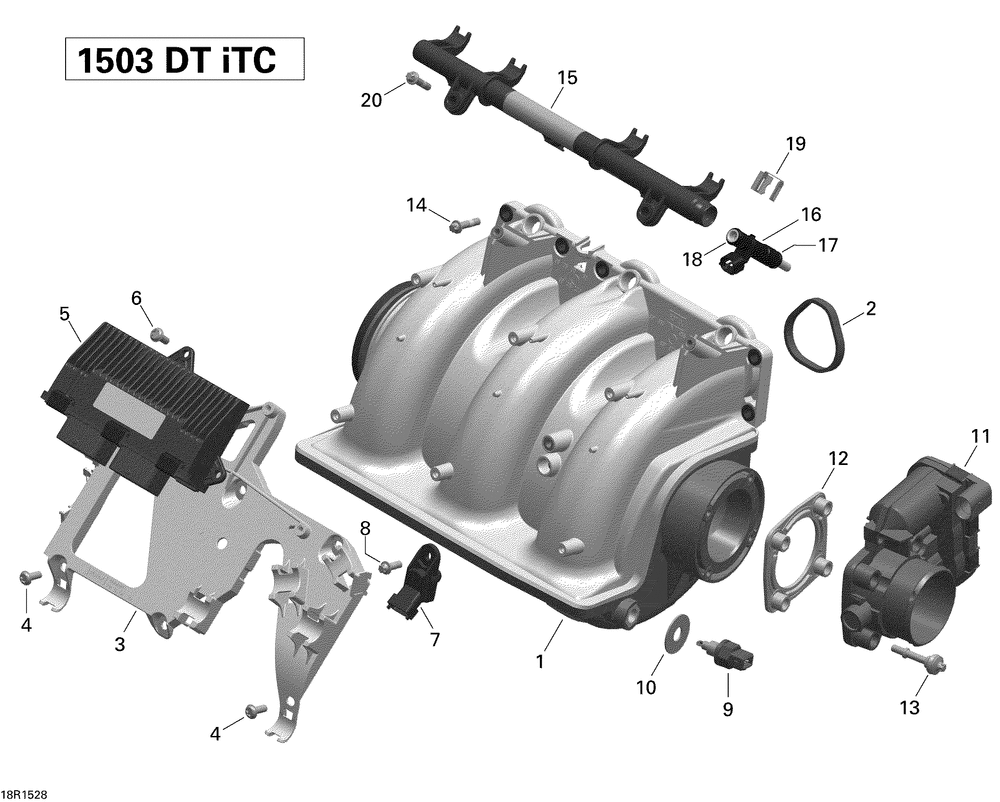

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR INTAKE MANIFOLD Includes 1 to 2 | 1 | |
| 2 | JOINT ETANCHE *GASKET | 3 | |
| 3 | BASE PLATE | 1 | |
| 4 | Flanged Torx Screw M6 X 16 | 6 | |
| 5 | ELECTRONIC BOX | 1 | |
| 7 | PRESSURE SENSOR | 1 | |
| 8 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 1 | |
| 9 | TEMPERATURE SENSOR | 1 | |
| 10 | THRUST WASHER | 1 | |
| 11 | THROTTLE BODY SOCKET ASSY.1503 HO ETC | 1 | |
| 12 | RUBBER GASKET | 1 | |
| 13 | TORX SCREW M6 X 30.5 | 4 | |
| 14 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 7 | |
| 15 | FUEL RAIL ASS Y | 1 | |
| 16 | FUEL INJECTOR Includes 16 to 18 | 3 | |
| 17 | O-Ring | 3 | |
| 18 | O-Ring | 3 | |
| 19 | Clip | 3 |
