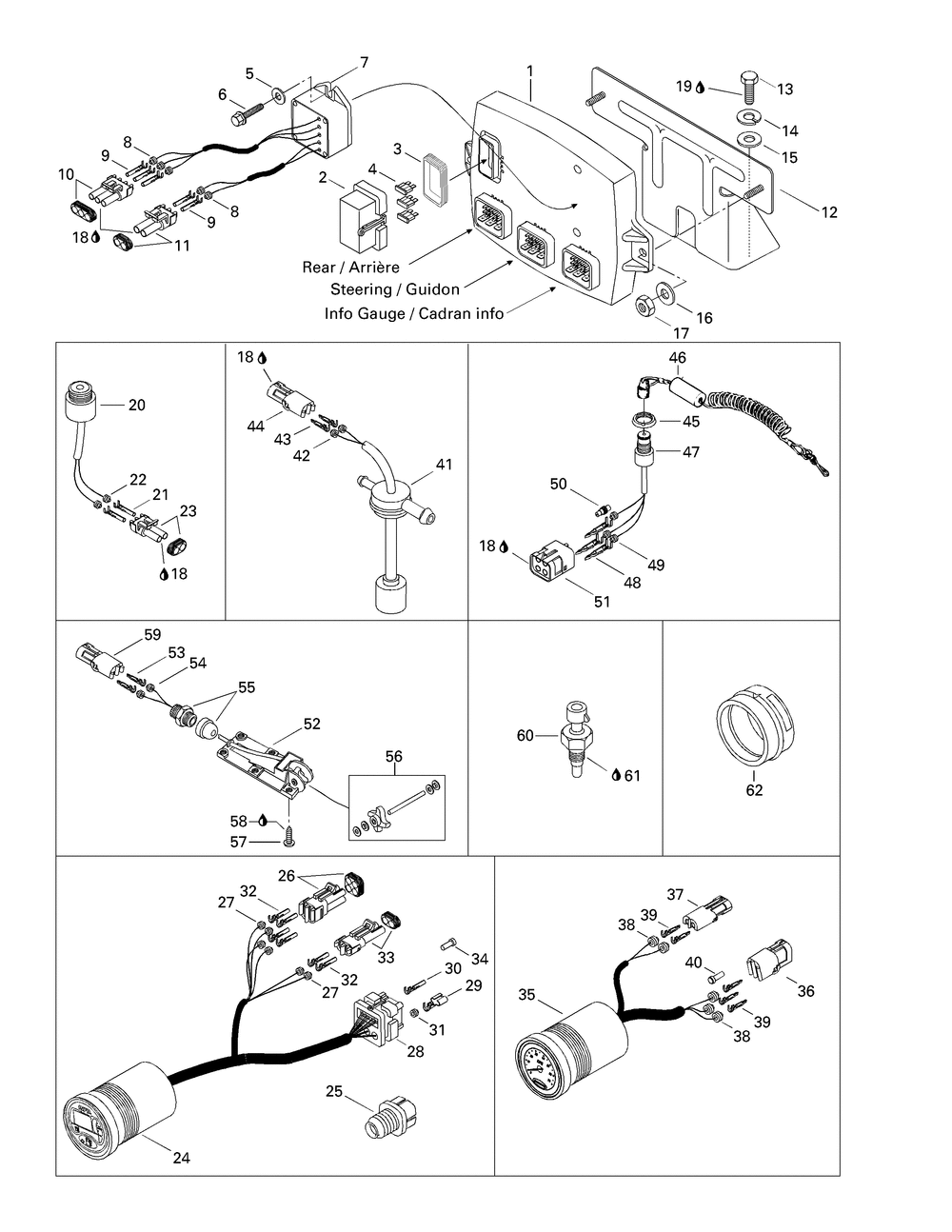

SEA-DOO GSX, 5624 GSX, 5624 10- Electronic Module And Electrical Accessories
10- Electronic Module And Electrical Accessories
№ Наименование Примечание Кол-во
FUSE 5 AMPERES (5.000 per pack) 2
FUSE 7.5 AMPERES (5.000 per pack) 2
1 MODULE ELECTRON*MODULE-ELECT. Includes 1 - 4. 1
2 FUSE COVER 1
3 COVER SEAL 1
4 FUSE 15 AMPERES (5.000 per pack) 2
5 FLAT WASHER M6 STAINLESS (25.000 per pack) 2
6 HEX. FORMING SCREW M6 X 16 (5.000 per pack) 2
7 REDRESSEUR ASS.*RECTIFIER-ASSY Includes 7 - 11. 1
8 Wire Seal 5
9 FEMALE TERMINAL 5
10 MALE HOUSING 3 CIRCUITS 1
11 MALE CONNECTOR 2 CIRCUITS 1
12 SUPP.MODULE *SUPP-MODULE 1
13 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 4
14 HELICAL LOCK WASHER M5 (5.000 per pack) 4
15 FLAT WASHER 5 MM STAINLESS (10.000 per pack) 4
16 FLAT WASHER M6 STAINLESS (10.000 per pack) 2
17 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 2
18 DIELECTRIC GREASE 150 G 0
19 LOCTITE 271 10 ML 0
20 BUZZER Includes 11 - 14. 1
21 FEMALE TERMINAL (5.000 per pack) 2
24 CADRAN INFO *GAUGE-LCD Includes 24 - 34. 1
25 GROMMET 1
26 MALE CONNECTOR 4 CIRCUITS GTI RFI LE 1
27 Wire Seal (20 Gauge) (Purple) (Packard) 5
28 MALE CONNECTOR 26 CIRCUITS 1
29 FEMALE TERMINAL (5.000 per pack) 3
30 FEMALE TERMINAL (5.000 per pack) 23
31 WIRE SEAL (5.000 per pack) 3
33 CADRAN VITESSE *SPEEDOMETER Includes 17 - 22. 1
34 WIRE SEAL (5.000 per pack) 1
36 BLOC 4 CIRC.FEM*HOUSING-TAB GTI RFI LE 1
37 Female Housing, 2 Circuits 1
39 Male Terminal 5
41 OIL LEVER SENSOR ASS Y Includes 30 - 33. 1
45 SAFETY NUT 1
46 SAFETY LANYARD ANTITHEFT 1
47 WIRE SEAL Includes 15 - 19. (5.000 per pack) 1
52 WIRE SEAL Includes 33 - 38. (10.000 per pack) 1
55 ELECTRIC CONNECTION GTI RFI LE 1
56 PADDLE WHEEL KIT GTI RFI LE 1
57 PHILLIPS SCREW M5 X 10 (5.000 per pack) 6
58 LOCTITE 243 10 ML 0
60 TEMPERATURE SENSOR 1
61 LOCTITE 518 50 ML 0
62 GAUGE SUPPORT DS 650 Baja. 2
