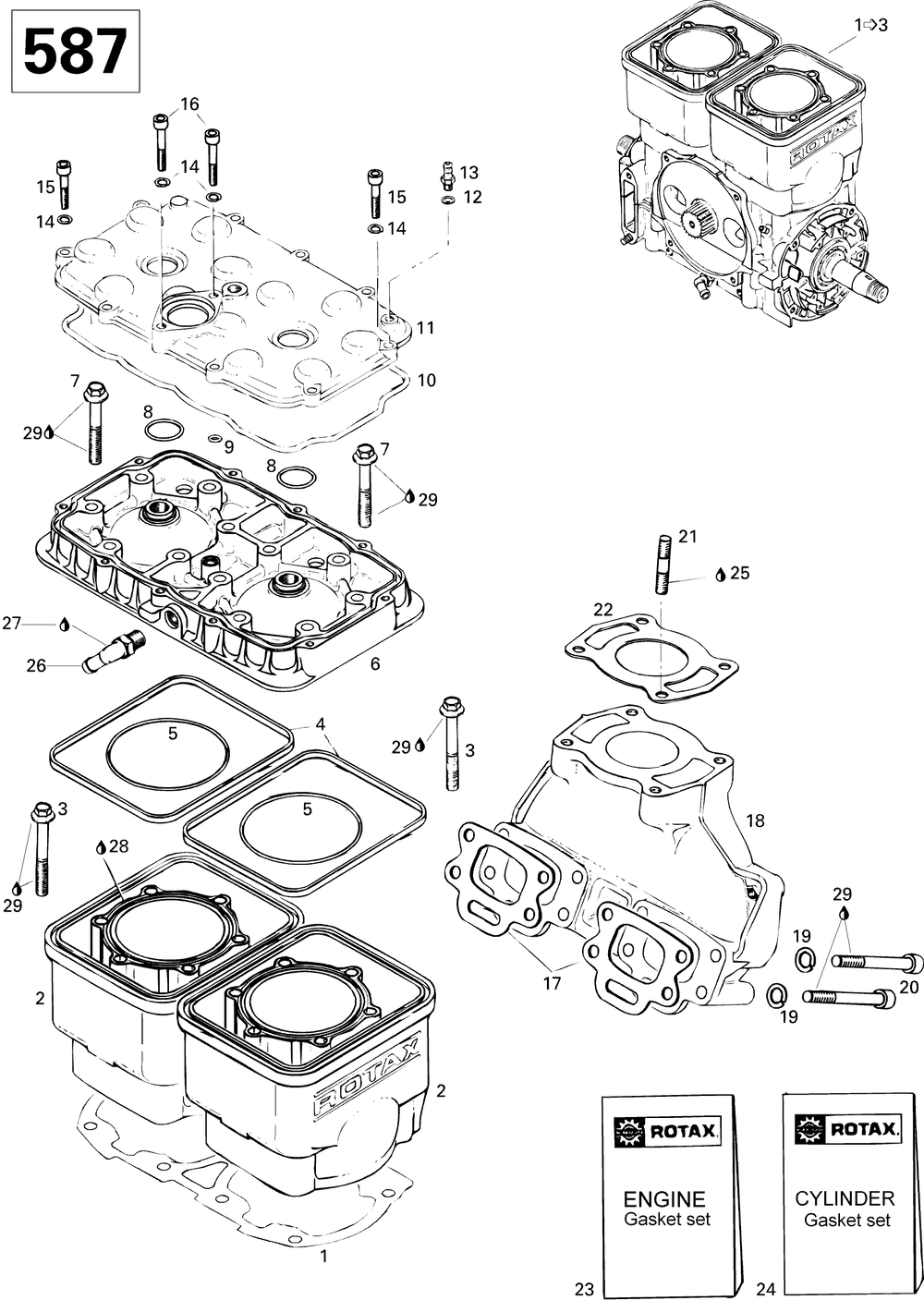

01- Cylinder And Exhaust Manifold 587

SEA-DOO SP, 5876 SP, 5876 01- Cylinder And Exhaust Manifold 587

№	Наименование	Кол-во
1	MOTEUR 587 SEMI*BLOCK-SHORT587 Includes 1 to 20 Except 245	0
1	CYLINDER GASKET 0.5MM	1
2	CYLINDRE BLANC *CYLINDER-ASSY.	2
3	HEX. FLANGED SCREW M8 X 68.5 (5.000 per pack)	8
4	BAGUE ETANCHE *RUBBER RING (5.000 per pack)	2
5	O-RING	2
6	CULASSE BLANCHE*HEAD-CYLINDER	1
7	HEX. FLANGED SCREW M8 X 55 (5.000 per pack)	12
8	O-RING (10.000 per pack)	2
9	JOINT TORIQUE *O-RING (10.000 per pack)	1
10	O-RING	1
11	COUV.CULASSE *COVER-CYL.HEAD	1
13	RACCORD BOYAU *FITTING-HOSE	1
14	RONDELLE FREIN *WASHER-LOCK (10.000 per pack)	11
15	SOCKET HEAD SCREW M6 X 25 (10.000 per pack)	9
16	SOCKET HEAD SCREW M6 X 35 (5.000 per pack)	2
17	GASKET (2.000 per pack)	2
18	COLLECT.ECHAPP.*MANIFOLD-EXH.	1
19	WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack)	8
20	VIS ALLEN *SCREW-SOCKET (5.000 per pack)	8
21	STUD M8 X 26	1
22	EXHAUST GASKET	1
23	ENS.JOINT ETANC*SET-GASKET	0
24	ENS.JOINT CYL. *SET-GASKET CYL	0
26	ELBOW FITTING 90	1
27	LOCTITE PIPE SEALANT 250 ML	0
28	LOCTITE 518 50 ML	0
29	DOW CORNING 111*DOW CORNING 111	0
30	GASKET (5.000 per pack)	0
