SEA-DOO GTI 90 GTI 90 05- Propulsion GTI - 90

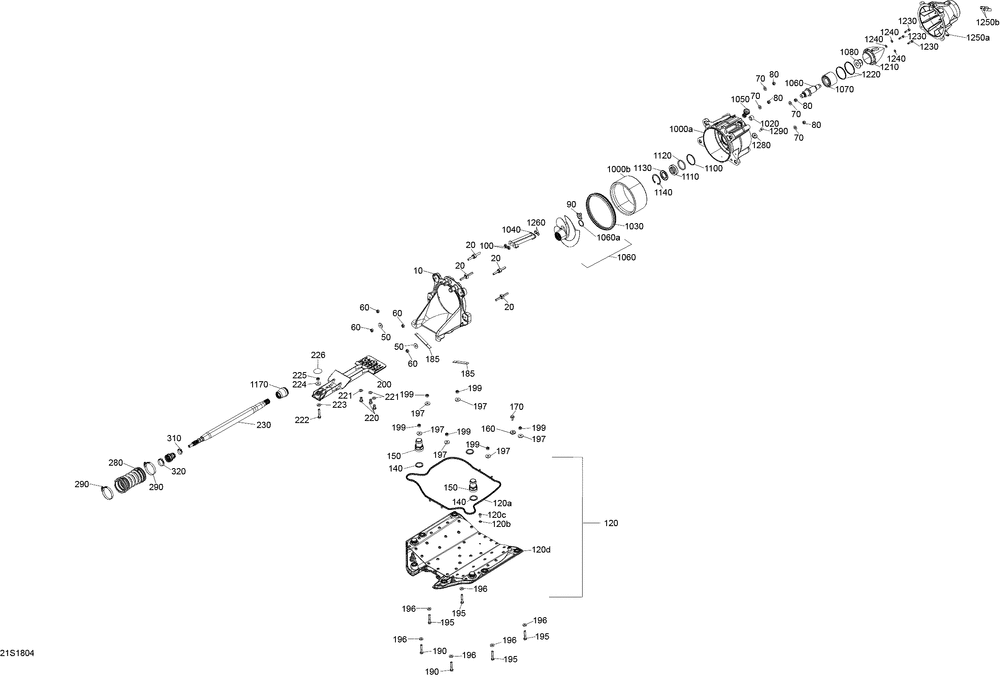

05- Propulsion GTI - 90
№ Наименование Примечание Кол-во
10 SUPPORT POMPE *PUMP SUPPORT 1
20 SQUARE STUD 4
50 FLAT WASHER 2
60 Hex. Elastic Nut M8, Brass 4
70 FLAT WASHER (5.000 per pack) 4
90 REDUCER 1
100 WATERTIGHT SEAL 2
120 RIDING PLATE ASS Y 1
120a JOINT ETANCHE *SEAL 1
120b SEALING WASHER 16
120c TORX SCREW M6 X 14 40
120d SOCKET DRAIN PLUG M6 X 12 (4.000 per pack) 1
140 O-RING 2
150 STRAIGHT PLASTIC FITTING 2
160 ANODE ZINC 1
170 Hex Screw M6 X 20 1
185 Gasket, Neoprene 2
190 HEXAGONAL HEAD CAP SCREW M8 X 45 2
200 PUMP GRATE 1
220 HEX. SCREW M8 X 16 SCOTCH GRIP (10.000 per pack) 3
221 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 3
226 PROTECTOR DISK 1
230 DRIVESHAFT 1
280 BELLOW 1
290 NORMA CLAMP (2.000 per pack) 2
310 Oetiker Gear Clamp 1
320 OETIKER CLAMP 1
1000a HOUSING IMPELLER ANODIZED 1
1000b WEAR RING 1
1020 PLUG PLASTIC BLACK 1
1030 NEOPRENE SEAL 1
1040 WATER OUTLET 1
1050 PLUG 1
1060 IMPELLER SHAFT 1
1070 ANGLED BEARING 1
1080 ELASTIC FLANGED NUT M20 (2.000 per pack) 1
1100 O-RING 1
1110 OIL SEAL 1
1120 SPACER 1
1130 OIL SEAL 1
1140 CIRCLIP 1
1160 IMPELLER ASSEMBLY Includes 300 to 300c 1
1160a O-RING Except Engine 130 (10.000 per pack) 1
1170 IMPELLER BOOT 1
1210 IMPELLER COVER 1
1220 O-RING 2
1230 SOCKET HEAD SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 3
1240 Flat Washer M6, Stainless 3
1250a VENTURI *VENTURI GTI 1
1250b SIPHON TUBE (10.000 per pack) 2
1260 O-RING (10.000 per pack) 2
