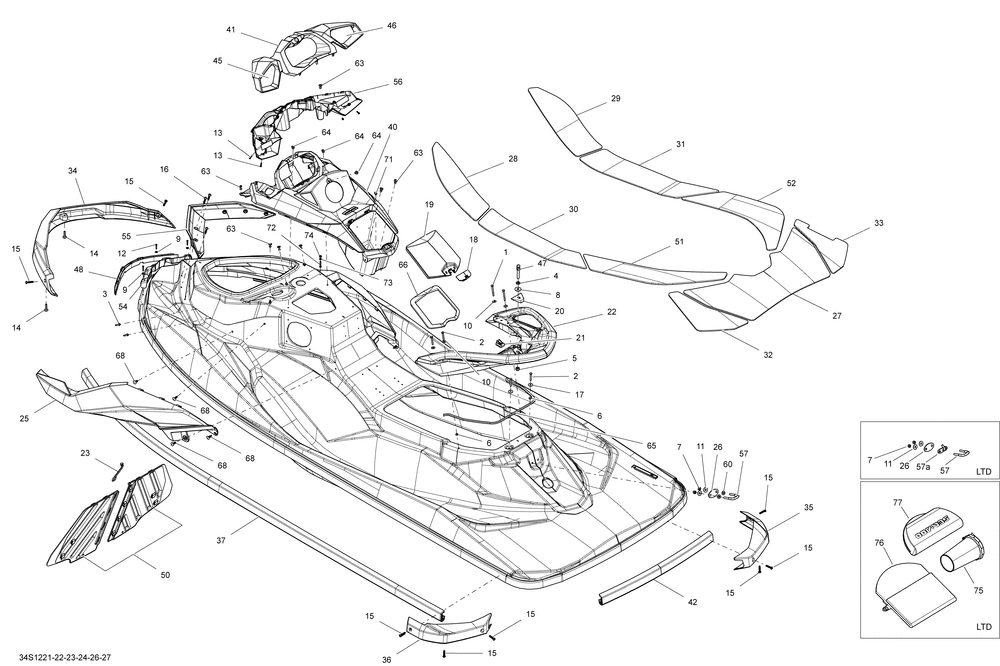

SEA-DOO GTS 130 & Rental 99 (43CA, 43CB, 25CB) GTS 130 & Rental 99 (43CA, 43CB, 25CB) 09- Body
09- Body
№ Наименование Примечание Кол-во
1 HEX. SCREW M6 X 55 (5.000 per pack) 2
2 HEX. SCREW M6 X 40 (5.000 per pack) 4
3 HEX SCREW 10 14 X 7/8" (5.000 per pack) 4
4 HEX. JAM NUT M10 (5.000 per pack) 1
5 NUT-STOP ELASTIC DIN.985 (4.000 per pack) 1
6 Elastic Stop Nut M6, Brass 4
7 Hex. Elastic Nut M8, Brass 2
8 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
9 Flat Washer 4 mm Stainless 3
10 Flat Washer M6, Stainless 6
11 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
12 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 3
13 Flanged Torx Screw K40 X 16 4
14 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 2
15 TORX PLASTITE WASHER SCREW M6.81 X 3 (5.000 per pack) 8
17 FLAT WASHER M6.6 X 22 (10.000 per pack) 4
18 LATCH BLACK 1
19 GLOVEBOX ACCESS DOOR 1
20 SEAT STUD SPACER 1
21 SEAT STUD SUPPORT 1
22 REAR HANDLE 1
23 SANGLE *STRAP 1
25 WHITE RH COSMETIC PANEL 1
25 ENJOLIVEUR GA *LH PANEL 1
26 FINITION PLATE BLACK 1
27 SWIM PLATFORM CARPET 1
28 LH FRONT CARPET 1
29 RH FRONT CARPET 1
30 LH FRONT CENTER CARPET 1
31 RH FRONT CENTER CARPET 1
32 LH REAR CARPET 1
33 RH REAR CARPET 1
34 PARE CHOCS *FRONT BUMPER 1
35 COIN P.-CHOC *BUMPER CORNER 1
36 COIN P.-CHOC *BUMPER CORNER 1
37 BUMPER 2
40 CONSOLE *CONSOL 1
41 ENJO CADRAN *BEZEL ASS Y 1
45 LH MIRROR 1
46 RH MIRROR 1
47 SEAT STUD 1
48 DECK NOSE 1
50 DIVIDER ASS Y 1
51 LH REAR CENTER CARPET 1
52 RH REAR CENTER CARPET 1
54 BUMPER SUPPORT 1
55 BODY DEFLECTOR 1
56 MIRROR SUPPORT 1
57 U-CLAMP 1
60 FLAT WASHER (5.000 per pack) 2
63 POP RIVET 3/16" (5.000 per pack) 7
64 POP RIVET 3/16 (4.000 per pack) 3
66 JOINT ETANCHE *GASKET 1
68 BLACK DART (5.000 per pack) 8
71 Rubber Bumper 1
72 HEX. FLANGED SCREW M5 X 30 (5.000 per pack) 2
73 Flat Washer 3
74 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
