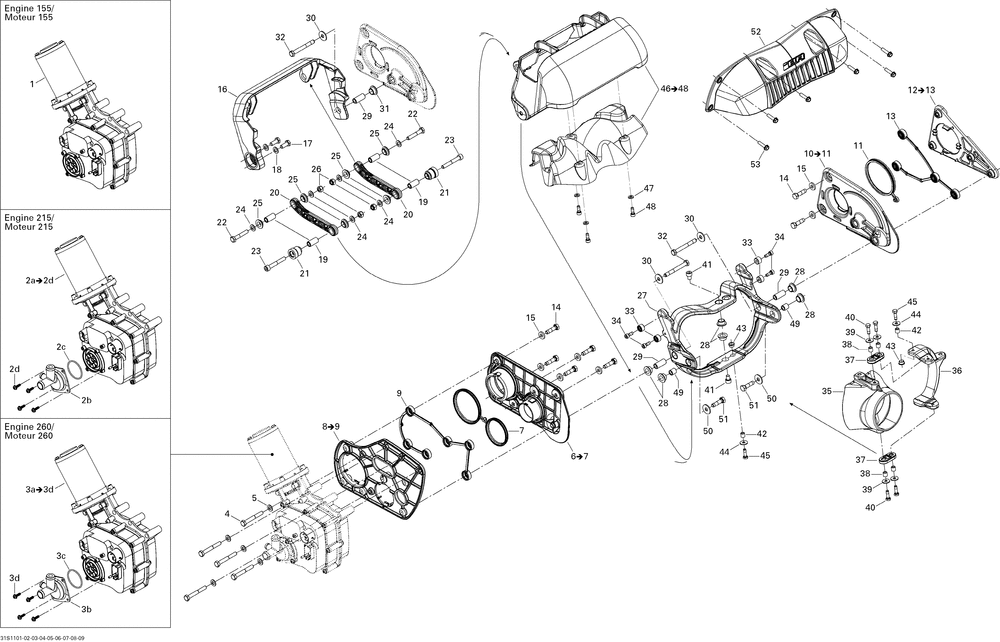

05- Reverse

№	Наименование	Кол-во
2a	ACTUATEUR IBR *IBR ACTUATOR Includes 2a to 2d	1
2b	COOLING COVER	1
2c	O-RING	1
2d	TORX SCREW STAINLESS (4.000 per pack)	4
4	HEX. SCREW M8 X 60 SCOTCH GRIP (5.000 per pack)	5
5	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	5
6	LH SUPPORT PLATE ASS Y Includes 6 to 7	1
7	LH FORMED SEAL	1
8	PLAQUE FIXATION*FIXING PLATE Includes 8 to 9	1
9	LH FORMED SEAL	1
10	RH SUPPORT PLATE ASS Y Includes 10 to 11	1
11	RH FORMED SEAL	1
12	PLAQUE FIXATION*FIXING PLATE Includes 12 to 13	1
13	RH FORMED SEAL	1
14	HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack)	7
15	FLAT WASHER (5.000 per pack)	7
16	"U" ARM BLACK	1
17	Hex. Screw M8 X 20, Scotch Grip	2
19	SPACER	4
20	LINKAGE ARM	2
21	BUSHING	2
22	HEX. SCREW M8 X 45 (5.000 per pack)	2
23	SOCKET HEAD SCREW M8 X 55 (2.000 per pack)	2
25	VENTURI BUSHING (5.000 per pack)	6
26	Hex. Elastic Nut M8, Brass	4
27	TRIMMING RING BLACK	1
28	VENTURI BUSHING (2.000 per pack)	6
29	SPACER	3
30	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	3
32	HEX. SCREW M8 X 70 SCOTCH GRIP	3
33	FRICTION SLEEVE	4
34	Socket Head Screw M6 X 16, Scotch Grip	4
35	JET PUMP NOZZLE	1
36	DIRECTION NOZZLE LEVER BLACK	1
37	DIRECTION LEVER ARM	2
38	SPACER	4
39	Flat Washer M6, Stainless	4
40	HEX. SCREW M6 X 20 SCOTCH GRIP (10.000 per pack)	4
41	Socket Head Screw M8 X 10, Scotch Grip	2
43	BUSHING	2
46	SPACER	1
47	Flat Washer M6, Stainless	3
49	SPACER	2
52	GUARD	1
53	HEX. FLANGED SCREW M6.81 X 25 PLASTITE (5.000 per pack)	6
