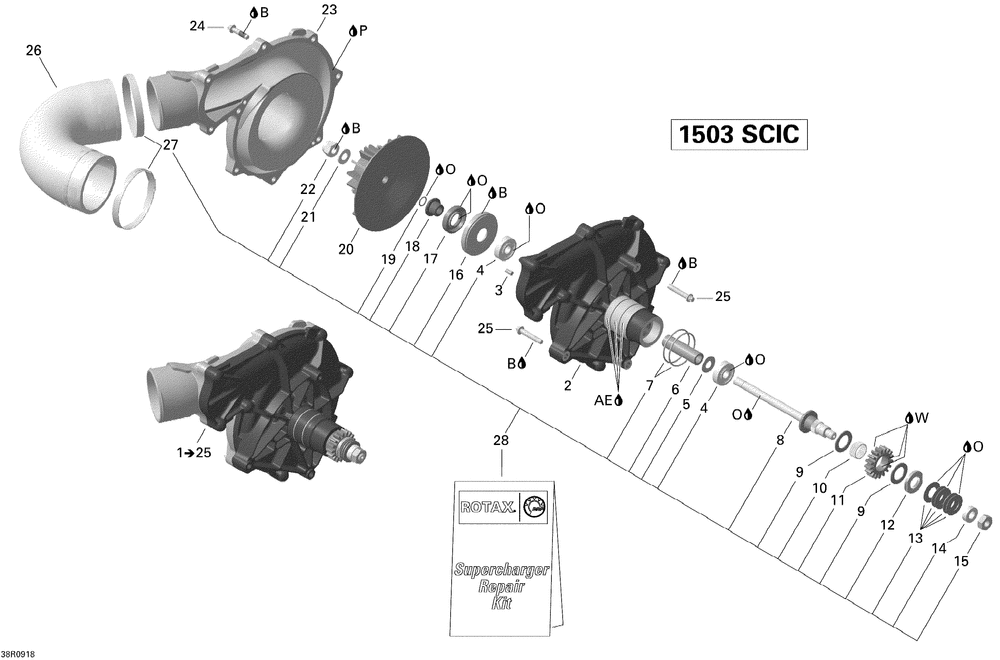

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| AE | GRAISSE *GREASE | 0 | |
| B | LOCTITE 243 10 ML | 0 | |
| P | LOCTITE 5910 300 ML | 0 | |
| W | ISOFLEX GREASE TOPAS NB52 50 G | 0 | |
| 1 | SUPERCHARGER ASS Y Includes 1 to 25 | 1 | |
| 2 | COMPRESSOR BASE PLATE | 1 | |
| 3 | Drive Pin 5 X 10 | 2 | |
| 4 | BALL BEARING | 2 | |
| 5 | Thrust Washer | 1 | |
| 7 | O-RING | 2 | |
| 10 | NEEDLE PIN | 1 | |
| 12 | LOCK WASHER | 1 | |
| 15 | HEX. NUT | 1 | |
| 16 | THRUST WASHER | 1 | |
| 17 | OIL SEAL | 1 | |
| 18 | STEP COLLAR | 1 | |
| 19 | O-RING | 1 | |
| 20 | COMPRESSOR IMPELLER | 1 | |
| 21 | SHIM | 1 | |
| 22 | CAP NUT | 1 | |
| 23 | COMPRESSOR HOUSING | 1 | |
| 24 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 9 | |
| 25 | FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack) | 3 | |
| 26 | FORMED HOSE | 1 | |
| 27 | GEAR CLAMP | 2 | |
| 28 | SUPERCHARGER KIT | 1 |
