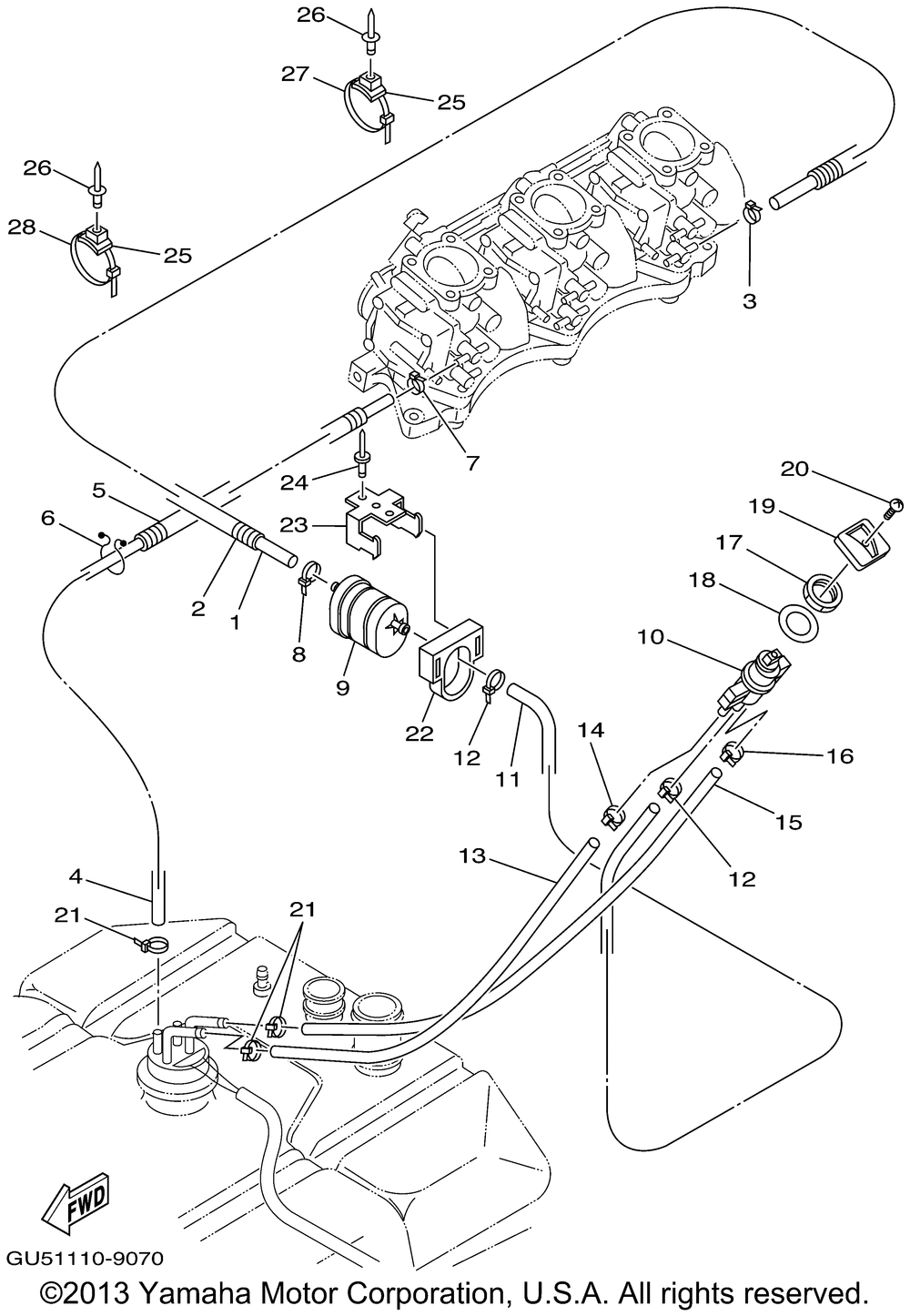

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE (L1400) | 1 | |
| 2 | HOSE (L800) | 1 | |
| 3 | CLAMP | 1 | |
| 4 | HOSE (L910) | 1 | |
| 5 | HOSE (L200) | 1 | |
| 6 | CLAMP | 1 | |
| 9 | FILTER ASSY | 1 | |
| 10 | FUEL COCK ASSY 1 | 1 | |
| 11 | HOSE (L740) | 1 | |
| 13 | HOSE (L600) | 1 | |
| 15 | HOSE (L600) | 1 | |
| 17 | NUTHEXAGON | 1 | |
| 18 | WASHER PLAIN YMUS | 1 | |
| 19 | LEVER COCK | 1 | |
| 20 | SCREW BIND | 1 | |
| 21 | CLAMP | 3 | |
| 22 | HOLDER FILTER | 1 | |
| 23 | BRACKETFUEL FLTER | 1 | |
| 24 | RIVETBLIND | 2 | |
| 25 | CLAMP | 6 | |
| 26 | RIVETBLIND (5 per pack) | 6 | |
| 27 | BAND | 5 | |
| 28 | BAND | 1 |
