SEA-DOO 210 Wake 430 210 Wake 430 09- Seat

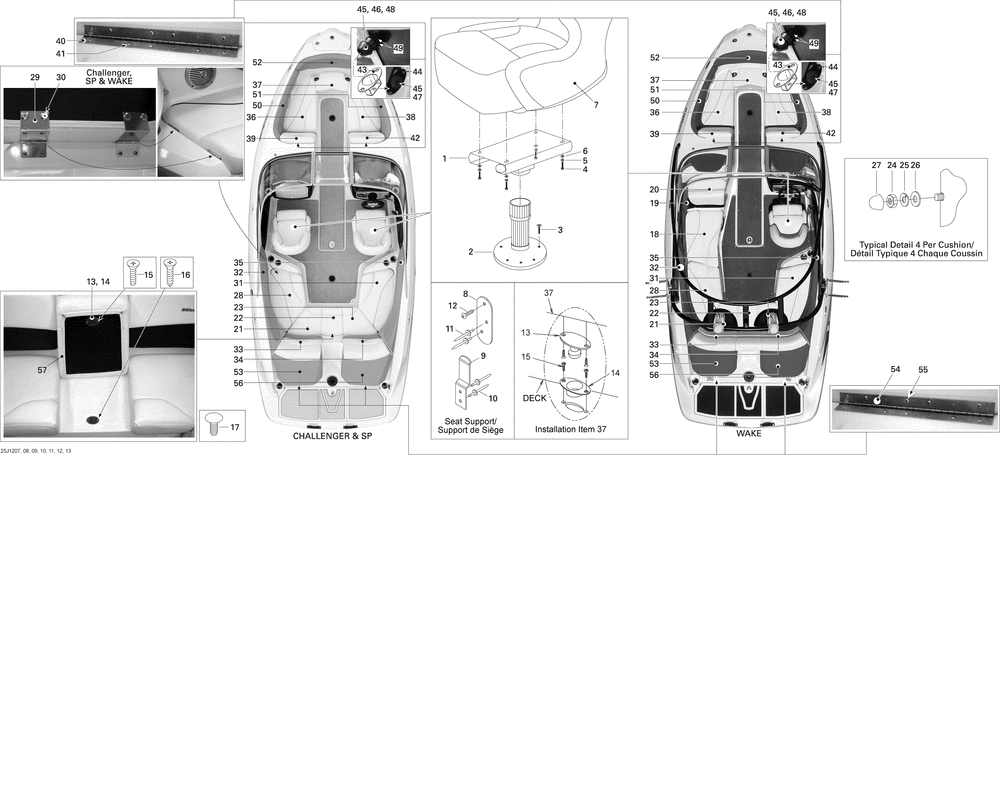

09- Seat
№ Наименование Примечание Кол-во
1 SLIDE AND SWIVEL SEAT BASE 1
2 SEAT PEDESTAL 1
3 PHILLIPS SCREW 1/4"-20 X 1-1/4" 6
4 HEX. SCREW 1/4"-20 X 1tahos_ SCOTCH GRIP 4
5 RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack) 4
6 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
7 BUSKET SEAT 1
8 SEAT SUPPORT 15
9 SEAT SUPPORT 32
10 POP RIVET 3/16" (5.000 per pack) 64
11 POP RIVET 5/32" (10.000 per pack) 30
12 PHILLIPS SCREW tahos_8 X 1/2tahos_ (10.000 per pack) 13
13 BALL FASTENER/NYLON 4
14 SOCKET FASTENER/NYLON 4
15 SCREW 8 X 3/4tahos_ (10.000 per pack) 14
16 PHILLIPS SCREW M4 X 20 (5.000 per pack) 2
18 CUSHION ASS Y SPOTTER 1
19 BACKREST SPOTTER PORT SIDE 1
20 STORAGE BACKREST SPOOTTER PORT SIDE 1
21 REAR CUSHION ASS Y PORT SIDE 1
22 REAR CUSHION ASS Y CENTER 1
23 REAR CUSHION ASS Y STARBOARD SIDE 1
24 HEX. NUT 1/4" (5.000 per pack) 8
25 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 8
27 PLASTIC CAP WHITE 8
28 WRAP ARROUND CUSHION ASS Y PORT SIDE 1
29 Деталь 10
30 SLOTTED BOLT 1/4tahos_-20 X 1tahos_ (5.000 per pack) 40
31 WRAP ARROUND CUSHION ASS Y STARBOARD 1
32 REAR LATERAL BACKREST ASS Y PORT 1
33 REAR BACKREST ASS Y PORT 1
34 REAR BACKREST ASS Y STARBOARD 1
35 REAR LATERAL BACKREST ASS Y STARBOARD 1
36 FRONT CUSHION ASS Y BOW PORT SIDE 1
37 FRONT CENTER CUSHION ASS Y BOW 1
38 FRONT CUSHION ASS Y STARBOARD 1
39 BACKREST ACCESS DOOR PORT 1
40 HINGE 2
41 POP RIVET 3/16" (10.000 per pack) 28
42 BACKREST ACCESS DOOR STARBORD 1
43 HOLDER 2
45 HOLDER DOOR ASS Y 2
46 PAN HEAD SCREW 10-32 X 1/2" 2
47 HEX. NUT (5.000 per pack) 2
48 SCREW-HEX.HD.MACHINE tahos_10 X 1" 2
49 FLAT WASHER (5.000 per pack) 4
50 FRONT LATERAL CUSHION PORT SIDE 1
51 FRONT LATERAL BACKREST ASS Y STARBOARD 1
52 FRONT CENTER BACKREST 1
53 SUNDECK CUSHION PORT 1
56 SUNDECK CUSHION STARBORD 1
57 REAR FILLER BACKREST CENTER 1
