SEA-DOO 210 Wake 430 210 Wake 430 09- Body And Accessories 2

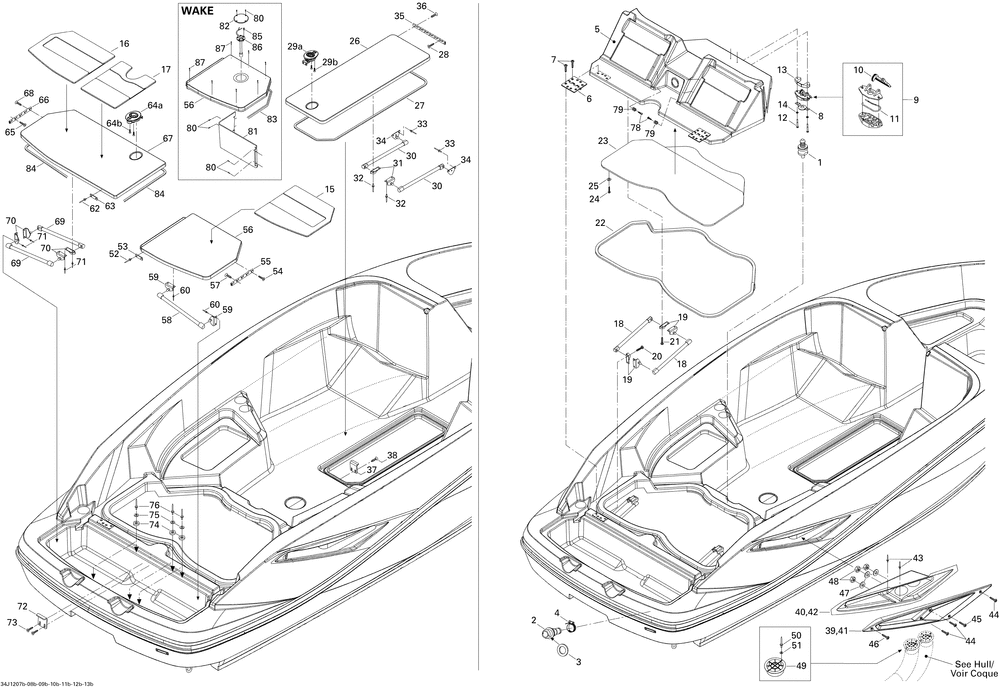

09- Body And Accessories 2
№ Наименование Примечание Кол-во
1 LATCH STUD 1
2 PERKO FITTING 3/4" 1
3 GASKET 1
4 TRIDON GEAR CLAMP (5.000 per pack) 1
5 ENGINE COVER 1
6 HINGE 2
7 PHILLIPS SCREW 1/4"-20 X 1-1/4" 16
8 LATCH PROTECTOR 1
9 LATCH ASS Y 1
10 LATCH ASS Y 1
11 LATCH SPRING (3.000 per pack) 1
12 HEX. SCREW M6 X 45 (5.000 per pack) 2
13 SHIM 1
14 Flat Washer M6, Stainless 2
15 SWIM PLATFORM CARPET STARBOARD 1
16 SWIM PLATFORM CARPET PORT SIDE 1
17 SWIM PLATFORM CARPET CENTRAL 1
18 GAS SHOCK 4
19 SUPP.AMORT.*BRACKET-SHOCK/REWORK 8
20 HEX. SCREW M5 X 25 (5.000 per pack) 8
22 D-SEAL RUBBER (5.000 per pack) 0
23 ENGINE HATCH SOUND WALL 1
24 SCREW-PAN HD.tahos_10 X 5/8" SS 12
25 WASHER-FENDER/S.S. 12
26 SKI LID 1
27 ANNEAU ETANCHE *SEAL-TRAY PAC=1.827M 0
28 SCREW 8 X 3/4tahos_ (10.000 per pack) 7
29a LATCH STAINLESS STEEL 1
29b PHILLIPS SCREW M5 X 25 (5.000 per pack) 2
30 GAS SHOCK 2
32 POP RIVET 3/16" 4
33 POP RIVET 3/16" (5.000 per pack) 4
34 SUPP.AMORT.*BRACKET-SHOCK/FLAT 2
35 HINGE 1
37 KEEPER 1
38 TAPPING PHILLIPS SCREW M4.2 X 13 (10.000 per pack) 2
39 VENT COVER STARBOARD 1
40 VENT BASE STARBOARD 1
41 VENT COVER PORT SIDE 1
42 VENT BASE PORT SIDE 1
43 RIVET *RIVET(TEC-PLUS) (10.000 per pack) 4
44 SOCKET SCREW M6 X 40 (5.000 per pack) 6
45 SOCKET SCREW M6 X 25 (10.000 per pack) 2
46 HEX. SOCKET SCREW M6 X 60 2
47 Flat Washer M6, Stainless 6
48 Hex. Elastic Stop Nut M6 6
49 VENT - 4" OPEN / BLK. 2
50 POP RIVET 1/8" (25.000 per pack) 4
51 FLAT WASHER 3 MM STAINLESS STEEL (10.000 per pack) 4
56 COVER-STBD WAKE 1
63 SWIM PLATFORM LID SHIM 2
64a LATCH STAINLESS STEEL 1
66 HINGE 1
67 COVER-PORT WAKE 1
69 GAS SHOCK 2
78 PHILLIPS TAPPING SCREW M4.2 X 32 (5.000 per pack) 2
79 ATTACHMENT KNOB 2
81 BALLAST BRACKET 1
82 BALLAST SENSOR CAP 1
83 SEAL-EPDM (1.50M) 1
84 EPDM-SEAL 0
86 WATER LEVEL SENSOR 1
87 PHILLIPS TAPPING SCREW M4.8 X 51 (5.000 per pack) 7
