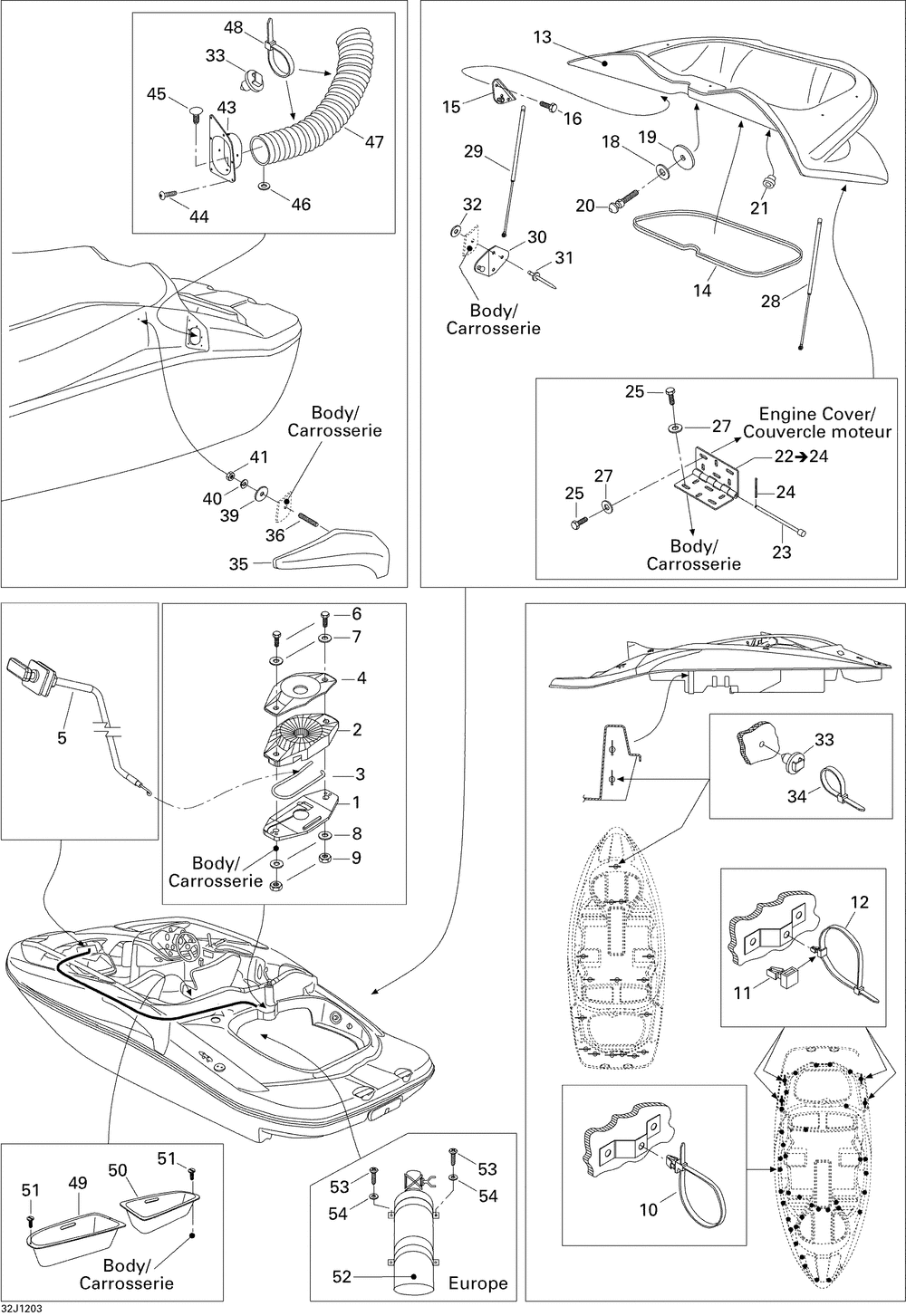

09- Engine Compartment And Accessories

№	Наименование	Кол-во
1	LATCH COVER	1
2	LATCH BASE	1
3	SPRING (5.000 per pack)	1
4	LATCH PROTECTOR	1
5	LATCH CABLE	1
6	HEX. SCREW M6 X 35 (10.000 per pack)	2
7	Flat Washer M6, Stainless	2
8	Flat Washer M6, Stainless	2
9	Hex. Elastic Stop Nut M6	2
10	TIE RAP WITH DART (40.000 per pack)	38
11	DART BLACK (4.000 per pack)	4
12	Tie-Rap 350 mm	4
13	ENGINE COVER	1
14	D-SEAL RUBBER (5.000 per pack)	0
15	SUPP.CYL.CARR. *SUPP-CYL.BODY	2
16	HEX. SCREW M4 X 16 (5.000 per pack)	6
18	FLAT WASHER 10 MM STAINLESS (5.000 per pack)	1
19	RUBBER WASHER (5.000 per pack)	1
20	LATCH STUD	1
21	GROMMET	1
22	CHARNIERE *HINGE Includes 28 to 30	2
23	HINGE ROD	2
24	COTTER PIN M2.5 X 12 (25.000 per pack)	2
25	HEX. SCREW M6 X 25 (5.000 per pack)	12
28	GAS SHOCK Port Side	1
29	GAS SHOCK	1
31	POP RIVET 3/16tahos_ (5.000 per pack)	6
32	FLAT WASHER M5 STAINLESS (10.000 per pack)	6
33	Mount Dart	18
34	Tie-Rap 180 mm	44
35	INLET VENT COVER PORT SIDE	1
35	INLET VENT COVER STARBOARD	1
36	SOCKET SET SCREW M6 X 35	8
39	WASHER-FENDER/S.S.	8
40	RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack)	8
41	Hex. Nut M6	8
43	INLET VENT STARBOARD	1
43	INLET VENT PORT SIDE	1
44	TAPPING SCREW M4.2 X 19 (5.000 per pack)	12
45	BLACK DART (5.000 per pack)	8
47	VENTILATION HOSE 4"	0
48	TIE RAP 533 MM (20.000 per pack)	4
49	REAR STORAGE TRAY PORT SIDE	1
50	REAR STORAGE TRAY STARBOARD	1
51	SLOTTED BOLT 1/4tahos_-20 X 1tahos_ (5.000 per pack)	4
52	FIRE EXTINGUISHER SYSTEM Europe	1
54	Flat Washer 4 mm Stainless	4
