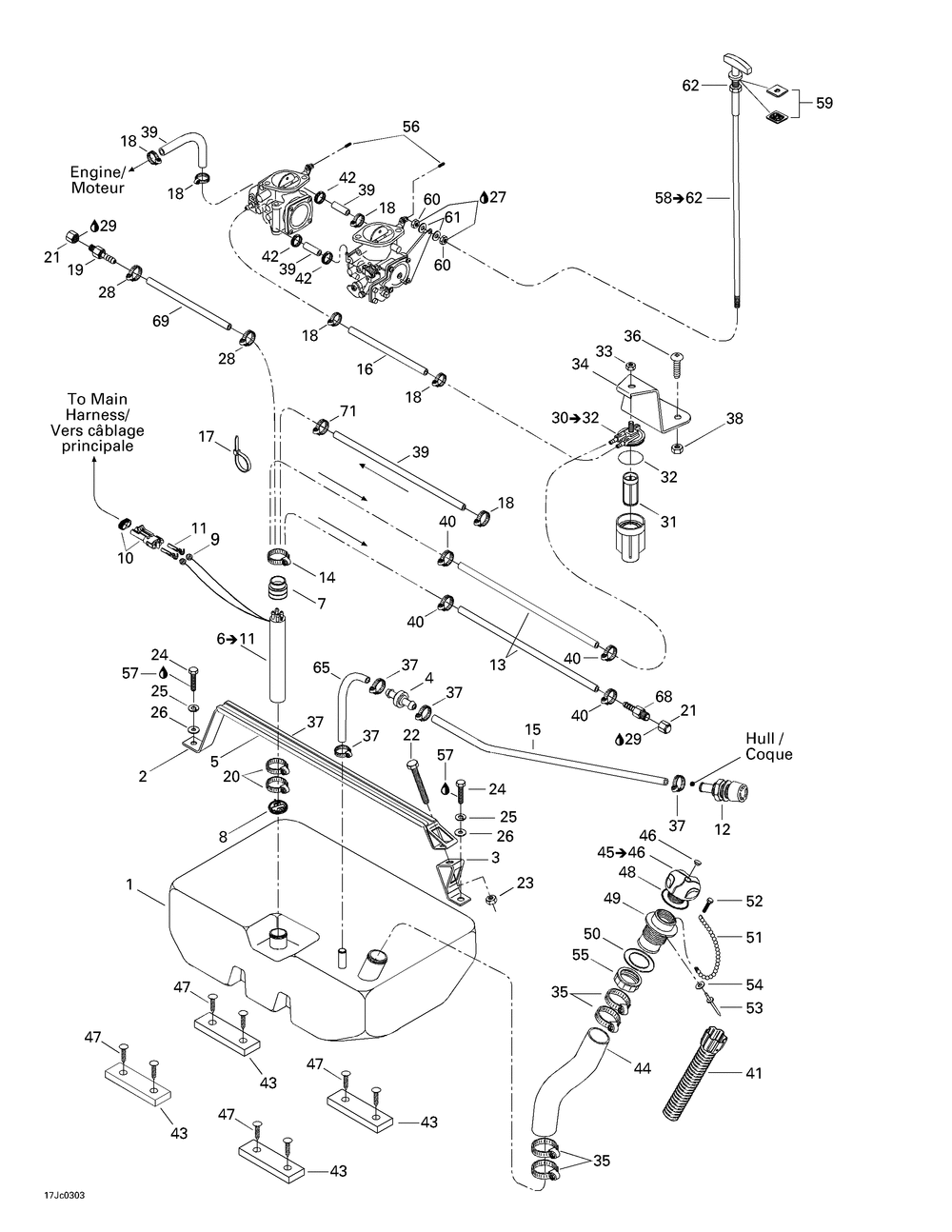

SEA-DOO Sportster LE, 5769 Sportster LE, 5769 02- Fuel System
02- Fuel System
№ Наименование Примечание Кол-во
1 RESERV.ESS.PLAS*TANK-FUEL/PLASTIC 1
2 SANGLE METAL. *STRAP-METAL 1
3 ATTACHE SANGLE *BRACKET-STRAP 1
4 VENT FUEL SURGE PROTECTOR 1
5 TAMPON PROTECT.*PAD-PROTECTOR 1
6 CHICANE TRIAGE *BAFFLE-PICK UP Includes 49 - 54. 1
7 TUBE ADAPTER 1
8 FUEL FILTER 1
9 Wire Seal 2
10 MALE CONNECTOR 2 CIRCUITS 1
11 FEMALE TERMINAL (5.000 per pack) 2
12 AERATEUR *VENT-BOAT 1
13 HOSE 5/16tahos_ METER (2.000 per pack) 0
14 NORMA CLAMP 1
15 BOYAU 16MM. *HOSE-16MM. (3.000 per pack) 0
17 Tie-Rap 180 mm 1
18 TRIDON GEAR CLAMP (10.000 per pack) 5
19 COUPLER 1
20 Norma Clamp 2
21 PIPE CAP 2
22 HEX. SCREW M8 X 55 (5.000 per pack) 1
23 Hex. Elastic Nut M8 1
24 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 2
25 Lock Washer 8 mm, Stainless 2
26 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
27 LOCTITE 243 10 ML 0
28 NORMA CLAMP 3
29 LOCTITE PIPE SEALANT 250 ML 0
30 FILTRE ESS.ASS.*FILTER-FUEL ASSY. Includes 38 - 40. 1
31 FUEL FILTER (5.000 per pack) 1
32 O-RING (5.000 per pack) 1
33 Hex. Elastic Stop Nut M6 1
34 FUEL TANK PLASTIC 1
36 PHILLIPS SCREW M6 X 20 (10.000 per pack) 2
37 NORMA CLAMP 4
39 BOYAU 6MM. *HOSE-6MM. PAC=5M (5.000 per pack) 0
40 NORMA CLAMP 4
41 FILLER NECK INTERIOR 1
42 Oetiker Clamp 3
43 TAMP.CAOUT.*PAD-RUBBER 4
44 NECK FILLER HOSE 1
45 FUEL TANK CAP BLACK Includes 37 - 38. 1
46 SNAP CAP BLACK (5.000 per pack) 1
47 BLACK DART (5.000 per pack) 8
48 JOINT ETANCHE *GASKET (5.000 per pack) 1
49 FILLER NECK 1
50 JOINT ETANCHE *GASKET 1
51 OIL CAP CHAIN (5.000 per pack) 1
52 SCREW K40 X 10 (5.000 per pack) 1
53 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 2
54 FLAT WASHER M3 STAINLESS (10.000 per pack) 2
55 FILLER NECK NUT FUEL 1
56 SCREW-SET SOCKET DIN.916A2 (10.000 per pack) 2
57 LOCTITE 271 10 ML 0
58 CABLE ETRANG. *CABLE-CHOKE Includes 58 - 62. 1
59 PLAQUE ETRANG. *PLATE-CHOKE (5.000 per pack) 2
60 HEX. NUT M6 (5.000 per pack) 2
61 Flat Washer M6, Stainless 2
62 NUT-HEXAGONAL HI-LEX (5.000 per pack) 1
68 HOSE FITTING 1
69 BOYAU *HOSE-1/4" (2.000 per pack) 0
