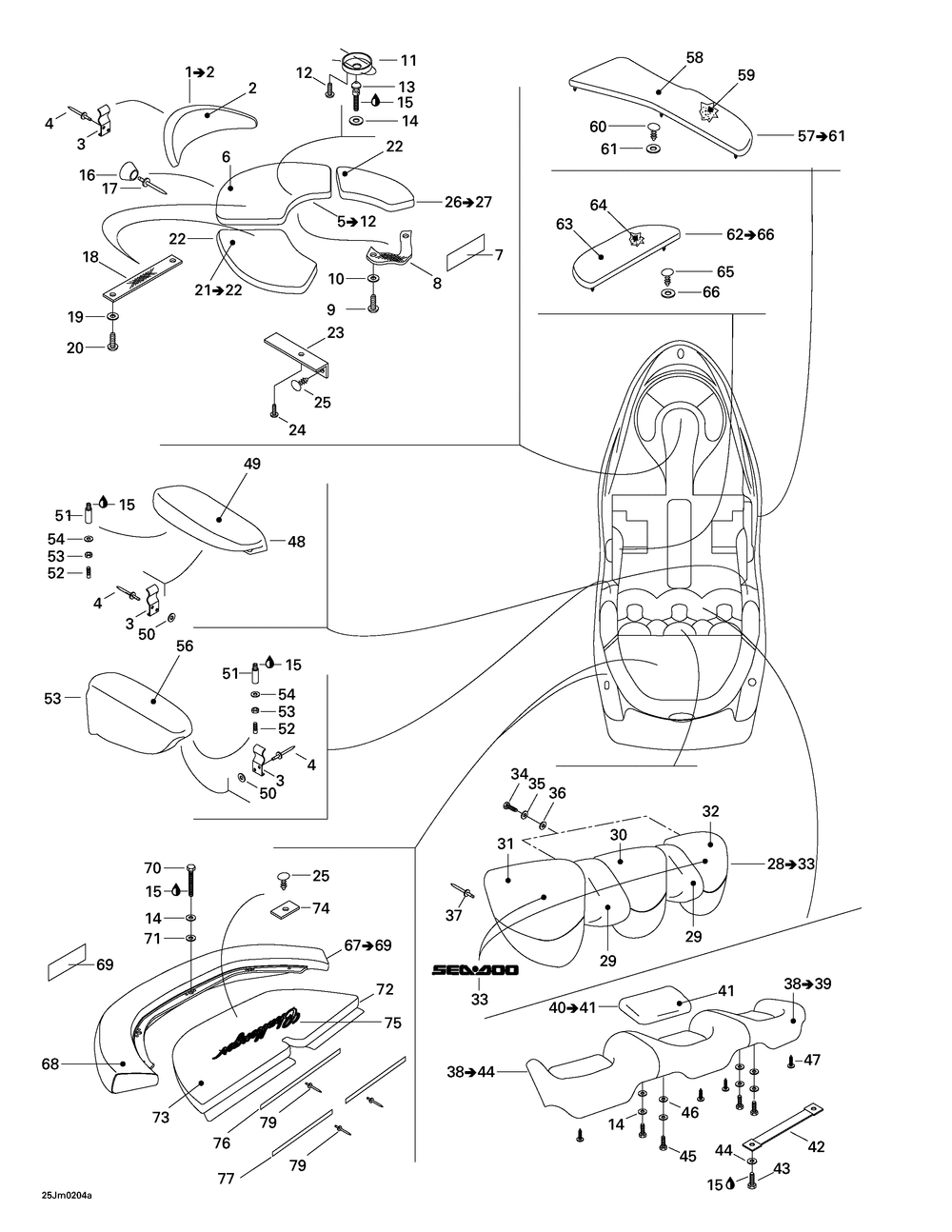

09- Seat (front And Rear)

Корзина пуста
SEA-DOO Challenger 1800, 5701 (210) Challenger 1800, 5701 (210) 09- Seat (front And Rear)
09- Seat (front And Rear)
№ Наименование Примечание Кол-во
1 DOSSIER AV.ASSY*BACKREST-FRONT Includes 1 - 2. 1
2 DOSSIER AV.ASSY*BACKREST-FRONT 1
3 SEAT SUPPORT 3
4 POP RIVET 3/16" (5.000 per pack) 6
5 SIEGE AVANT ASS*SEAT-FRONT ASSY. Includes 5 - 12. 1
7 STAPLE COVER METER 0
8 COURROIE PASSAG*STRAP-PASSENGER 1
9 SCREW K40 X 10 (5.000 per pack) 2
10 Flat Washer 4 mm Stainless 2
11 FRONT SEAT LATCH 1
12 SOCKET HEAD SCREW M4 X 16 (5.000 per pack) 3
13 SEAT STUD 1
14 Flat Washer M6, Stainless 14
15 LOCTITE 243 10 ML 0
16 RUBBER STOPPER 2
17 POP RIVET 3/16" (10.000 per pack) 2
21 SIEGE AVANT ASS*SEAT-FRONT ASSY/LH Includes 21 - 22. 1
23 SEAT BRACKET 6
25 BLACK DART (5.000 per pack) 6
26 SIEGE AVANT ASS*SEAT-FRONT ASSY/RH Includes 26 - 27. 1
28 DOSSIER ASS. *BACKREST ASSY. Includes 28 - 33. 1
29 HOUSSE BOSSE *COVER-BUMP 2
30 HOUS.DOSS.CENT.*COVER-BACKREST 1
31 HOUSSE DOSS.ARR*COVER-BACKREST 1
32 HOUSSE DOSS.ARR*COVER-BACKREST 1
36 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 8
37 RIVET *RIVET(TEC-PLUS) (10.000 per pack) 2
38 SIEGE ARR.ASS. *SEAT-REAR ASSY Includes 38 - 44. 1
39 HOUSSE SIEG.ARR*COVER-SEAT/REAR 1
40 COUSS.SIEGE ASS*CUSHION-SEAT ASSY. Includes 40 - 41. 3
41 HOUS.SIEGE ARR.*COVER-SEAT/REAR 3
42 COURROIE SIEGE *STRAP-REAR SEAT 2
43 HEX. SCREW M6 X 16 (5.000 per pack) 4
45 HEX. SCREW M6 X 45 SCOTCH GRIP (10.000 per pack) 4
46 WASHER-FENDER/S.S. 4
47 DART (10.000 per pack) 4
48 APPUI-BRAS ASS *ARMREST-BACK ASSY. Includes 48 - 49. 1
49 HOUS.APPUI-BRAS*COVER-ARMREST 1
50 Flat Washer M6, Stainless 8
51 THREADED ROD M5 SCOTCH GRIP 2
53 HEX. ELASTIC NUT M5 (5.000 per pack) 2
55 APPUI-BRAS ASS *ARMREST-BACK ASSY. Includes 55 - 56. CHALLENGER 1800 (5702). . 1
56 HOUS.APPUI-BRAS*COVER-ARMREST CHALLENGER 1800 (5702). . 1
57 ACCOUD.ASS.DR. *ELBOWREST ASSY/RH Includes 57 - 61. 1
58 HOUSSE ACCOUD. *COVER-ELBOWREST 1
59 NEOPRENE FOAM 1
62 ACCOUD.ASS.GA. *ELBOWREST ASSY.(LH) Includes 62 - 66. 1
63 HOUSSE ACCOUD. *COVER-ELBOWREST 1
64 NEOPRENE FOAM 1
67 AILERON ASS. *SPOILER-ASSY. Includes 67 - 69. 1
68 HOUSSE AILERON *COVER-SPOILER 1
70 HEX. SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 5
71 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 5
72 COUSSIN ASSY. *PLATFORM ASSY. Includes 72 - 75. CHALLENGER 1800 (5702). . 1
73 HOUSSE PLATFORM*COVER-PLATFORM 1
74 COURROIE *STRAP 4
75 LOGO CHALL. *LOGO-CHALLENGER 4
76 VELCRO 25 MM X 940 MM 1
77 VELCRO 25 MM X 635 MM 2
78 POP RIVET 3/16" 10
79 POP RIVET 3/16" (10.000 per pack) 7
