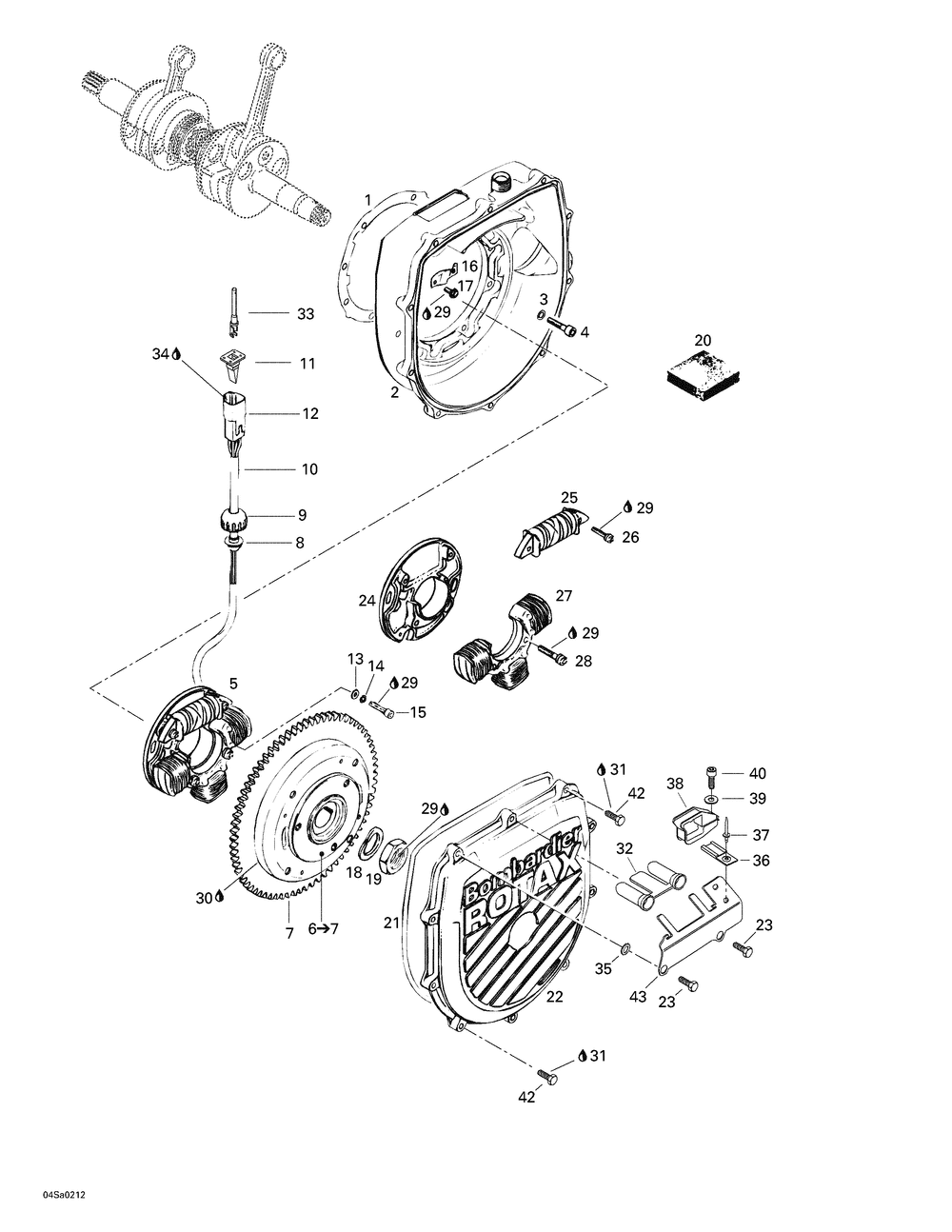

03- Magneto

№	Наименование	Кол-во
1	JOINT ETANCHE *GASKET	1
2	BOITIER IGNIT. *HOUSING-IGNIT.	1
3	WASHER-LOCK DIN.128 (10.000 per pack)	8
4	Socket Head Screw M6 X 25	8
5	ARMATURE PLATE ASS Y	1
6	MAGNETO FLYWHEEL ASS Y Includes 6 - 7.	1
6	FLYWHEEL	1
7	STARTER GEAR 77 TEETH	1
8	PASSE-FILS 4 T *GROMMET-4 WAYS (5.000 per pack)	1
9	ELECTRIC WIRE CAP (5.000 per pack)	1
10	TUBING ISOLATION 75 MM	1
11	FEMALE WEDGE 4 CIRCUITS (10.000 per pack)	1
12	FEMALE HOUSING 4 CIRCUITS	1
13	RONDELLE *WASHER (5.000 per pack)	3
14	RONDELLE-FREIN *WASHER-LOCKtahos_5 (10.000 per pack)	3
15	SOCKET HEAD SCREW M5 X 18 (10.000 per pack)	3
16	RETAINER PLATE	1
17	HEX. SCREW M5 X 8 (5.000 per pack)	2
18	RONDELLE-FREIN *WASHER-LOCK 22 (10.000 per pack)	1
19	HEX. NUT M22 X 1.5	1
20	PROTECTION MAT	1
21	O-RING	1
22	IGNITION COVER BLACK	1
23	FLANGED HEX. SCREW M6 X 25 SCOTCH GRIP (50.000 per pack)	2
25	GENERATING COIL Tundra.	1
26	SCREW M5 X 22 WITH WASHER Tundra. (10.000 per pack)	2
27	LIGHTING COIL Tundra.	1
28	SCREW M6 X 25 WITH WASHER Tundra. (5.000 per pack)	2
29	LOCTITE 243 10 ML	0
30	LOCTITE 648 10 ML	0
31	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
32	INSULATOR	2
33	MALE TERMINAL (10.000 per pack)	3
34	DIELECTRIC GREASE 150 G	0
35	EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack)	2
36	Clip	1
37	POP RIVET 3/16" (10.000 per pack)	1
38	ADAPTOR	1
39	Flat Washer M6, Stainless	1
40	SOCKET SCREW M6 X 16 (10.000 per pack)	1
41	SET-GASKET	0
42	TAPTITE SCREW M6 X 25 (10.000 per pack)	8
43	PLAQUE MASSE *PLATE-GROUND	1
