SEA-DOO Explorer, 5455 Explorer, 5455 07- Steering System

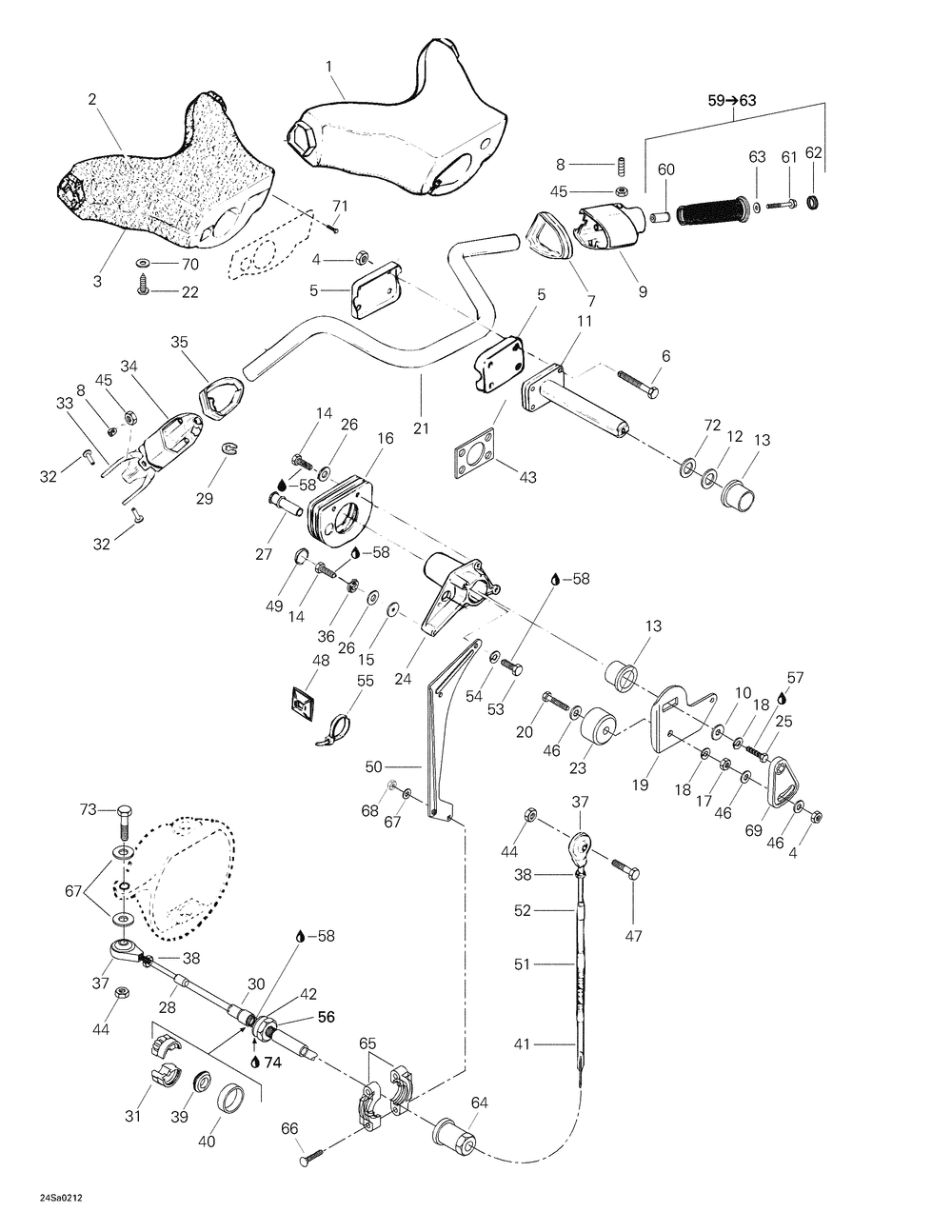

07- Steering System
№ Наименование Примечание Кол-во
PHILLIPS SCREW 10-14 X 7/8tahos_ (5.000 per pack) 2
1 COUVRE GUIDON *COVER-STEERING 1
2 MOUSSE SUP. *FOAM-TOP 1
3 MOUSSE INF. *FOAM-BOTTOM 1
4 Hex. Elastic Nut M8 5
5 STEERING CLAMP 2
6 HEX. SCREW M8 X 55 (5.000 per pack) 4
7 ADAP.MANET.GA. *ADAP-HANDLE LH 1
8 SCREW-SET SOCKET DIN.916A2 (5.000 per pack) 2
9 LOGEMENT GAUCHE*HOUSING-LH. Includes 9 - 11. 1
10 RONDELLE *WASHER 1
11 TIGE DIRECT.SOU*STEM-STEER.WEL 1
12 SHIM 1
13 BUSHING 2
14 HEX. SCREW M8 X 25 (5.000 per pack) 4
15 RONDELLE PLAST.*WASHER-PLASTIC (5.000 per pack) 2
16 COLLIER NOIR *COLLAR-BLACK 1
17 HEX. NUT M8 (5.000 per pack) 1
18 Lock Washer 8 mm, Stainless 2
19 BRAS TIGE DIR. *ARM-STEM STEE. 1
20 HEX. SCREW M8 X 45 (5.000 per pack) 1
21 GUIDON *BAR-HANDLE 1
22 PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack) 2
23 BUTEE D ARRET *STOP-BUSHING 1
24 SUPPORT DIRECT.*SUPPORT-STEER. 1
26 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
27 PASSE-FILS *GROMMET 1
28 EMBOUT PETIT *BOOT-SMALL (5.000 per pack) 1
29 CIRCLIP 5 MM (10.000 per pack) 1
30 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 1
31 DEMI BAGUE *HALF-RING (2.000 per pack) 2
32 GOUPILLE *PIN (5.000 per pack) 2
33 MANETTE ACC. *HANDLE-THROTTL 1
34 LOG.MAN.ACC. *HOUSING-THROTT 1
35 ADAP.MANET.ACC.*ADAP-THROTTLE 1
36 RONDELLE RETENU*WASHER-RETAINE 2
37 BALL JOINT 2
38 HEX. NUT (5.000 per pack) 2
39 RUBBER WASHER (5.000 per pack) 1
40 RETAINER RING (5.000 per pack) 1
41 CABLE DIRECTION*CABLE-STEERING 1
42 FLAT WASHER STAINLESS (5.000 per pack) 1
43 ENTRETOISE *SPACER 1
44 Hex. Elastic Stop Nut M6 2
45 HEX. NUT M6 (5.000 per pack) 2
46 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 3
47 HEX. SCREW M6 X 30 (5.000 per pack) 1
49 SNAP CAP BLACK (5.000 per pack) 2
50 SUPPORT CABLE *SUPPORT-CABLE 1
51 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 1
52 EMBOUT PETIT *BOOT-SMALL 1
55 Tie-Rap 142 mm 0
56 NUT-JAM HEXAGONAL (5.000 per pack) 1
57 LOCTITE 271 10 ML 0
58 LOCTITE 243 10 ML 0
59 HANDLE GRIP KIT BLACK Includes 17 - 21. 1
61 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
62 CAP BLACK (2.000 per pack) 2
63 Flat Washer M6, Stainless 2
64 BOUTON AJUST. *KNOB-AJUST. 1
65 SUPPORT THRUST 2
67 Flat Washer M6, Stainless 4
69 BARRURE BRAS *LOCK-PLATE 1
70 FLAT WASHER M5 STAINLESS (10.000 per pack) 4
71 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 2
72 SPRING WASHER 1
73 HEX. SCREW M6 X 40 (10.000 per pack) 1
74 SILICONE SEALANT 51388 300 ML 0
