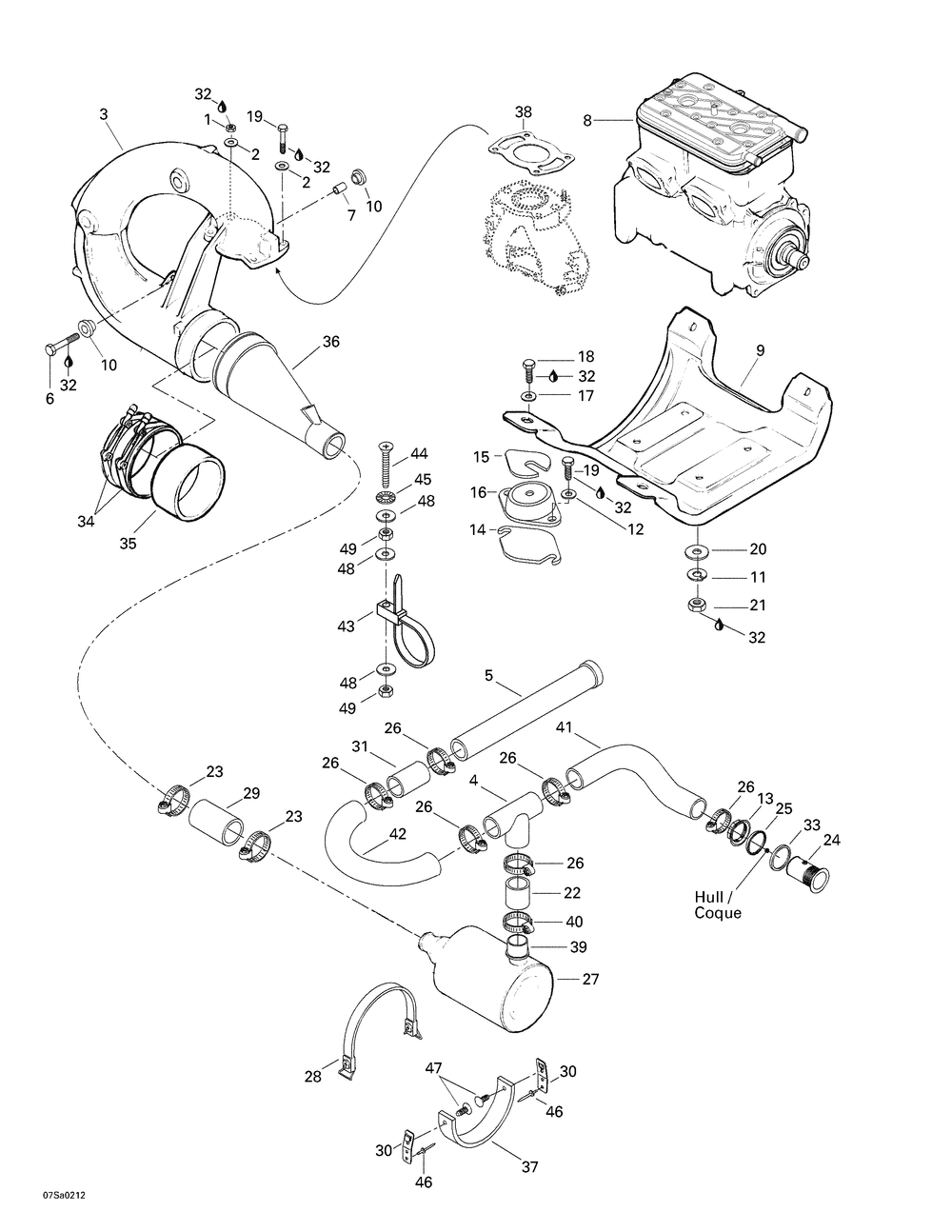

SEA-DOO Explorer, 5455 Explorer, 5455 01- Engine Support And Muffler
01- Engine Support And Muffler
№ Наименование Примечание Кол-во
SHIM 1.3 MM (5.000 per pack) 0
SHIM 1.3 MM (5.000 per pack) 0
CALE EPAISSEUR *SHIM-3.3MM. (5.000 per pack) 0
1 HEX. NUT M8 (5.000 per pack) 1
2 FLAT WASHER (5.000 per pack) 4
3 TUNED PIPE Includes 1 - 4. 1
4 RACCORD EN T *FITTING-T 1
5 RESONATEUR ASS.*RESONATOR 1
6 HEX. SCREW M8 X 40 (5.000 per pack) 1
7 BUSHING 1
9 SUPPORT MOTEUR *SUPPORT-ENG.(PAINTED) 1
10 RUBBER BUSHING (5.000 per pack) 2
11 Helicoidal Lock Washer M10 4
12 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 8
13 NUT 72 MM 1
14 SHIM 0.4 MM (5.000 per pack) 0
15 SHIM 0.4 MM (10.000 per pack) 0
16 RUBBER MOUNT 4
17 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
18 HEX. SCREW M8 X 25 (5.000 per pack) 4
19 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 11
20 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 4
21 HEX. NUT M10 (5.000 per pack) 4
22 BOYAU ECHAPP. *HOSE-EXHAUST 1
23 NORMA CLAMP Legend SE 800 SDI. 2
24 EXHAUST OUTLET 1
25 STABILIZING WASHER 1
26 TRIDON GEAR CLAMP 6
27 SILENC.ECHAPP. *MUFFLER-BLACK 1
28 RETAINER STRAP 1
29 BOYAU ECHAPP. *HOSE-EXHAUST 1
30 STRAP CLIP (10.000 per pack) 1
32 LOCTITE 243 10 ML 0
33 JOINT ETANCHE *GASKET (5.000 per pack) 1
34 NORMA CLAMP 2
35 SEALING RING 1
36 EXHAUST CONE Includes 6 - 7. 1
37 TAMPON CAOUT. *PAD-RUBBER 1
38 EXHAUST GASKET 2
39 ADAP.BOYAU *ADAP-HOSE 2
40 NORMA CLAMP (2.000 per pack) 2
42 COUDE BOYAU *ELBOW-EXH.HOSE 1
43 TIE RAP *TIE-RAP 1
44 OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 (5.000 per pack) 1
45 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
46 AVDEL RIVET 3/16" (10.000 per pack) 2
47 BLACK DART (5.000 per pack) 2
48 Flat Washer M6, Stainless 3
49 Hex. Elastic Stop Nut M6 2
