SEA-DOO Challenger 2000, 5447 (240 EFI) Challenger 2000, 5447 (240 EFI) 07- Steering System

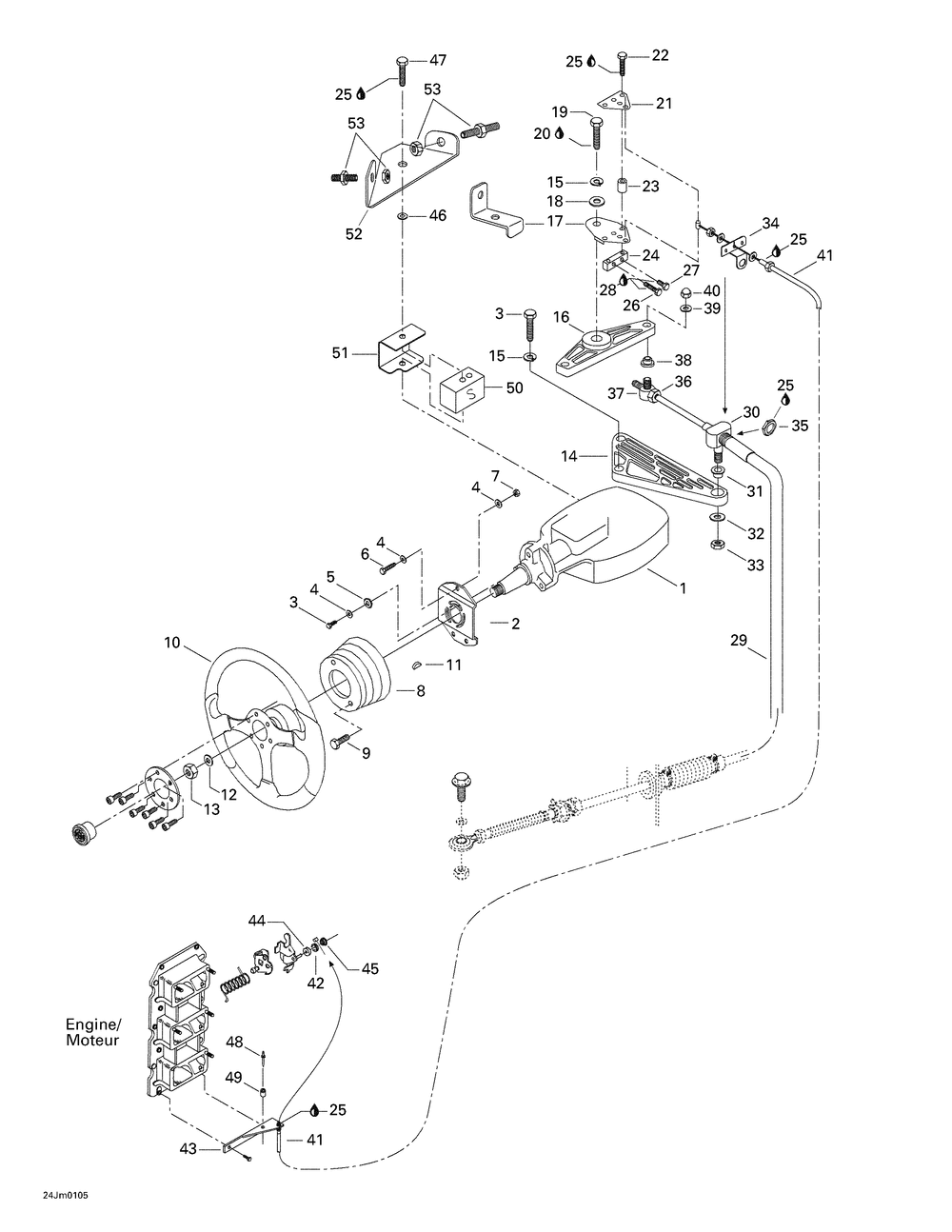

07- Steering System
№ Наименование Примечание Кол-во
SUPPORT-INTER. *MOUNT-SWITCH CHALLENGER 1800 (5775). 1
1 HELM ASS Y 1
2 SUPPORT 1
3 HEX. SCREW 1/4"-20 X 3/4tahos_ SCOTCH GRIP (5.000 per pack) 5
4 Flat Washer M6, Stainless 9
5 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 3
6 HEX. SCREW M6 X 30 (10.000 per pack) 3
7 Hex. Elastic Stop Nut M6 3
8 COLLAR BLACK 1
9 SCREW 8-32 X 1-1/4" (5.000 per pack) 2
10 VOLANT DIRECT.*WHEEL-STEER.ASSY. Includes 11 - 15. 1
11 WOODRUFF KEY 1
12 FLAT WASHER STAINLESS (5.000 per pack) 1
13 LOCK NUT 1/2"-20 (5.000 per pack) 1
14 CABLE SUPPORT 1
15 RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack) 3
16 ARM 1
17 ATT.INF.CABLE *CLIP-LOWER 1
18 SPACER CHALLENGER 1800 (5774). (2.000 per pack) 1
19 HEX. SCREW 1/4"-20 X 1tahos_ SCOTCH GRIP 1
20 LOCTITE 271 10 ML 0
21 UPPER CLIP 1
22 HEX. SCREW M6 X 25 (5.000 per pack) 2
23 SPACER 6.7 MM CHALLENGER 1800 (5774). (5.000 per pack) 2
24 ADJUSTMENT BLOCK CHALLENGER 1800 (5774). 1
25 LOCTITE 243 10 ML 0
27 HEX. SCREW M5 X 25 (5.000 per pack) 1
29 STEERING CABLE ASS Y 1
30 PIVOT 3/8tahos_ 1
31 FLANGED BUSHING 1
32 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
33 LOCK NUT (5.000 per pack) 1
34 CABLE SUPPORT CHALLENGER 1800 (5774). 1
35 HEX. JAM NUT 5/8"-18 1
36 HEX. NUT 5/16"-24 (5.000 per pack) 1
37 PIVOT 1
38 BUSHING (5.000 per pack) 1
39 FLAT WASHER (5.000 per pack) 1
40 NUT-STOP ELASTIC MS-17830 (5.000 per pack) 1
41 CABLE CONTROLE *CABLE-L.S.C. 1
42 ANNEAU RETENUE *RING-RETAINING 1
43 SUPPORT CABLE *SUPPORT-CABLE/LSC 1
44 ATTACHE CABLE *ATTACH-CABLE/LSC 1
45 COUVRE CABLE *COVER-CABLE/LSC 1
46 Flat Washer M6, Stainless 1
47 HEX. SCREW 1/4"-20 X 2-1/2" (5.000 per pack) 1
48 POP RIVET 1/8" (10.000 per pack) 1
49 BUTEE CAOUT. *STOPPER-RUBBER 1
50 BUTEE GOUVERN. *BUMPER-HELM 1
51 BUMPER SUPPORT 1
52 CAME D INTERR. *CAM-SWITCH/LSC CHALLENGER 1800 (5701). 1
53 LOW SPEED CONTROL ACTUATOR 2
