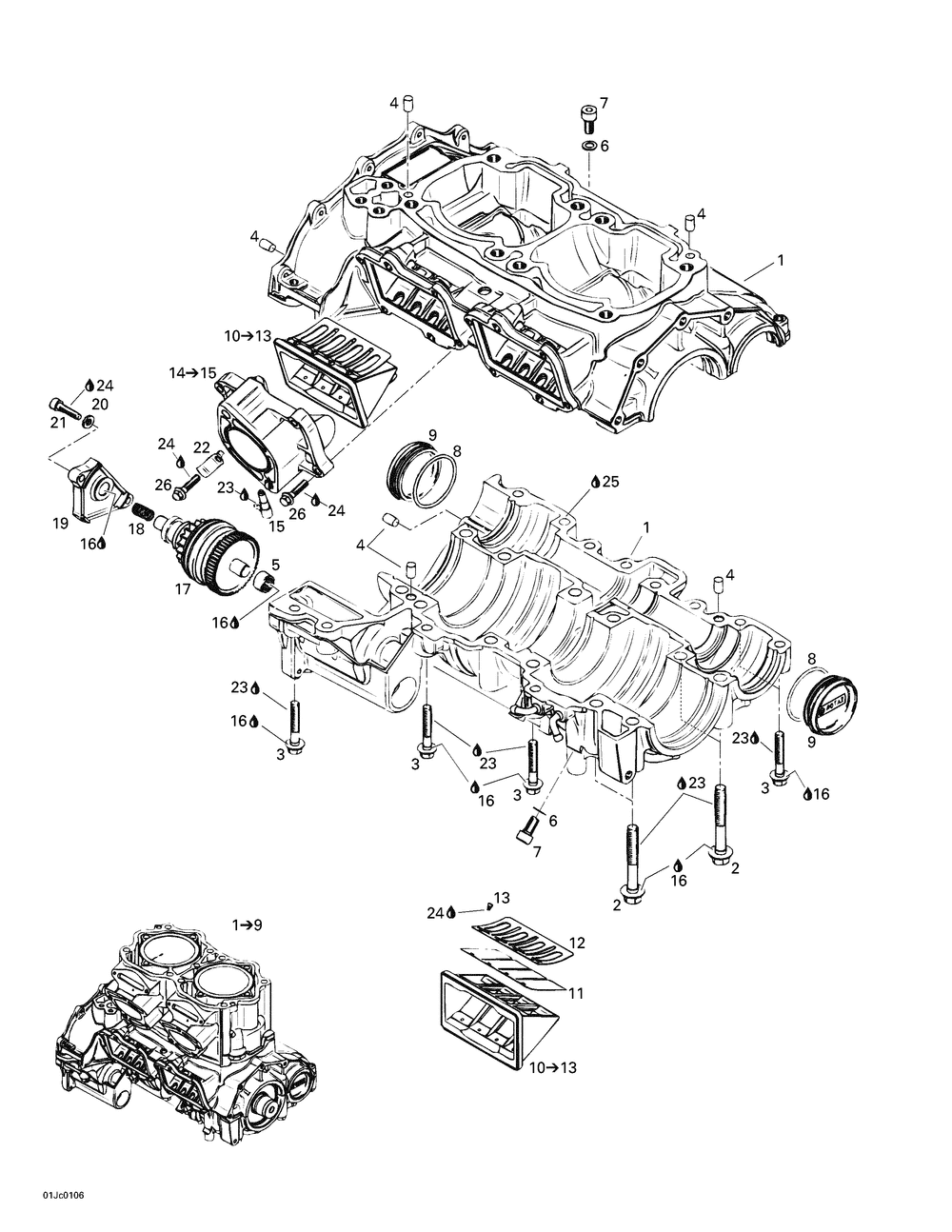

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REBUILD-CRANKCASE-CYLINDER PACKAGE 947 Includes 1 - 9. | 0 | |
| 1 | CARTER MOTEUR *CRANKCASE-ASSY Includes 1 - 7. | 1 | |
| 2 | HEX. FLANGED SCREW M10 X 73.5 | 12 | |
| 3 | HEX. FLANGED SCREW M8 X 45 | 12 | |
| 4 | CENTER PIN 8 X 12 MX Z 600. MX Z 700. MX Z 800. | 6 | |
| 5 | ROULEMENT AIGUI*BUSHING-NEEDLE | 1 | |
| 6 | Sealing Ring | 2 | |
| 7 | SOCKET HEAD SCREW M8 X 16 (5.000 per pack) | 2 | |
| 8 | O-RING | 2 | |
| 9 | BEARING COVER | 2 | |
| 10 | REED VALVE ASS Y Includes 13 - 16. | 2 | |
| 11 | REED PEDAL | 4 | |
| 12 | REED PEDAL STOP | 4 | |
| 13 | PHILLIPS SCREW M3 X 5 (10.000 per pack) | 16 | |
| 14 | ADAP.CARB *ADAP-CARB. Includes 15 - 16. | 2 | |
| 15 | CHECK VALVE | 2 | |
| 16 | DOW CORNING 111*DOW CORNING 111 | 0 | |
| 17 | STARTER DRIVE ASS Y | 1 | |
| 18 | SPRING | 1 | |
| 19 | COUVERCLE LANC.*COVER-DRIVE ST | 1 | |
| 20 | Spring Washer | 2 | |
| 21 | SOCKET HEAD SCREW M6 X 22 (10.000 per pack) | 2 | |
| 22 | ATTACHE FILS *SUPPORT-WIRE (2.000 per pack) | 1 | |
| 23 | LOCTITE 648 10 ML | 0 | |
| 24 | LOCTITE 243 10 ML | 0 | |
| 25 | LOCTITE 5910 300 ML | 0 | |
| 26 | HEX. FLANGED SCREW M6 X 25 | 8 | |
| 27 | SET-GASKET | 0 | |
| 28 | SET-GASKET CYL | 0 |
