SEA-DOO Utopia, 200 Optimax Utopia, 200 Optimax 07- Steering System

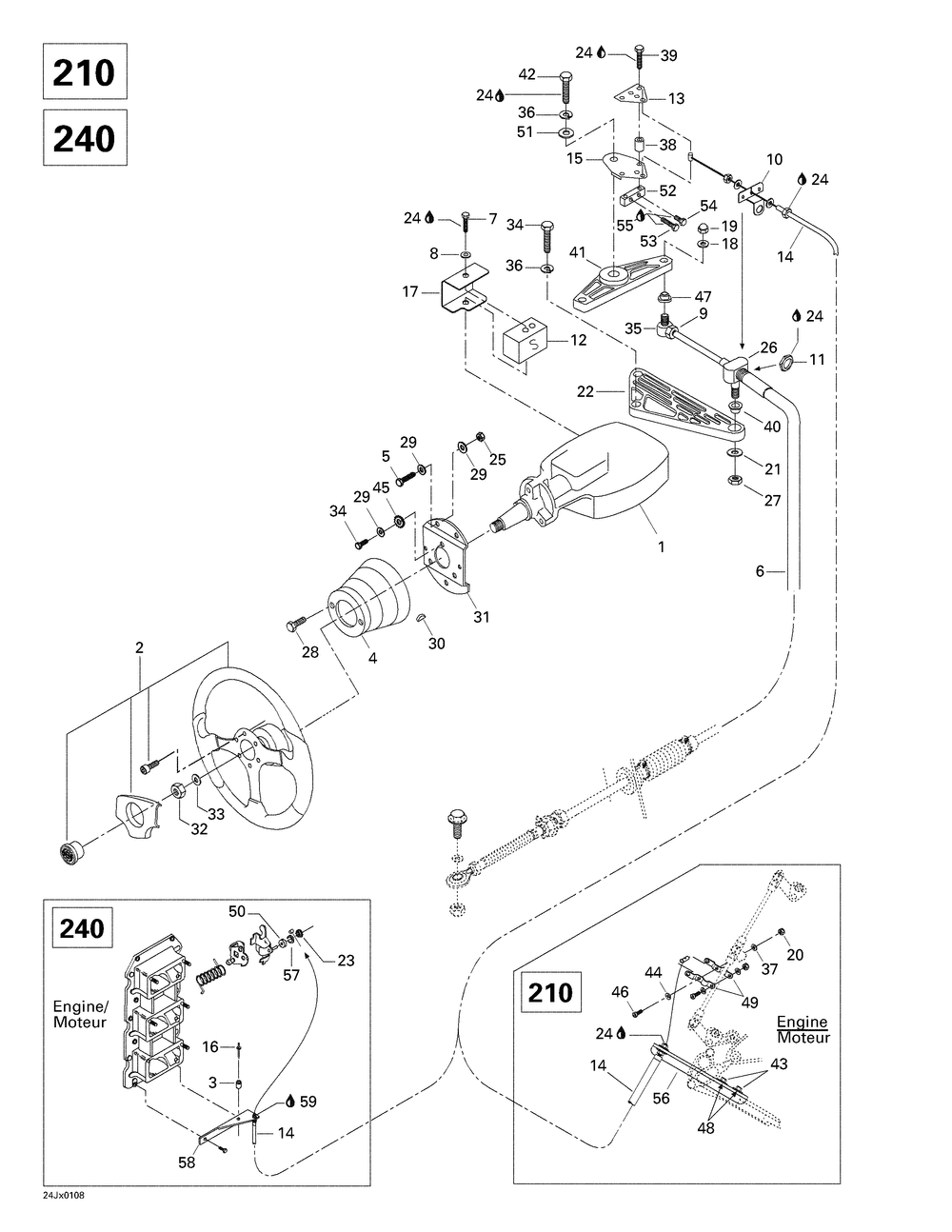

07- Steering System
№ Наименование Примечание Кол-во
1 HELM ASS Y 1
2 VOLANT DIRECT.*WHEEL-STEER.ASSY. Includes 2 - 6. UTOPIA 240 EFI. 1
3 BUTEE CAOUT. *STOPPER-RUBBER 1
4 COLLAR BLACK 1
5 HEX. SCREW M6 X 30 (10.000 per pack) 3
6 STEERING CABLE 1
7 HEX. SCREW 1/4"-20 X 2-1/2" (5.000 per pack) 1
8 Flat Washer M6, Stainless 1
9 HEX. NUT 5/16"-24 (5.000 per pack) 1
10 CABLE SUPPORT CHALLENGER 1800 (5774). 1
11 HEX. JAM NUT 5/8"-18 1
12 BUTEE GOUVERN. *BUMPER-HELM 1
13 UPPER CLIP CHALLENGER 1800 (5774). 1
14 CABLE CONTROLE *CABLE-L.S.C. 1
15 ATT.INF.CABLE *CLIP-LOWER CHALLENGER 1800 (5774). 1
16 POP RIVET 1/8" (10.000 per pack) 1
17 BUMPER SUPPORT 1
18 FLAT WASHER (5.000 per pack) 1
19 NUT-STOP ELASTIC MS-17830 (5.000 per pack) 1
20 HEX. ELASTIC NUT M5 (5.000 per pack) 2
21 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
22 CABLE SUPPORT 1
23 COUVRE CABLE *COVER-CABLE/LSC 1
24 LOCTITE 243 10 ML 0
25 Hex. Elastic Stop Nut M6 3
26 PIVOT 3/8tahos_ 1
27 LOCK NUT (5.000 per pack) 1
28 SCREW 8-32 X 1-1/4" (5.000 per pack) 2
29 Flat Washer M6, Stainless 9
30 WOODRUFF KEY 1
31 SUPPORT 1
32 LOCK NUT 1/2"-20 (5.000 per pack) 1
33 FLAT WASHER STAINLESS (5.000 per pack) 1
34 HEX. SCREW 1/4"-20 X 3/4tahos_ SCOTCH GRIP (5.000 per pack) 5
35 PIVOT 1
36 RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack) 3
37 FLAT WASHER M5 STAINLESS (10.000 per pack) 2
38 SPACER 6.7 MM CHALLENGER 1800 (5774). (5.000 per pack) 2
39 HEX. SCREW M6 X 25 (5.000 per pack) 2
40 FLANGED BUSHING 1
41 HELM ARM 1
42 HEX. SCREW 1/4"-20 X 1tahos_ SCOTCH GRIP 1
43 HEX. SCREW M6 X 12 (25.000 per pack) 2
44 HELICAL LOCK WASHER M5 (5.000 per pack) 2
45 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 3
46 SOCKET HEAD SCREW M5 X 16 (5.000 per pack) 2
47 BUSHING (5.000 per pack) 1
49 CABLE ATTACHMENT CHALLENGER 1800 (5774). 2
50 ATTACHE CABLE *ATTACH-CABLE/LSC 1
51 SPACER CHALLENGER 1800 (5774). (2.000 per pack) 1
52 ADJUSTMENT BLOCK CHALLENGER 1800 (5774). 1
54 HEX. SCREW M5 X 25 (5.000 per pack) 1
56 CABLE SUPPORT CHALLENGER 1800 (5774). 1
57 ANNEAU RETENUE *RING-RETAINING 1
58 SUPPORT CABLE *SUPPORT-CABLE/LSC 1
