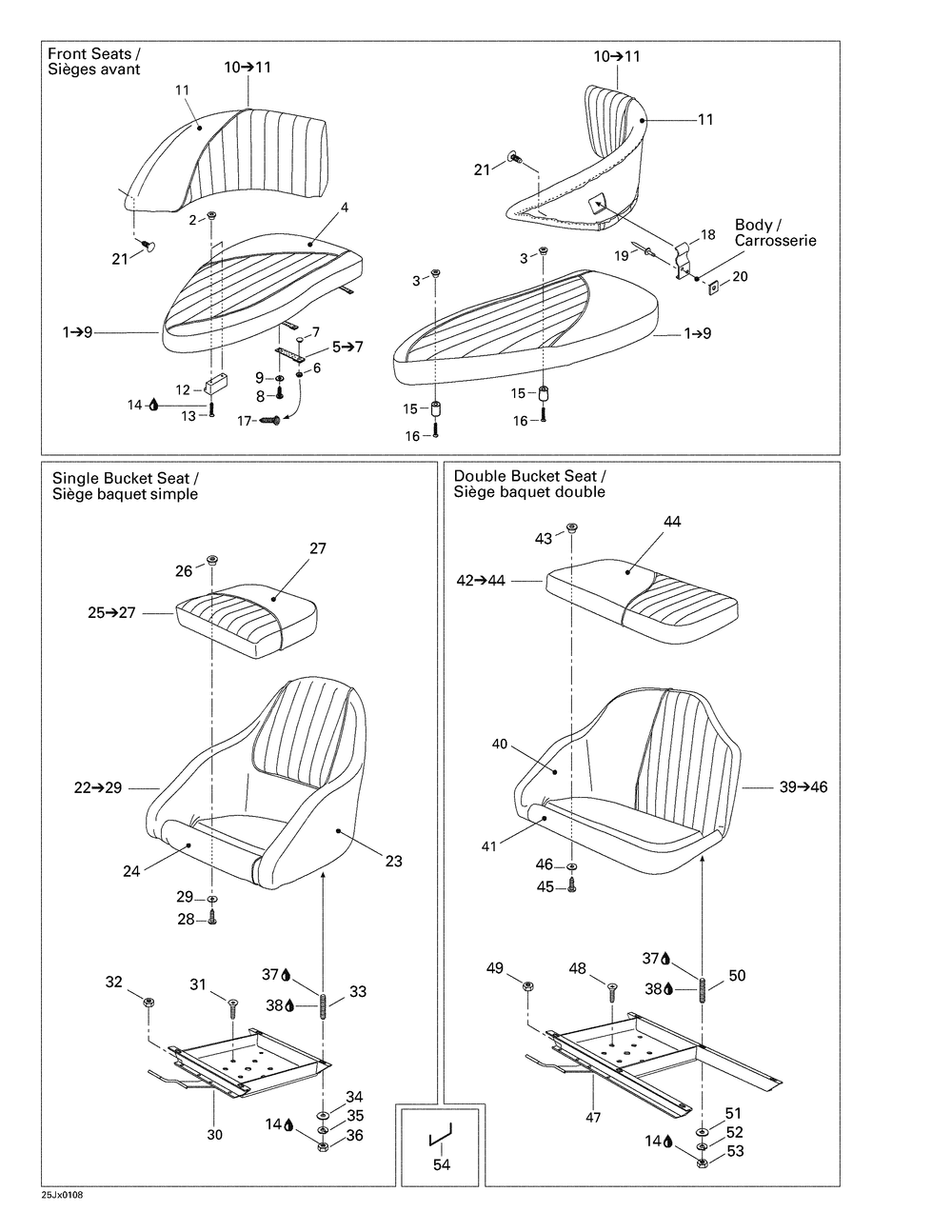

SEA-DOO Utopia, 200 Optimax Utopia, 200 Optimax 09- Front
09- Front
№ Наименование Примечание Кол-во
COUSS.SIEGE ASS*CUSHION ASSY. 1
HOUSSE-COUSSIN *COVER-CUSHION 1
SIEGE BAQUET*SEAT-BUCKET ASSY. 1
BASE PIVOTANT *BASE-SWIVEL/SEAT 1
HOUS.COQ.SIEGE *COVER-SEAT SHELL 1
HOUSSE-COUSSIN *COVER-CUSHION 1
DOSSIER ASS. *BACKREST ASSY. 1
COUSSIN-BAQUET *CUSHION-BUCKET 1
1 COUSS.SIEGE ASS*CUSHION ASSY. Includes 1 - 9. 1
2 TEE-NUT 1/4tahos_- 20 4
3 TEE-NUT tahos_10-32 (5.000 per pack) 4
4 HOUSSE-COUSSIN *COVER-CUSHION 1
5 COURROIE RET. *STRAP-RETAINING Includes 5 - 7. 4
6 SNAP BASE WAKE (4.000 per pack) 4
7 SNAP COVER SE (10.000 per pack) 4
8 SCREW 8 X 3/4tahos_ (10.000 per pack) 4
9 FLAT WASHER (5.000 per pack) 4
10 DOSSIER ASS. *BACKREST ASSY. Includes 10 - 11. 1
11 HOUSSE DOSSIER *COVER-BACKREST 1
12 LOQ.BASE SIEGE *CATCH-SEAT BASE 2
13 SCREW 1/4tahos_-20 X 2tahos_ (10.000 per pack) 4
14 LOCTITE 243 10 ML 0
15 RUBBER BUMPER 4
16 SCREW 10-32 X 1-1/4tahos_ (5.000 per pack) 4
17 THREADED STUD 5/8tahos_ (10.000 per pack) 4
18 SEAT SUPPORT 6
19 POP RIVET 3/16" (5.000 per pack) 12
21 BLACK DART (10.000 per pack) 2
22 SIEGE BAQUET *SEAT-BUCKET ASSY. Includes 20 - 29. 2
25 COUSSIN BAQUET *CUSHION-BUCKET Includes 25 - 27. 2
28 HEX. SCREW 1/4"-20 X 2-1/2" (5.000 per pack) 4
29 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
31 PHILLIPS SCREW M6 X 35 (5.000 per pack) 12
32 NUT-STOP ELASTIC MS-17830 (5.000 per pack) 8
33 THREADED STUD 1/4"-20 X 1-1/4" 8
34 Flat Washer M6, Stainless 8
35 Lock Washer Helical M6 8
36 HEX. NUT 1/4" (5.000 per pack) 8
37 (ORM-D) LOCTITE PRIMER N 128 G 0
38 LOCTITE 271 10 ML 0
39 SIEGE BAQUET*SEAT-BUCKET ASSY. Includes 39 - 46. 1
40 HOUS.COQ.SIEGE *COVER-SEAT SHELL 1
41 HOUS.INTER.AV. *COVER-FRONT 2
42 COUSSIN BAQUET *CUSHION-BUCKET Includes 42 - 44. 1
44 HOUSSE-COUSSIN *COVER-CUSHION 1
47 BUCKET SEAT SWIVEL BASE PORT SIDE 1
