SEA-DOO Challenger 1800, 5691 Challenger 1800, 5691 02- Fuel System

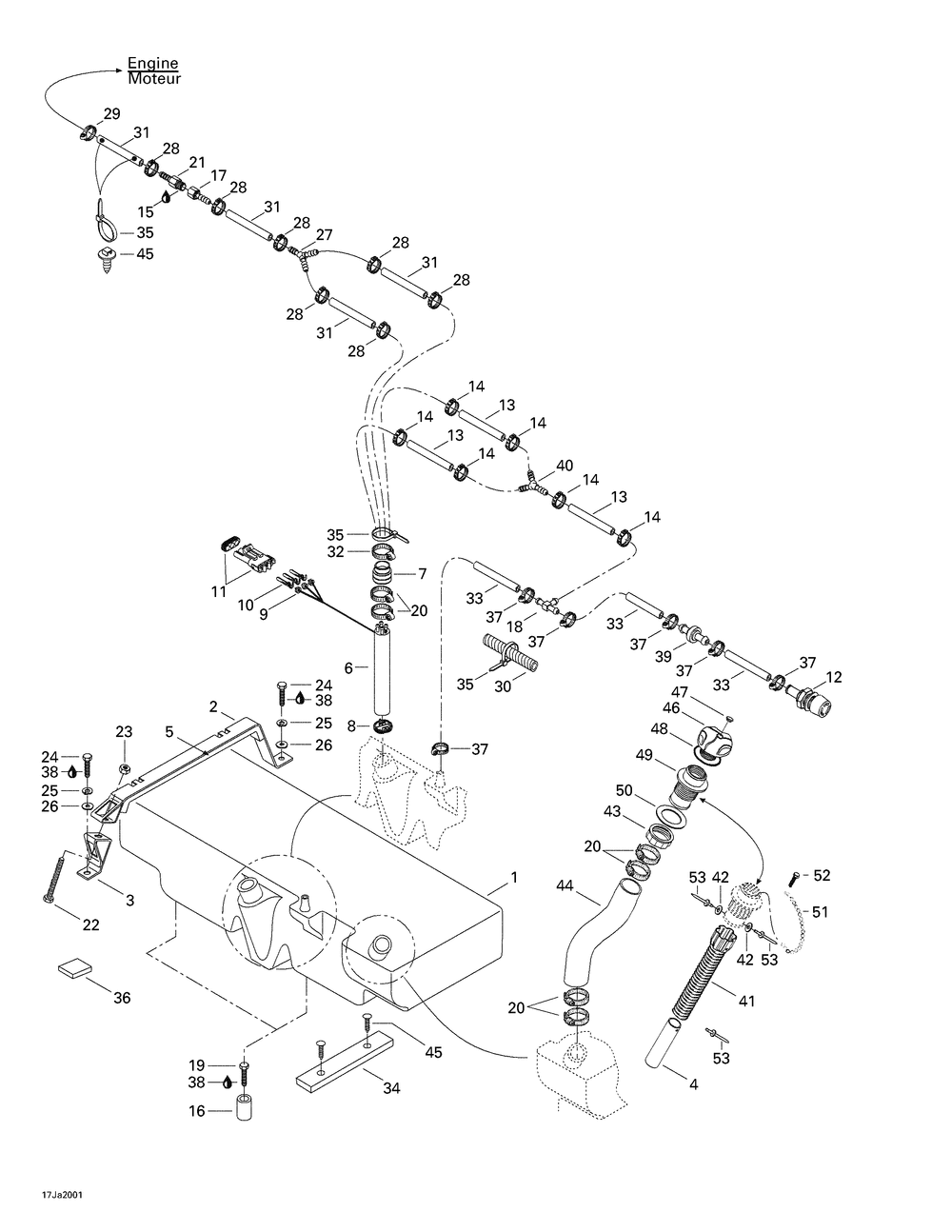

02- Fuel System
№ Наименование Примечание Кол-во
1 FUEL TANK PLASTIC 1
2 SANGLE RES.ESS.*STRAP-FUEL TANK 2
3 TANK BRACKET 2
5 PROTECTOR PAD 2
6 BAFFLE PICK-UP ASStahos_Y Includes 38 - 43. 1
7 FUEL TUBE ADAPTOR 1
8 FUEL FILTER 1
9 Wire Seal 3
10 FEMALE TERMINAL (5.000 per pack) 3
11 MALE HOUSING 3 CIRCUITS 1
12 AERATEUR *VENT-BOAT 1
13 BOYAU ESS.6MM *HOSE-FUEL(6MM) (5.000 per pack) 0
14 BRIDE SERRAGE *CLAMP-NORMA 6
15 LOCTITE PIPE SEALANT 250 ML 0
16 RUBBER BUMPER 2
17 HOSE FITTING CHALLENGER 1800 (5774). 1
18 T-FITTING 1
19 PHILLIPS SCREW M5 X 35 (5.000 per pack) 2
20 Norma Clamp 6
21 ANTI-SIPHON VALVE CHALLENGER 1800 (5774). 1
22 HEX. SCREW M8 X 55 (5.000 per pack) 2
23 Hex. Elastic Nut M8 2
24 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 4
25 Lock Washer 8 mm, Stainless 4
26 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
27 RACCORD EN Y *FITTING-Y 1
28 BRIDE SERRAGE *CLAMP-NORMA 7
29 TRIDON GEAR CLAMP (5.000 per pack) 1
31 BOYAU 5/16" *HOSE-5/16" 0
32 NORMA CLAMP 1
33 BOYAU 16MM. *HOSE-16MM. (3.000 per pack) 0
34 TAMPON CAOUT. *PAD-RUBBER 4
35 Tie-Rap 180 mm 0
36 PROTECTEUR PAD (10.000 per pack) 1
37 NORMA CLAMP 6
38 LOCTITE 271 10 ML 0
39 VENT FUEL SURGE PROTECTOR 1
40 Y-FITTING 1
41 FILLER NECK INTERIOR 1
42 FLAT WASHER M3 STAINLESS (10.000 per pack) 2
43 FILLER NECK NUT FUEL 1
44 NECK FILLER HOSE 1
45 BLACK DART (5.000 per pack) 8
46 FUEL TANK CAP BLACK Includes 37 - 38. 1
47 SNAP CAP BLACK (5.000 per pack) 1
48 JOINT ETANCHE *GASKET (5.000 per pack) 1
49 FILLER NECK 1
50 JOINT ETANCHE *GASKET 1
51 OIL CAP CHAIN (5.000 per pack) 1
52 SCREW K40 X 10 (5.000 per pack) 1
53 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 3
