SEA-DOO Sportster, 5614 Sportster, 5614 05- Propulsion System

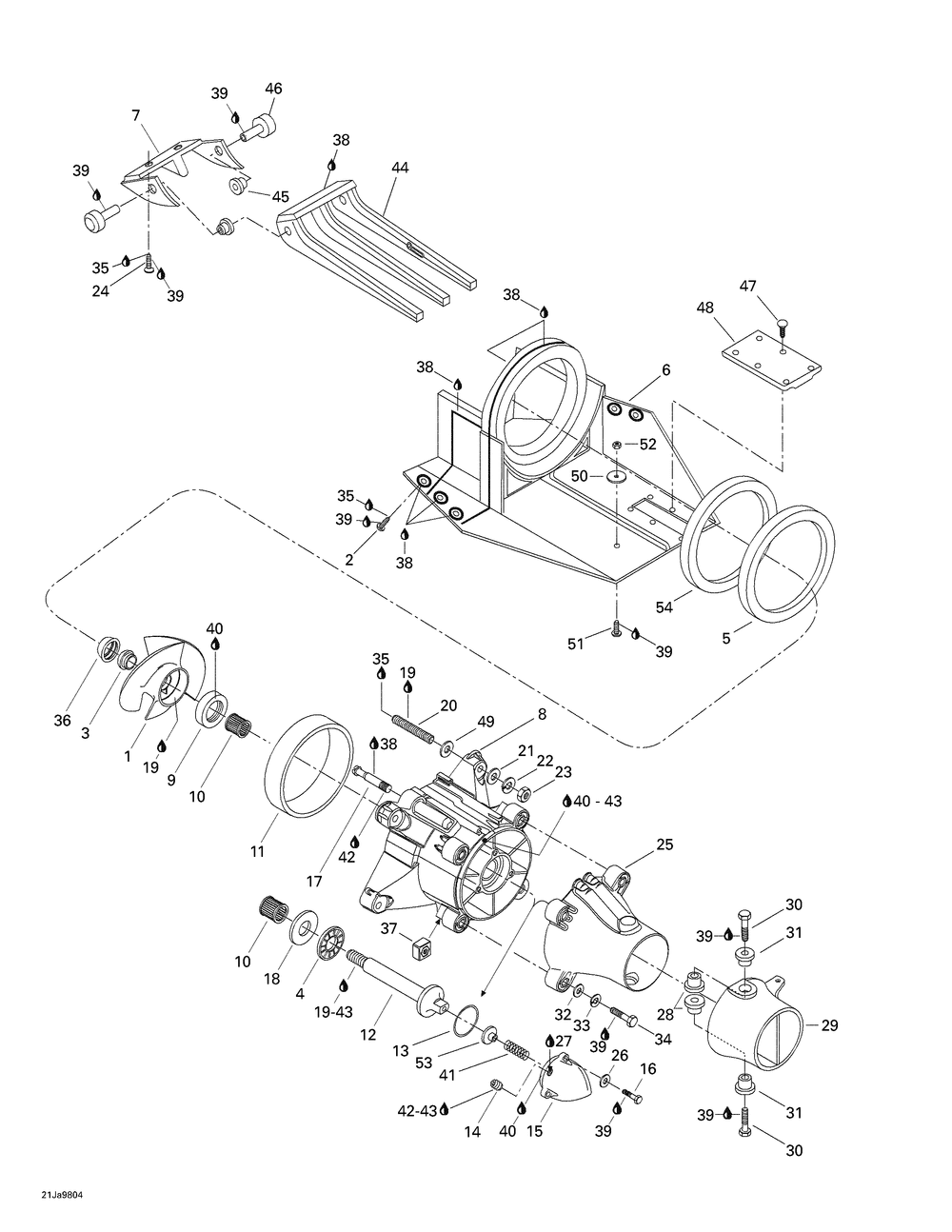

05- Propulsion System
№ Наименование Примечание Кол-во
1 HELICE STLSS.AS*IMPELLER-ASSY. 1
2 PHILLIPS SCREW M6 X 40 (5.000 per pack) 6
3 IMPELLER BOOT (2.000 per pack) 1
4 PALIER A BUTEE *THRUST-BEARING 1
5 ANNEAU NEOPRENE*NEOPRENE SEAL GTS 5818. (5.000 per pack) 1
6 SABOT NOIR *SHOE-BLACK 1
7 GRATE SUPPORT 1
8 CARTER HELICE *IMPELLER HOUS. Includes 7 - 10. 1
9 OIL SEAL 1
10 NEEDLE BEARING 2
11 BAGUE D USURE *WEAR RING 1
12 ARBRE HELICE *SHAFT-IMPELLER 1
13 O-RING (5.000 per pack) 1
14 PIPE PLUG SOCKET HEAD 1/8-27 NPT (5.000 per pack) 1
15 COUVERCLE TURB.*COVER-IMPELLER 1
16 HEX. SCREW M5 X 20 (5.000 per pack) 3
17 RACCORD POMPE *FITTING-PUMP 1
18 THRUST WASHER (5.000 per pack) 1
19 LOCTITE 271 10 ML 0
20 STUD-M10 (4.000 per pack) 4
21 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 4
22 HELICOIDAL LOCK WASHER M10 (5.000 per pack) 4
23 HEX. NUT M10 (5.000 per pack) 4
24 PHILLIPS SCREW M6 X 25 (5.000 per pack) 2
25 VENTURI *VENTURI 1
26 FLAT WASHER M5 STAINLESS (10.000 per pack) 3
27 HUILE DE POMPE *OIL-PUMP (12.000 per pack) 0
28 VENTURI BUSHING (5.000 per pack) 2
29 BUSE DIREC.NOIR*NOZZLE-BLACK 1
30 HEX. SCREW M8 X 30 (5.000 per pack) 2
31 ENTRETOISE *SPACER-VENTURI (4.000 per pack) 2
32 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
33 WASHER-LOCK HELICAL DIN.127B-A2 (10.000 per pack) 4
34 SCREW-HEX.CAP DIN.931A2 (5.000 per pack) 4
35 SILICONE SEALANT 51388 300 ML 0
36 IMPELLER RING (10.000 per pack) 1
37 SQUARE NUT M8 (5.000 per pack) 4
38 INSTANT GASKET 40479 (ORM-D) 0
40 LOCTITE 518 50 ML 0
41 RESSORT *SPRING (4.000 per pack) 1
42 LOCTITE 592 PIPE SEALANT 50 ML Package T 0
43 (ORM-D) LOCTITE PRIMER N 128 G 0
44 GRILLE MOBILE *GRATE-MOBIL 1
45 PLASTIC BUSHING 2
46 SOCKET SCREW M6 X 8 (2.000 per pack) 2
47 PHILLIPS SCREW M5 X 10 (5.000 per pack) 6
48 OBTURATEUR SABO*CAP-SHOE RIDE 1
49 SHIM 0.9 MM 0
50 ANODE DE ZINC *ANODE-ZINC (5.000 per pack) 1
51 SCREW-CTSK.OV.HD.PH.1/4-20X5/8 1
52 PLASTITE HEX. SCREW M6.8 X 35 UTOPIA 205. (5.000 per pack) 1
53 POUSSOIR *PUSHER 1
54 ANNEAU *RING 1
