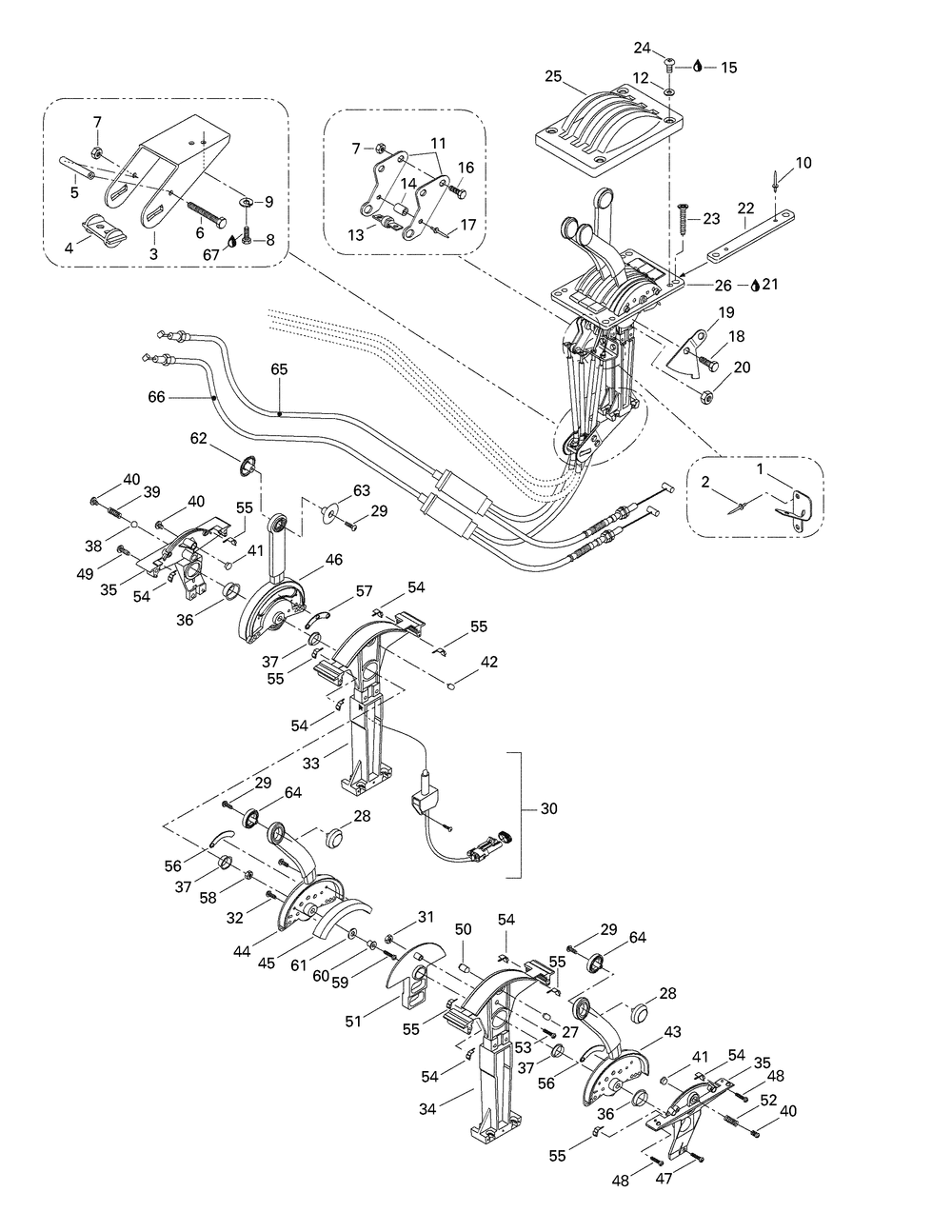

05- Control Handle

Корзина пуста
SEA-DOO Speedster, 5602/5608 Speedster, 5602/5608 05- Control Handle
05- Control Handle
№ Наименование Примечание Кол-во
1 CABLE SUPPORT 2
2 POP RIVET 1/8tahos_ (10.000 per pack) 4
3 SUPPORT 1
4 PIVOT BRACKET 1
5 SPACER 1
6 SOCKET HEAD SCREW M6 X 80 (5.000 per pack) 1
7 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 3
8 HEX. CAP SCREW M6 X 12 (5.000 per pack) 2
9 WASHER-LOCK HELICAL DIN.127B-A2 (5.000 per pack) 2
10 POP RIVET 3/16" (10.000 per pack) 4
11 MAILLE CABLE *LINK-REVERSE 2
12 FLAT WASHER 4 MM (10.000 per pack) 4
13 PIVOT BRACKET 1
14 SPACER (5.000 per pack) 1
15 LOCTITE 425 *LOCTITE-425 0
16 HEX. SCREW M6 X 16 (5.000 per pack) 2
17 POP-RIVET 1/8" (10.000 per pack) 1
18 HEX. SCREW M5 X 16 (5.000 per pack) 2
19 THROTTLE LINK 2
20 HEX. ELASTIC NUT M5 (5.000 per pack) 2
21 SYNTHETIC GREASE 400 G 0
22 SHIFTER INSERT 2
23 PHILLIPS SCREW M5 X 30 (5.000 per pack) 4
24 PHILLIPS SCREW M4 X 10 (5.000 per pack) 4
26 CONTROLE ULTRAF*CONTROL-ULTRAF Includes 26 - 64. 1
27 THROTTLE LEVER PIN 1
28 HALF-THROTTLE HANDLE THREADED 2
29 SCREW M3.5 X 25 3
30 NEUTRAL SWITCH ASS Y 1
33 CADRE GAUCHE *FRAME-LEFT 1
34 CADRE DROIT *FRAME-RIGHT 1
35 HALF-CASE 2
36 COUSSINET *BUSH 2
37 COUSSINET *BUSH 3
38 BALL 1
39 SPRING 1
40 CAP SCREW 3
41 FRICTION INSERT 2
42 BLOCKING PIVOT 1
43 THROTTLE LEVER 1
44 LH THROTTLE LEVER 1
46 SHIFT LEVER 1
47 SCREW M5 X 60 2
48 SCREW M5 X 20 (10.000 per pack) 2
49 SCREW M5 X 70 2
50 THROTTLE LEVER PIN 1
51 SPACER FRAME 1
52 SPRING 1
53 SCREW M5 X 25 1
54 RH WATER SEAL (5.000 per pack) 6
55 LH WATER SEAL (5.000 per pack) 6
56 SPACER 2
57 SHIFT LEVER SPACER 1
58 NUT M6 1
59 VIS M6 X 35 *SCREW-UNI 7687 1
60 COUSSINET *BUSH 1
61 RONDELLE *WASHER 1
62 HALF-SHIFT HANDLE THREADED 1
63 HALF-SHIFT HANDLE 1
64 HALF-THROTTLE HANDLE 2
65 CABLE ACCELERAT*CABLE-RH. 1
66 CABLE ACCELERAT*CABLE-LH. 1
67 LOCTITE 243 10 ML 0
