SEA-DOO 230 Challenger 310 230 Challenger 310 09- Engine Compartment And Accessories

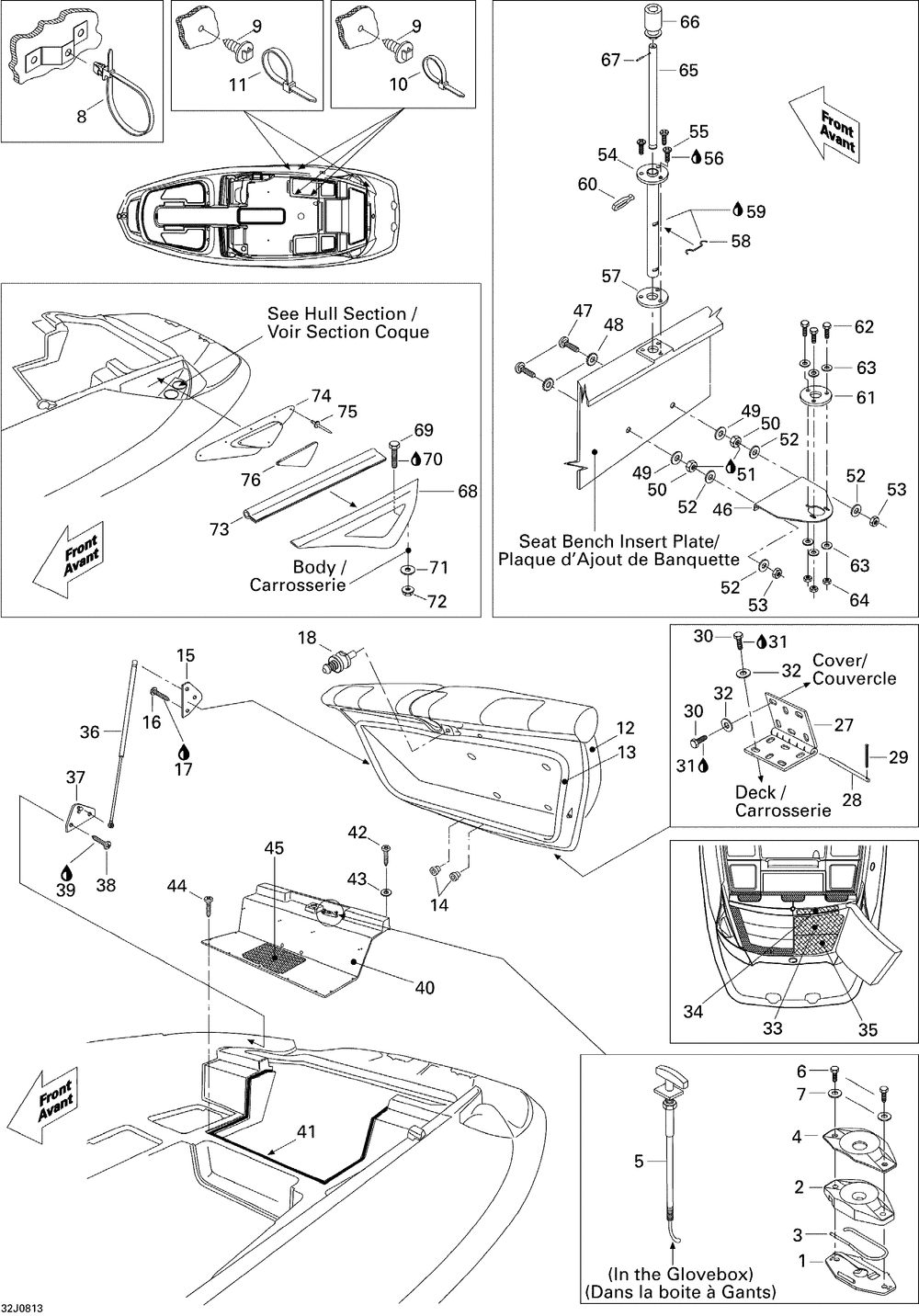

09- Engine Compartment And Accessories
№ Наименование Примечание Кол-во
1 LATCH COVER 1
2 LATCH BASE 1
3 SPRING (5.000 per pack) 1
4 LATCH PROTECTOR 1
5 LATCH CABLE 1
6 HEX. SCREW M6 X 35 (10.000 per pack) 2
7 Flat Washer M6, Stainless 2
8 TIE RAP WITH DART (40.000 per pack) 0
9 Mount Dart 5
10 Tie-Rap 180 mm 3
11 Tie-Rap 350 mm 2
12 ENGINE COVER BLUE 1
13 D-SEAL RUBBER (5.000 per pack) 0
14 GROMMET 2
15 SUPP.AMORT.*BRACKET-SHOCK/FLAT 2
16 HEX. SCREW M5 X 16 (5.000 per pack) 6
17 LOCTITE 243 10 ML 0
18 LATCH STUD 1
27 CHARNIERE *HINGE Includes 28 to 30 2
28 HINGE ROD 1
29 COTTER PIN M2.5 X 12 (25.000 per pack) 1
30 HEX. SCREW M6 X 25 (5.000 per pack) 12
33 NON SKID CARPET 1
34 NON SKID CARPET 1
35 NON SKID CARPET 1
36 GAS SHOCK 2
38 HEX. SCREW M5 X 25 (5.000 per pack) 6
40 SEAT BENCH INSERT PLATE 1
41 ANNEAU ETANCHE *SEAL-TRAY PAC=1.827M 0
42 SCREW 1/4tahos_-20 X 2tahos_ (10.000 per pack) 2
43 FINITION WASHER (10.000 per pack) 2
44 PHILLIPS HEAD SCREW 1/4 - 20 X 1-1/2" 11
46 FIXATION PLATE 1
47 BOLT-ELEVATOR (5.000 per pack) 2
48 TOOTHED LOCK WASHER (5.000 per pack) 2
49 Flat Washer M6, Stainless 2
50 HEX. NUT 1/4" (5.000 per pack) 2
51 LOCTITE 271 10 ML 0
53 NUT-STOP ELASTIC MS-17830 (5.000 per pack) 2
54 FIX TUBE 1
55 PHILLIPS SCREW M6 X 40 (5.000 per pack) 3
57 RUBBER WASHER 1
58 SPRING 1
59 SYNTHETIC GREASE 400 G 0
60 WINDSHIELD LATCH (50.000 per pack) 1
61 RETAINER WASHER 1
62 Hex. Forming Screw M6 X 20 3
64 Hex. Elastic Stop Nut M6 3
65 MANCHE DE SKI*SHAFT-SKI 1
66 SKI SHAFT CAP 1
67 ROLL PIN M8 X 40 STAINLESS 1
68 VENT COVER PORT SIDE BLUE 1
68 VENT COVER STARBOARD BLUE 1
68 VENT COVER STARBOARD SAGE GREEN 1
68 VENT COVER PORT SIDE SAGE GREEN 1
71 FLAT WASHER (5.000 per pack) 4
73 J-TRIM BLUE 0
74 VENT BASE PORT SIDE 1
74 VENT BASE STARBOARD 1
75 POP RIVET 1/8" (25.000 per pack) 14
76 VENT INSERT STARBOARD 1
76 VENT INSERT PORT SIDE 1
