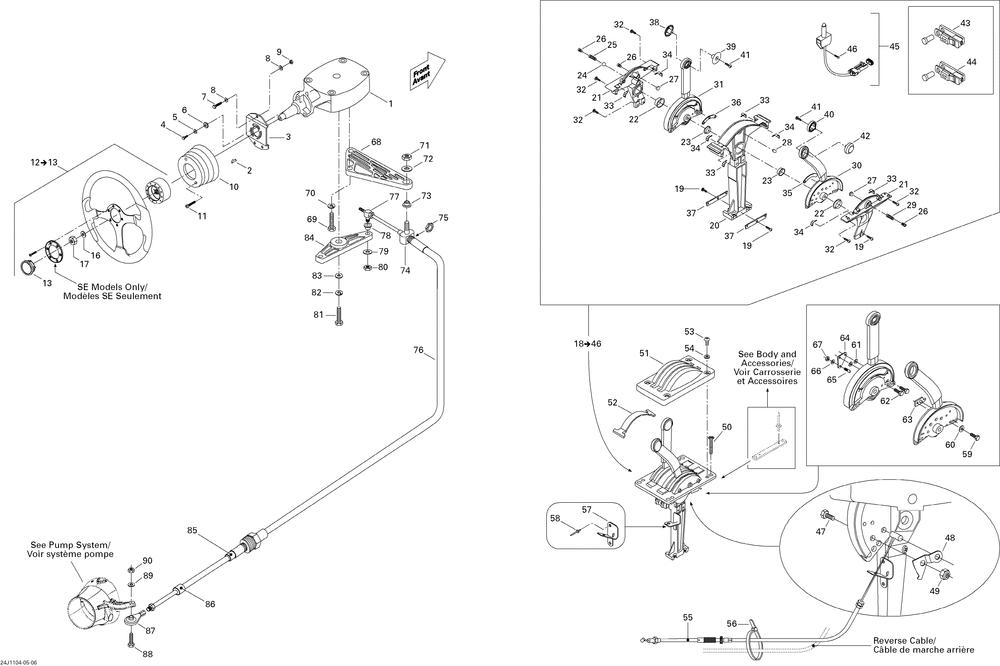

07- Steering

Корзина пуста
SEA-DOO 180 Challenger SE 255 180 Challenger SE 255 07- Steering
07- Steering
№ Наименование Примечание Кол-во
1 HELM ASS Y 1
2 WOODRUFF KEY 1
3 SUPPORT 1
4 HEX. SCREW 1/4"-20 X 3/4tahos_ SCOTCH GRIP (5.000 per pack) 3
5 Flat Washer M6, Stainless 3
6 Serrated Lock Washer 8 mm 3
7 HEX. SCREW M6 X 40 (5.000 per pack) 3
8 Flat Washer M6, Stainless 6
9 Hex. Elastic Stop Nut M6 3
10 COLLAR BLACK 1
11 SCREW 8-32 X 1-1/4" (5.000 per pack) 2
12 STEERING WHEEL ASS Y SP 1
13 CENTER CAP 210 SP 1
16 FLAT WASHER STAINLESS (5.000 per pack) 1
17 LOCK NUT 1/2"-20 (5.000 per pack) 1
18 CONTR.ULTRAF*CONTROL-ULTRAFLEX Includes 13 - 41. 1
19 SCREW M5 X 16 (5.000 per pack) 4
22 COUSSINET *BUSH 2
23 COUSSINET *BUSH 2
24 BALL 1
25 SPRING 1
26 CAP SCREW 3
27 FRICTION INSERT 2
28 BLOCKING PIVOT 1
29 SPRING 1
30 THROTTLE LEVER 1
31 SHIFT LEVER 1
32 SCREW M5 X 20 (5.000 per pack) 4
34 LH WATER SEAL (5.000 per pack) 4
35 THROTTLE LEVER SPACER 1
36 SHIFT LEVER SPACER 1
37 RETAINING PLATE 2
38 HALF-SHIFT HANDLE THREADED 1
39 HALF-SHIFT HANDLE 1
40 HALF-THROTTLE HANDLE 1
41 SCREW M3.5 X 25 2
42 HALF-THROTTLE HANDLE THREADED 1
43 CLEVIS L26 1
44 CLEVIS L25 1
45 NEUTRAL SWITCH ASS Y 1
46 SCREW M3 X 6 (5.000 per pack) 1
47 HEX. SCREW M5 X 16 (5.000 per pack) 1
48 THROTTLE LINK 1
49 HEX. ELASTIC NUT M5 (5.000 per pack) 1
50 PHILLIPS SCREW M5 X 30 (5.000 per pack) 4
51 PLATE CONTROL 1
52 CONTROL PLATE INSERT 1
53 PHILLIPS SCREW M4 X 10 (5.000 per pack) 4
54 Flat Washer 4 mm 4
55 RH THROTTLE CABLE 1
56 Tie-Rap 180 mm 1
57 CABLE SUPPORT 1
58 POP RIVET 1/8tahos_ (10.000 per pack) 2
59 HEX. CAP SCREW M6 X 12 (5.000 per pack) 1
60 RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack) 1
63 REVERSE CATCH 1
64 REVERSE STOPPER 1
65 REVERSE PIN 1
68 CABLE SUPPORT 1
71 LOCK NUT (5.000 per pack) 1
72 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
73 FLANGED BUSHING 1
74 PIVOT 3/8tahos_ 1
75 HEX. JAM NUT 5/8"-18 1
76 CABLE STEERING 1
77 PIVOT 1
78 BUSHING (2.000 per pack) 1
79 FLAT WASHER (5.000 per pack) 1
80 NUT-STOP ELASTIC MS-17830 (5.000 per pack) 1
81 HEX. SCREW 1/4"-20 X 1tahos_ SCOTCH GRIP 1
84 ARM 1
85 SEAL SWIVEL 1
86 TERMINAL WIPER 1
87 BALL JOINT 1
88 HEX. SCREW M6 X 35 (5.000 per pack) 1
