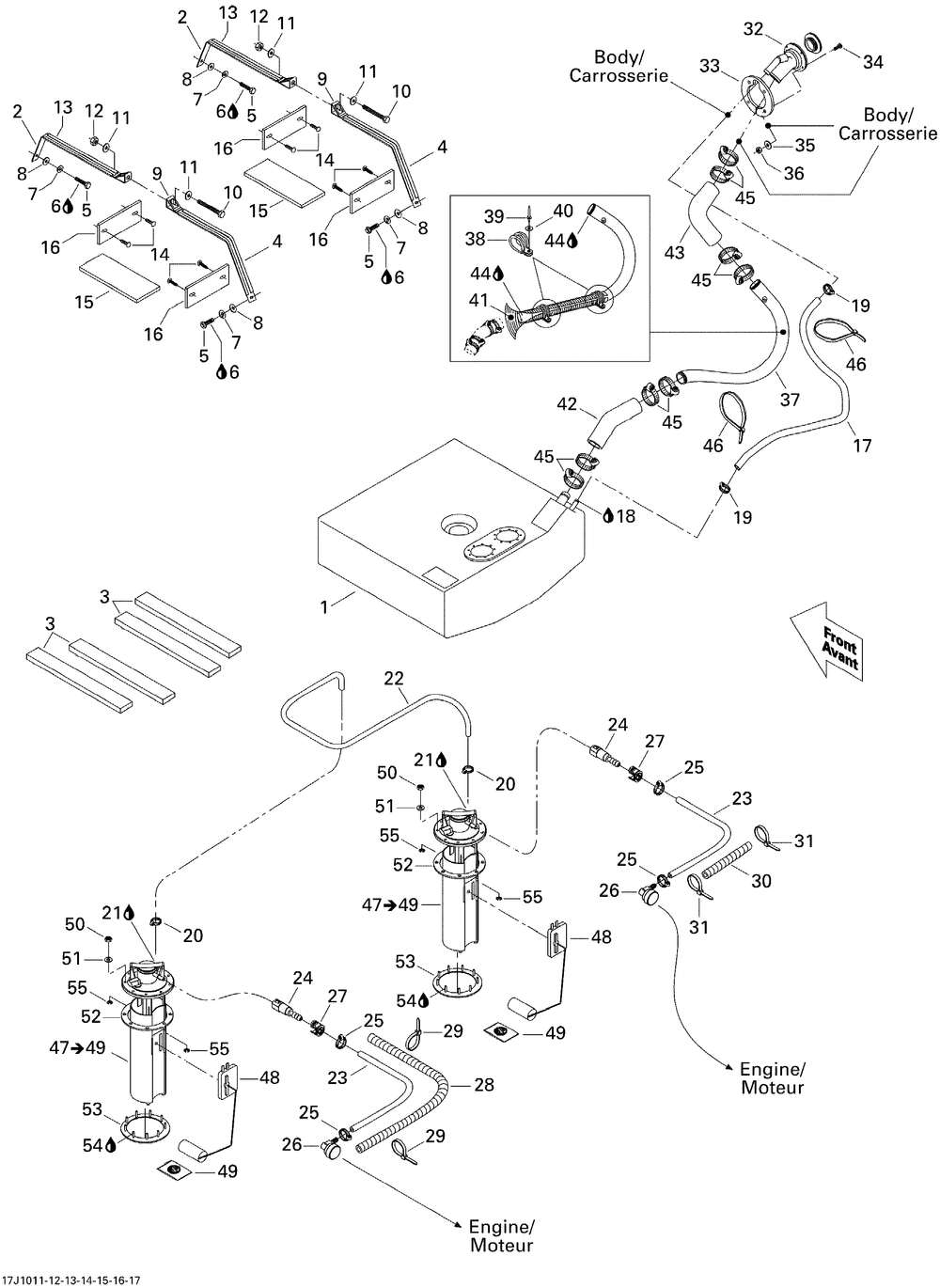

02- Fuel System

Корзина пуста
Наименование Примечание Кол-во
1 FUEL TANK ASS Y 1
2 FUEL TANK STRAP 2
3 PROTECTOR PAD 4
4 PROTECTOR PAD 2
5 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 4
6 LOCTITE 271 10 ML 0
7 Lock Washer 8 mm, Stainless 4
8 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
9 FUEL TANK STRAP 2
10 HEX. SCREW M8 X 80 (5.000 per pack) 2
12 Hex. Elastic Nut M8 2
13 PROTECTOR PAD 2
14 BLACK DART (5.000 per pack) 8
15 NEOPRENE PAD 2
16 MUFFLER RUBBER PAD 4
17 BOYAU 16MM. *HOSE-16MM. (3.000 per pack) 0
19 NORMA CLAMP 2
20 TRIDON GEAR CLAMP (10.000 per pack) 2
22 BOYAU *HOSE-1/4" (2.000 per pack) 0
23 HOSE-5/16" (2.000 per pack) 0
24 BOITIER CONNEC.*CONNECTOR-BOX 1
25 NORMA CLAMP 2
26 Elbow Fitting 90? 1
27 STOPPER CONNECTOR (10.000 per pack) 1
28 SLIT CONDUIT METER (5.000 per pack) 0
29 Tie-Rap 142 mm 2
32 FILLER NECK 1
33 SPACER 1
34 PHILLIPS SCREW M4 X 35 4
35 Flat Washer 4 mm 4
36 NUT-STOP ELASTIC DIN.985A2 (5.000 per pack) 4
37 FILLER NECK HOSE 1
38 CLAMP 2
39 POP RIVET 3/16" (5.000 per pack) 2
40 Flat Washer 5 mm, Stainless 2
41 SPLIT CONDUIT 0
42 FILLER NECK HOSE 0
45 NORMA CLAMP 8
46 Tie-Rap 350 mm 3
47 FUEL PUMP MODULE ASS Y Includes 20 to 22 2
48 SENSOR LEVER 2
49 FUEL FILTER BOSCH 2
50 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 18
51 Flat Washer 5 mm, Stainless 18
52 JOINT ETANCHE *GASKET 2
53 C-RING 9 STUDS 2
54 LOCTITE 518 50 ML 0
55 CIRCLIP 5 MM (10.000 per pack) 4
