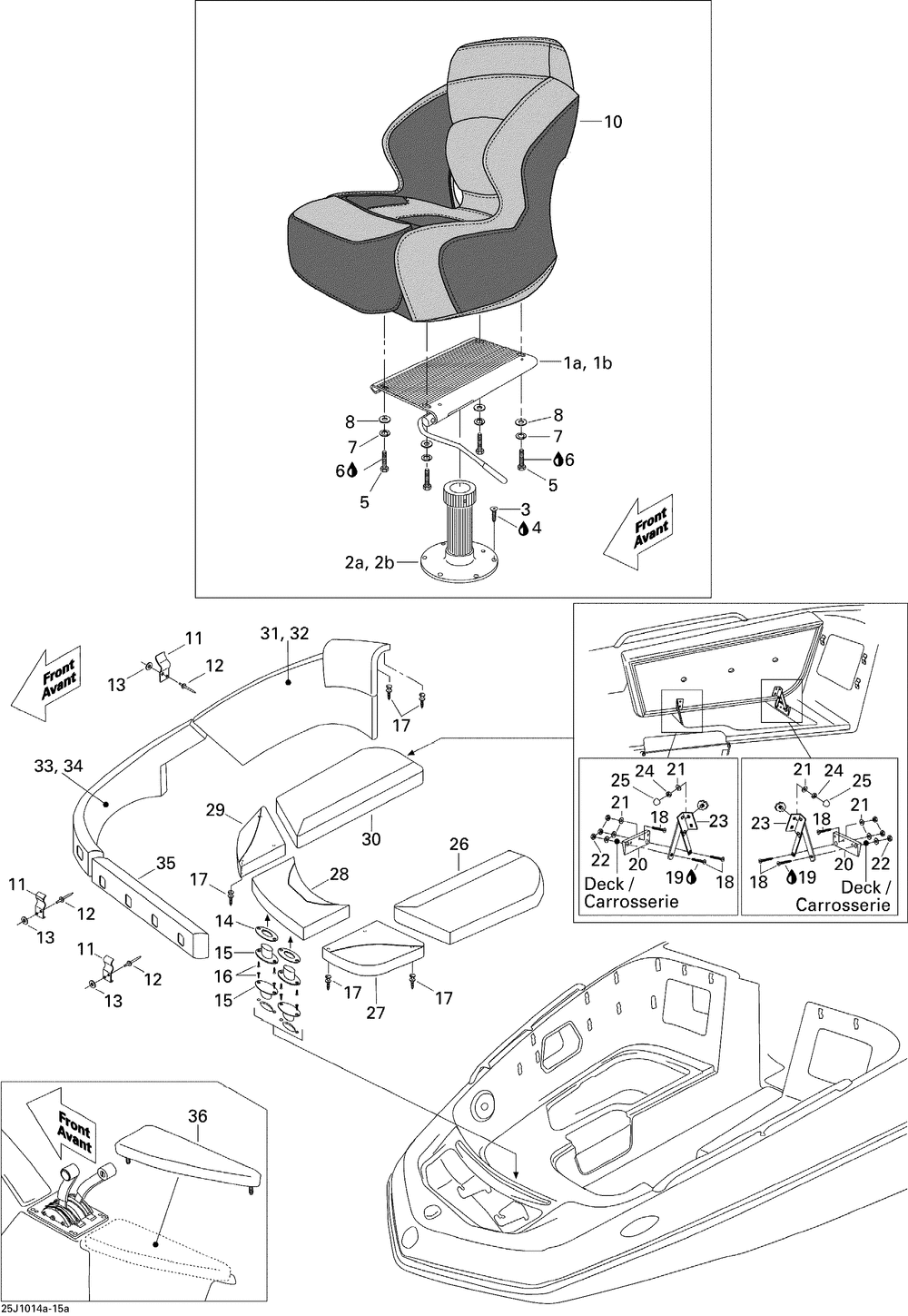

09- Seat Front View

№	Наименование	Кол-во
1a	SLIDE AND SWIVEL SEAT BASE SE	1
1b	SLIDE AND SWIVEL SEAT BASE	1
2a	SEAT PEDESTAL SE	1
2b	SEAT PEDESTAL	1
3	PHILLIPS SCREW 1/4"-20 X 1-1/4"	12
4	LOCTITE 243 10 ML	0
5	TAPPING SCREW 1/4-20 X 3/4"	8
7	RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack)	8
8	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	8
10	BUCKET SEAT ASS Y	2
11	SEAT SUPPORT	35
12	POP RIVET 3/16" (5.000 per pack)	72
13	Flat Washer M6, Stainless	72
14	SPACER MAGNET 1/8	5
15	MAGNETIC CATCH ASS Y	5
16	SCREW 8 X 3/4tahos_ (10.000 per pack)	20
17	DART 1" WHITE	19
18	SOCKET HEAD SCREW M6 X 40 (10.000 per pack)	12
20	HINGE SHIM	4
21	Flat Washer M6, Stainless	20
22	Hex. Elastic Stop Nut M6	12
23	HINGE SET	2
24	HEX. NUT 1/4" (5.000 per pack)	8
25	PLASTIC CAP WHITE	8
26	CUSHION ASSY/BOW-PORT	1
27	FRONT BOW CUSHION PORT SIDE	1
28	CUSHION ASS Y BOW-CENTER	1
29	CUSHION ASS Y BOW STARBOARD SIDE	1
30	CUSHION ASSY/BOW-STBD	1
31	BOW BACKREST PORT	1
32	BOW BACKREST STARBOARD	1
33	BOW FRONT BACKREST PORT SIDE	1
34	BOW FRONT BACKREST STARBOARD SIDE	1
35	BOW CENTER BACKREST	1
36	ARM SUPPORT ASS Y STARBOARD	1
