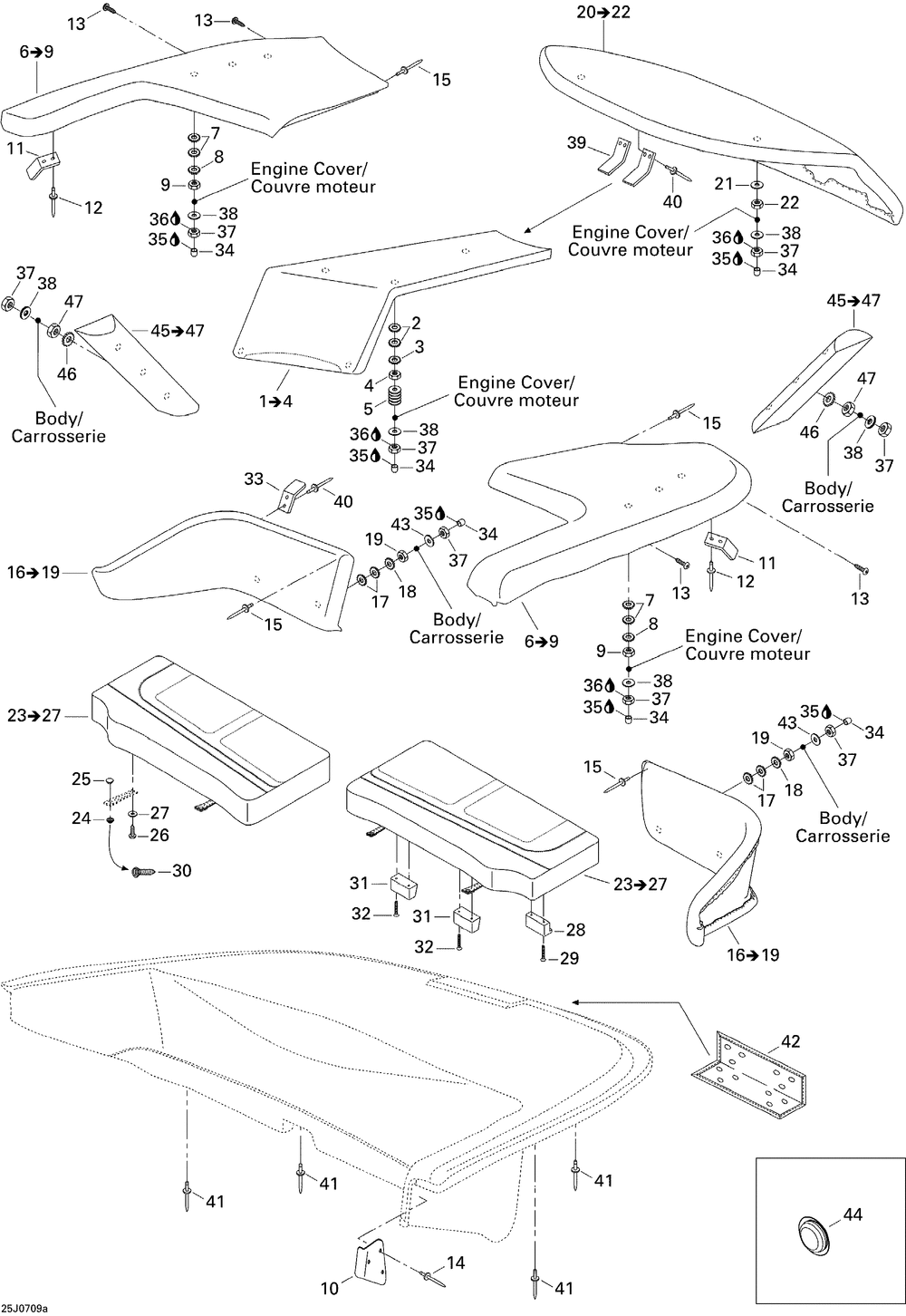

SEA-DOO Utopia 205 SE 155NA Utopia 205 SE 155NA 09- Seat 1
09- Seat 1
№ Наименование Примечание Кол-во
1 CENTER SUNDECK CUSHION (Includes 25 to 28 ) 1
2 TOOTHED LOCK WASHER (5.000 per pack) 10
3 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 5
4 HEX. JAM NUT (25.000 per pack) 5
5 FLAT WASHER PLASTIC (5.000 per pack) 10
6 SUNDECK CUSHION PORT SIDE (Includes 19 to 22 ) 1
6 SUNDECK CUSHION STARBOARD (Includes 19 to 22 ) 1
10 UPHOLSTERY CAP PORT SIDE 1
10 UPHOLSTERY CAP STARBOARD 1
11 SLOTTED KEYHOLD CLIP (10.000 per pack) 4
12 POP RIVET 1/8" (10.000 per pack) 4
13 PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack) 4
14 AVDEL RIVET 3/16" (10.000 per pack) 6
15 POP RIVET 3/16" (10.000 per pack) 4
16 SUNDECK BACKREST PORT SIDE (Includes 6 to 9 ) 1
16 SUNDECK BACKREST STARBOARD (Includes 6 to 9 ) 1
20 REAR SUNDECK CUSHION (Includes 36 to 38 ) 1
23 REAR CUSHION ASS Y PORT SIDE (Includes 1 to 5 ) 1
23 REAR CUSHION ASS Y STARBOARD (Includes 1 to 5 ) 1
24 SNAP BASE WAKE (4.000 per pack) 2
25 SNAP COVER SE (10.000 per pack) 2
26 SCREW 8 X 3/4tahos_ (10.000 per pack) 2
27 FLAT WASHER (5.000 per pack) 2
28 SEAT LATCH 2
29 SCREW 1/4tahos_-20 X 2tahos_ (10.000 per pack) 4
30 SCREW-STUD TAPP. 3/8" SS WAKE 4
31 LATCH 4
32 SCREW tahos_8 X 1-1/4tahos_ SP 8
33 RETAINING CLIP 10
34 PLASTIC CAP WHITE 0
35 LOCTITE 414 29.5 CC 0
36 LOCTITE 243 10 ML 0
37 HEX. NUT 1/4" (5.000 per pack) 23
38 FLAT WASHER 9/32tahos_ (5.000 per pack) 19
39 SUNDECK PLATE 2
40 POP RIVET 3/16" (10.000 per pack) 24
41 POP RIVET 3/16" (10.000 per pack) 4
42 HINGE COVER 1
43 WASHER-FENDER/S.S. 4
44 BLACK PLUG (4.000 per pack) 6
45 SOUNDPAD ASS Y PORT SIDE (Includes 44 to 46 ) 1
45 SOUNDPAD ASS Y STARBOARD (Includes 44 to 46 ) 1
