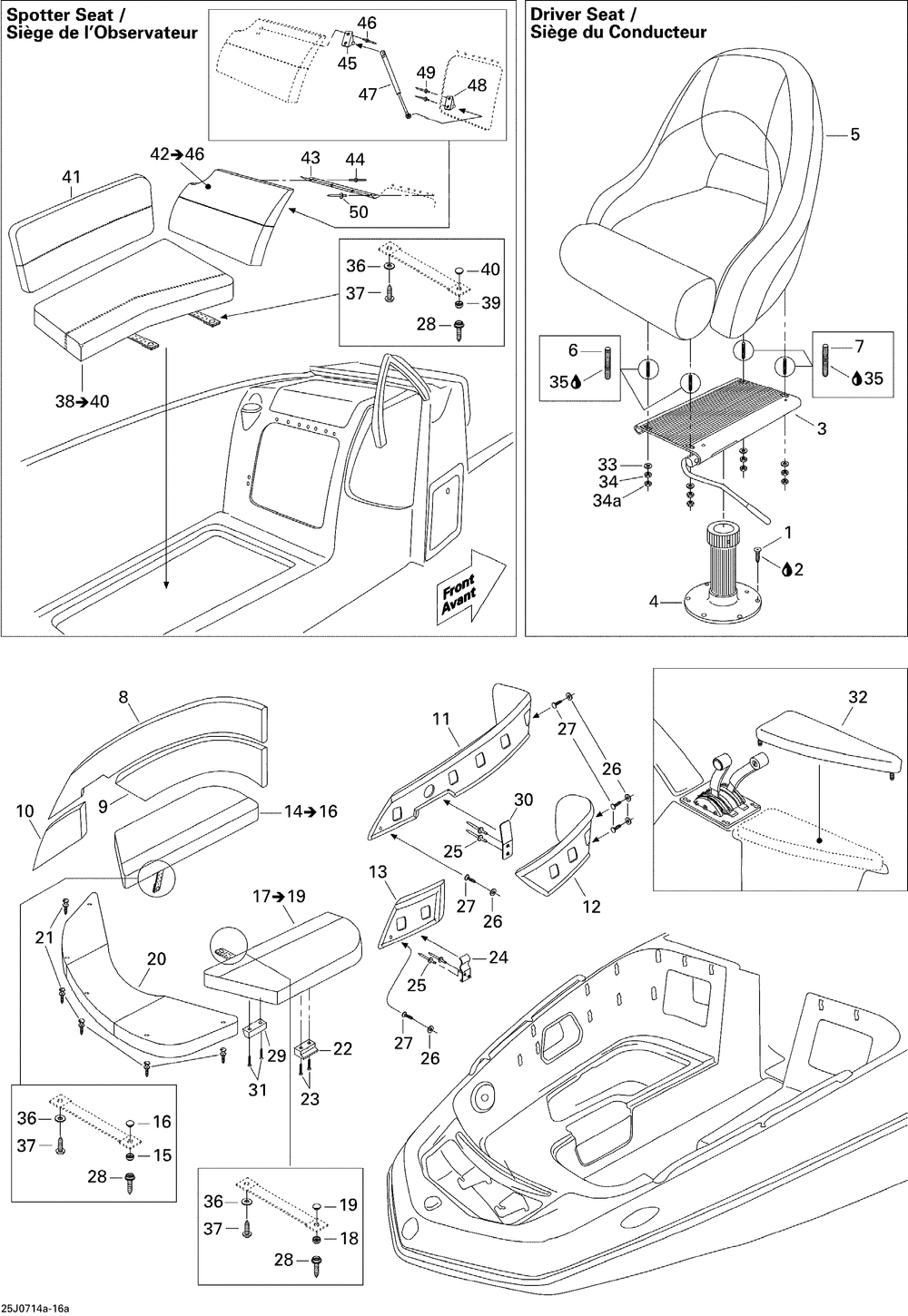

09- Seat Front View

№	Наименование	Кол-во
1	PHILLIPS SCREW 1/4"-20 X 1-1/4"	6
2	LOCTITE 243 10 ML	0
3	SLIDE AND SWIVEL SEAT BASE	1
4	SEAT PEDESTAL	1
5	BUCKET SEAT ASS Y (Includes 10 to 12 )	1
6	SEAT STUD 1/4-20 X 2 1/2"	2
8	FRONT UPPER SIDE BACKREST STARBOARD	1
9	FRONT LOWER SIDE BACKREST STARBOARD	1
10	FRONT SIDE BACKREST STARBOARD	1
11	FRONT UPPER SIDE BACKREST PORT SIDE	1
12	FRONT LOWER SIDE BACKREST PORT SIDE	1
13	FRONT SIDE BACKREST PORT SIDE	1
14	COUSSIN ASSEM.*CUSHION ASSY/BOW-STBD. (Starboard Includes 28 to 32 )	1
15	SNAP BASE WAKE (4.000 per pack)	1
16	SNAP COVER SE (10.000 per pack)	1
17	COUSSIN ASSEM.*CUSHION ASSY/BOW-PORT (Portside Includes 23 to 27 )	1
20	FRONT CUSHION ASS Y	1
21	DART (10.000 per pack)	5
22	SEAT LATCH	3
23	SCREW 1/4tahos_-20 X 2tahos_ (10.000 per pack)	6
24	SEAT SUPPORT	30
25	POP RIVET 3/16" (5.000 per pack)	40
26	Flat Washer M6, Stainless	10
27	BLACK DART (10.000 per pack)	10
28	SCREW-STUD TAPP. 3/8" SS WAKE	3
29	LATCH	2
30	RETAINING CLIP	4
31	SCREW tahos_8 X 1-1/4tahos_ SP	4
32	ACCOUD.ASSEM.*ELBOWREST ASSY/STBD.	1
33	RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack)	4
34	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	4
34a	HEX. NUT 1/4" (5.000 per pack)	4
36	FLAT WASHER (5.000 per pack)	0
38	COUSSIN ASSEM.*CUSHION ASSY/SPOTTER (Includes 41 to 45 )	1
41	DOSSIER-PLAT.*BACKREST-GUNNEL/SPOTTER	1
42	DOSS.RANGEM.*BACKREST-STORAGE/SPOTTER Includes 42 to 46	1
43	HINGE	1
44	POP RIVET 3/16" (10.000 per pack)	7
45	SUPP.AMORT.*BRACKET-SHOCK/REWORK	1
47	GAS SHOCK	1
