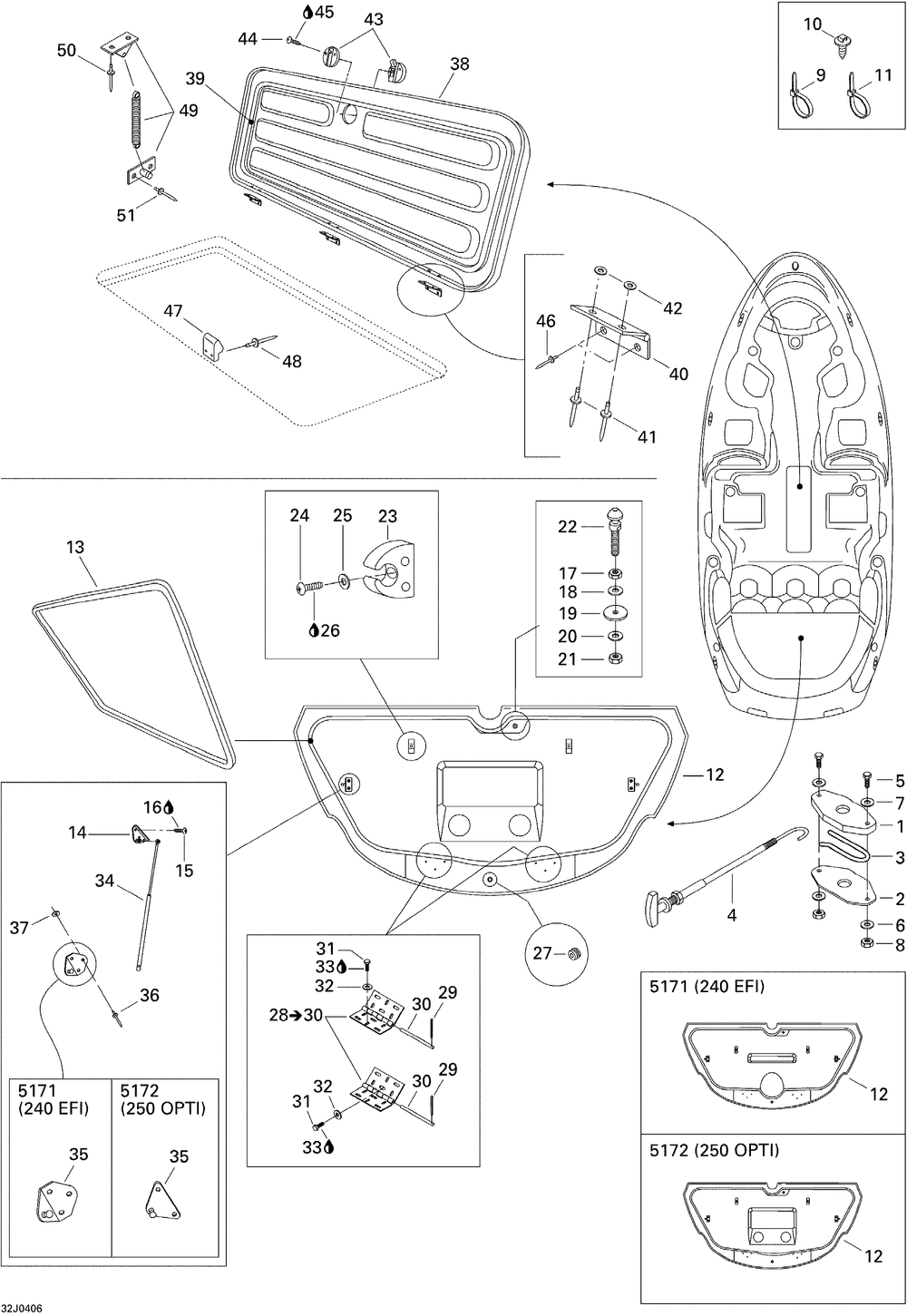

09- Engine Compartment and Central Cover

№	Наименование	Кол-во
1	LATCH BASE	1
2	LATCH COVER	1
3	SPRING (5.000 per pack)	1
4	LATCH CABLE	1
5	HEX. SCREW M6 X 35 (10.000 per pack)	2
6	Flat Washer M6, Stainless	2
7	Flat Washer M6, Stainless	2
8	Hex. Elastic Stop Nut M6	2
9	Tie-Rap 350 mm	0
10	MOUNT DART (5.000 per pack)	0
11	Tie-Rap 180 mm	0
12	ENGINE COVER 5172 (250 OPTI)	1
13	NEOPRENE SEAL (8.000 per pack)	0
14	SUPP.AMORT.*BRACKET-SHOCK/REWORK	1
15	HEX. SCREW M4 X 16 (5.000 per pack)	4
16	LOCTITE 243 10 ML	0
17	HEX. JAM NUT M10 (5.000 per pack)	1
18	FLAT WASHER 10 MM STAINLESS (5.000 per pack)	1
19	RUBBER WASHER (5.000 per pack)	1
21	HEX. ELASTIC NUT M10 (5.000 per pack)	1
22	LATCH STUD	1
23	POLE SUPPORT Models Without Tower (2.000 per pack)	2
24	PHILLIPS SCREW M4 X 25 (5.000 per pack)	2
25	Flat Washer 4 mm	2
27	GROMMET	1
28	CHARNIERE *HINGE Includes 28 to 30	2
29	HINGE ROD	1
30	COTTER PIN M2.5 X 12 (25.000 per pack)	1
31	HEX. SCREW M6 X 25 (5.000 per pack)	12
34	GAS SHOCK PORT SIDE	1
34	GAS SHOCK Port Side	1
35	SUPP.AMORT.*BRACKET-SHOCK/FLAT	2
35	SUPP.CYL.CARR. *SUPP-CYL.BODY	2
36	POP RIVET 3/16" (5.000 per pack)	6
37	FLAT WASHER M5 STAINLESS (10.000 per pack)	6
38	CENTER COVER	1
39	ANNEAU ETANCHE *SEAL-TRAY PAC=1.827M	0
40	HINGE	3
41	POP RIVET 3/16"	6
43	LATCH WHITE	1
44	SCREW M5 X 16 (5.000 per pack)	2
45	LOCTITE 425 *LOCTITE-425	0
47	LATCH BRACKET	1
48	POP RIVET 5/32" (10.000 per pack)	2
49	SPRING SEAT	1
50	POP RIVET 3/16" (10.000 per pack)	2
