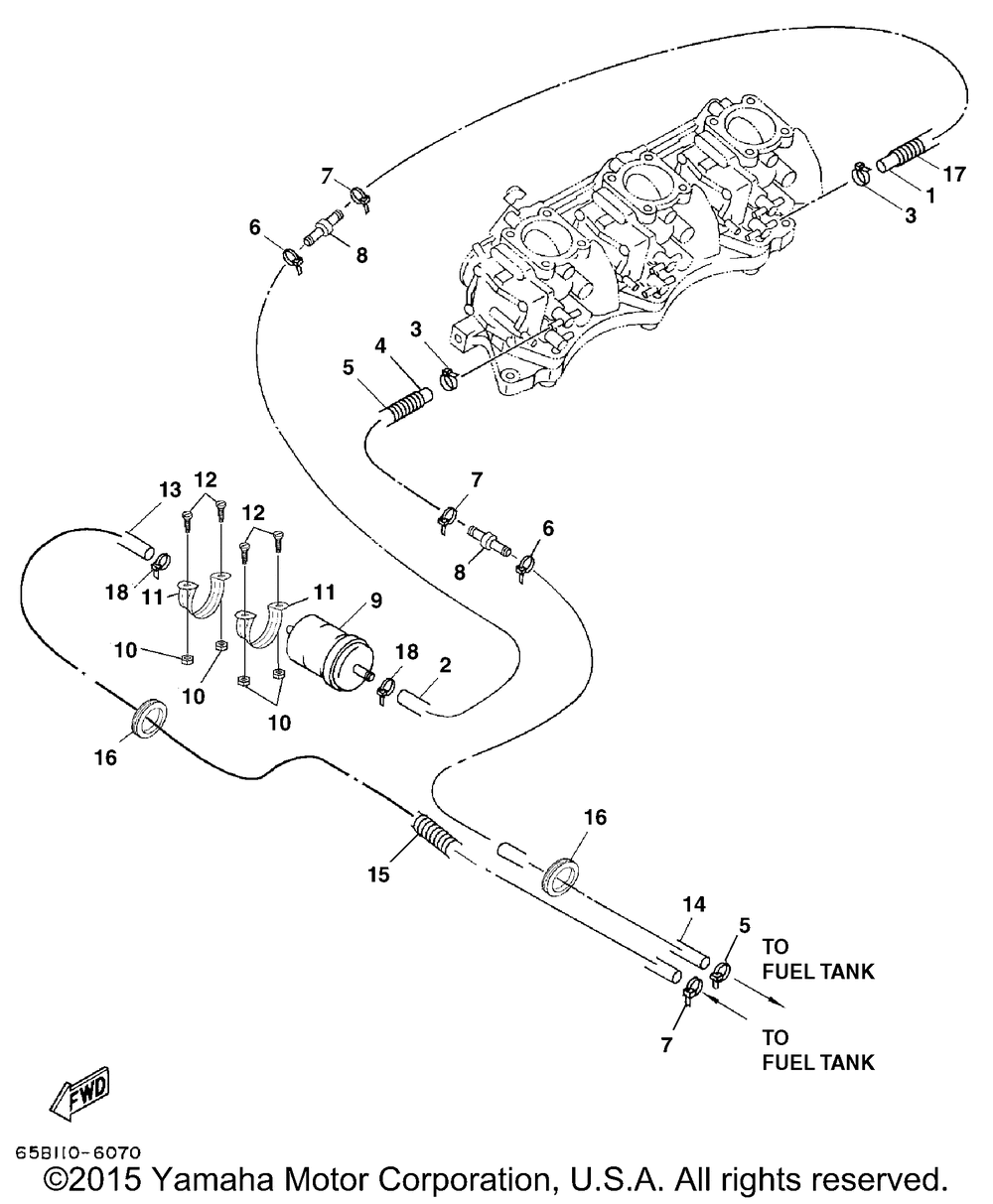

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE | 1 | |
| 2 | HOSE 1 | 1 | |
| 3 | HOSE CLAMP ASSY | 2 | |
| 4 | HOSE | 1 | |
| 5 | HOSE YMUS | 1 | |
| 6 | BAND HOSE (14.5 MM) | 1 | |
| 7 | CLAMP EAR 17 | 3 | |
| 8 | PIPE JOINT (1/4") (14) | 2 | |
| 9 | FILTER (FUEL) | 1 | |
| 11 | HOLDER FILTER | 2 | |
| 12 | SCREW tahos_10-24X1/2 | 2 | |
| 13 | HOSE 2 | 1 | |
| 14 | HOSE 1 | 1 | |
| 15 | PROTECTOR HOSE (16") | 1 | |
| 16 | TRIM (14") | 2 | |
| 17 | HOSE | 1 | |
| 18 | HOSE CLAMP ASSY | 2 |
