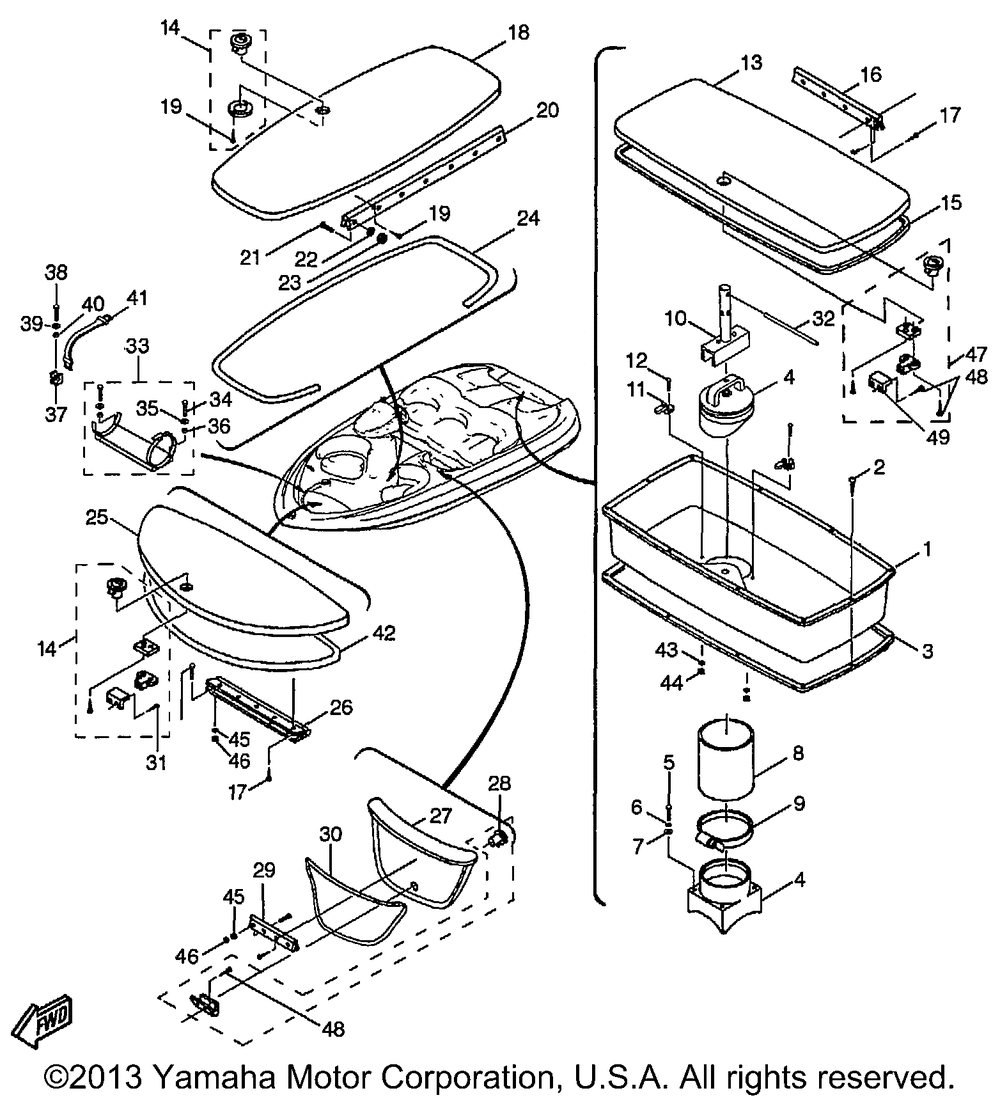

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TRAY CLEAN-OUT SING | 1 | |
| 2 | SCREW tahos_10X1 1/4 | 12 | |
| 3 | SEAL 2 TRAY | 1 | |
| 4 | PLUG CLEAN OUT | 1 | |
| 5 | BOLT | 4 | |
| 6 | WASHERSPRING | 4 | |
| 7 | WASHER | 4 | |
| 8 | HOSE 1 | 1 | |
| 9 | BAND HOSE 150 | 1 | |
| 10 | HANDLE MANHL TOOL | 1 | |
| 11 | BRACKET CLEANOUT | 2 | |
| 12 | SCREW 10-24 X 1 | 2 | |
| 13 | HATCH STERN | 1 | |
| 14 | LOCK ASSY (SKI LOCKER LID) | 2 | |
| 15 | SEALHATCH | 1 | |
| 16 | HINGE 3 (PUMP CLEAN-OUT) | 1 | |
| 17 | SCREW TAPPING | 6 | |
| 18 | HATCHSKI LOCKER | 1 | |
| 19 | SCREW TAPPING | 16 | |
| 20 | HINGE 4STERN HATCH (SKI LOCKER LID) | 1 | |
| 21 | SCREW FLAT HD.(9249) | 8 | |
| 22 | WASHER tahos_8 FLAT (10 per pack) | 6 | |
| 23 | NUT 8-32 NYLOX | 6 | |
| 24 | PART NUMBER ERROR | 1 | |
| 25 | HATCH BOW | 1 | |
| 26 | HINGE 1 | 1 | |
| 27 | HATCH ICE BOX (RED) | 1 | |
| 28 | HATCH LOCK ASSY 1 | 1 | |
| 29 | HINGE 2 | 1 | |
| 30 | SEALICE BOX HATCH | 1 | |
| 31 | SCREW tahos_8 X 3/4" (5 per pack) | 8 | |
| 32 | CROSS BAR MANHOLE T | 2 | |
| 33 | HOLDER FIRE EXTING | 4 | |
| 35 | WASHER tahos_10 FLAT (5 per pack) | 2 | |
| 36 | NUT 10-24 NYLOX | 2 | |
| 37 | HOOK A | 2 | |
| 38 | SCREW 1/4-20 X 1 | 2 | |
| 39 | WASHER 1/4" FLAT | 2 | |
| 40 | NUT 1/4-20 | 2 | |
| 42 | SEALBOW LOCKER | 1 | |
| 45 | WASHER PLAIN | 4 | |
| 46 | NUTNYLON LOCK | 8 | |
| 47 | LOCK ASSY | 1 | |
| 49 | LATCH KEEPER | 1 |
